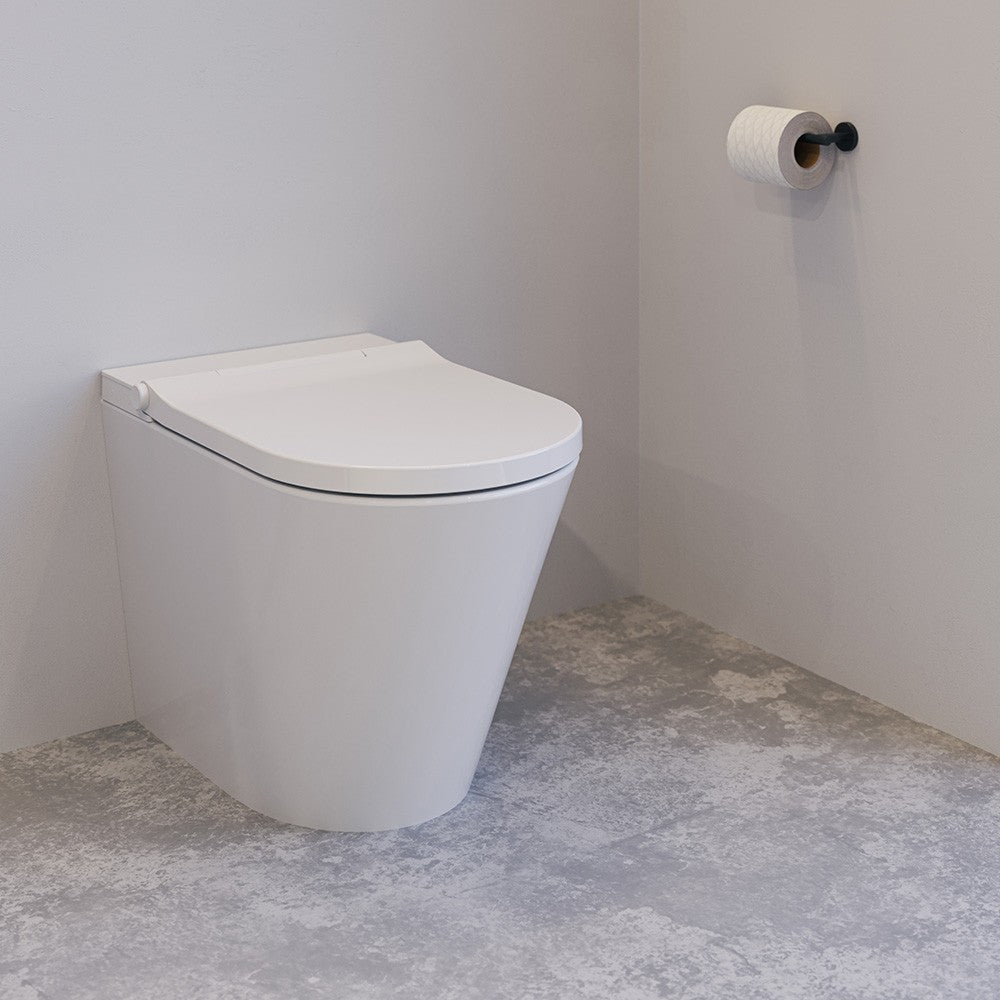

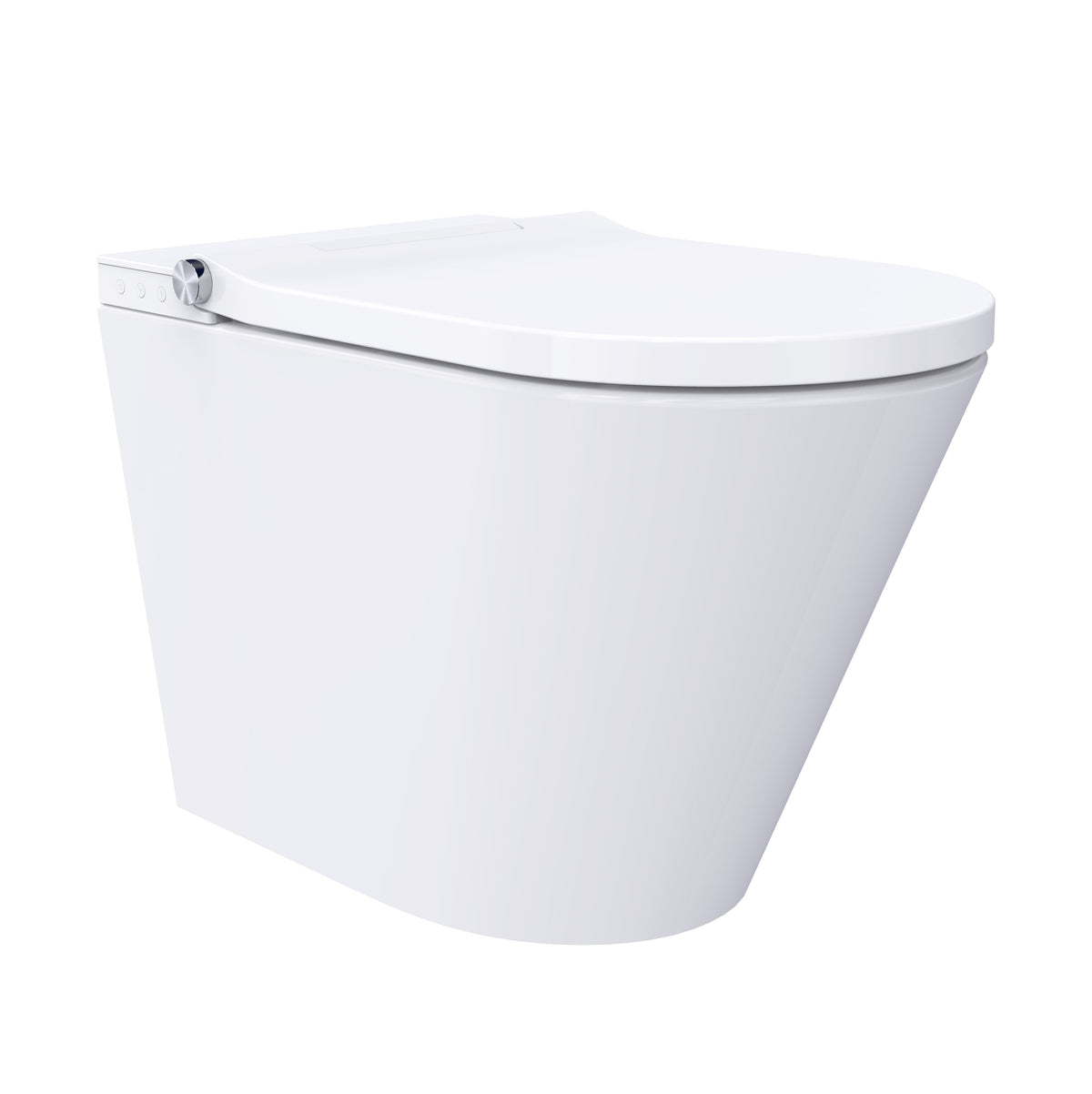

Arcisan Neion Plus NE041200 Wall Faced Intelligent Toilet Pan with Remote

• Front and rear wash: comfort rear wash and female wash functions with an adjustable nozzle position.
• Adjustable water temperature and pressure: instant warm water with temperature and flow control.
• Heated seat: seat temperature is adjustable for year-round comfort.
• Drying function: warm air drying with air temperature control.
• Pre-wetting of the bowl: wets the pan before use to help keep the ceramic surface cleaner.

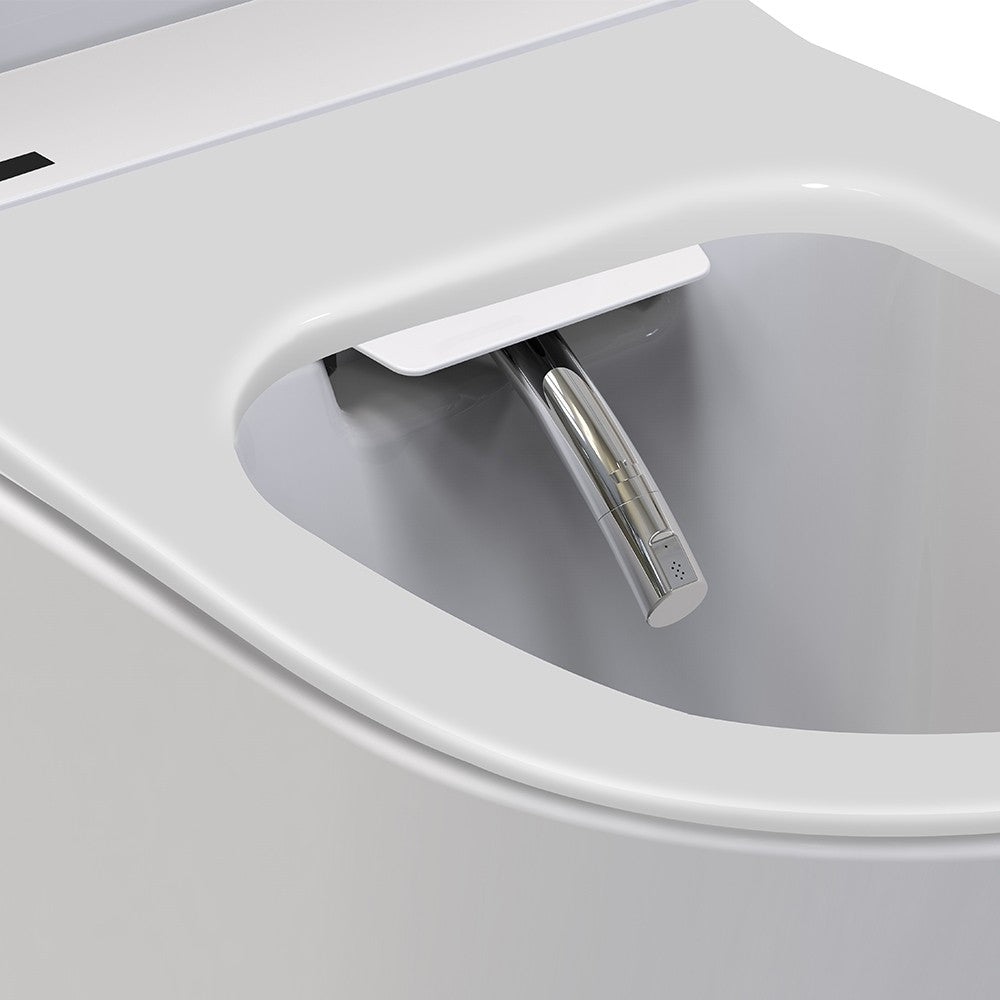

• Self-cleaning nozzle: the removable nozzle cleans itself before and after every use, and the system runs a self-cleaning mode if left in standby for an extended period.
• Deodoriser and LED ambient light: built-in deodorisation and a night light for low-light visibility.

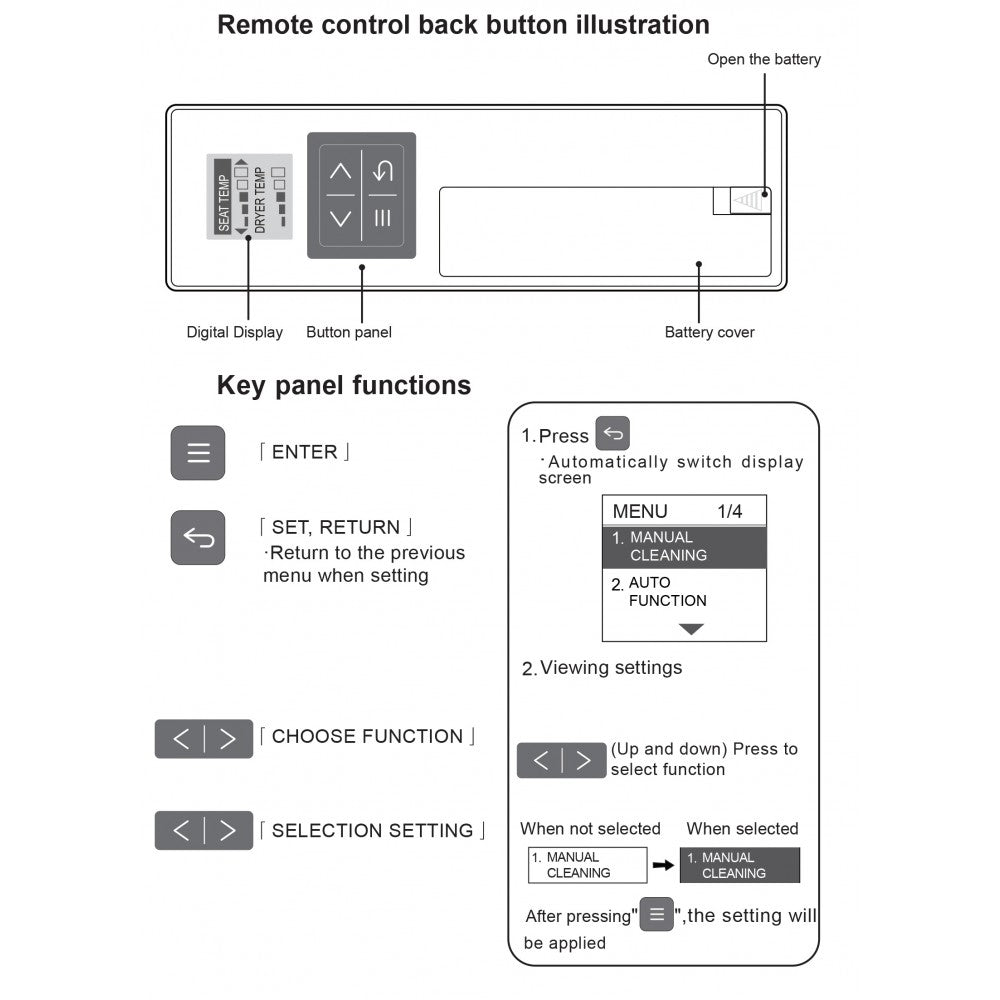

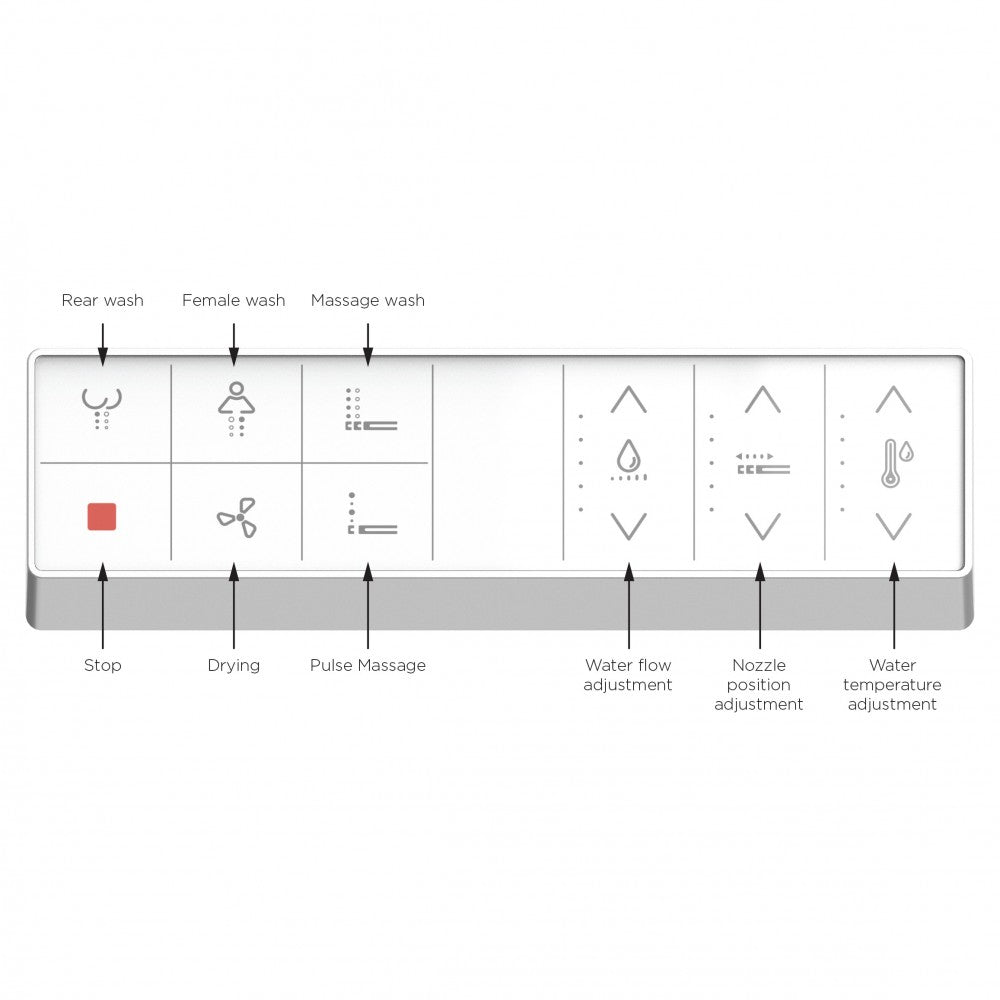

• Remote control and status panel: remote control operation with a backlit glass status panel.
• Simplified installation: RPZ valve not required.

• Product type: Intelligent toilet pan
• Brand: Arcisan
• Collection: Neion Plus
• Material: Ceramic
• Style: Wall faced, rimless pan
• Power: 1250 W
• Rated voltage: AC 220–240 V, 50–60 Hz
• Water proof rating: IPX4
• WELS rating: 4 stars, 4.5/3 L
• WELS licence / registration: 1483 / L07620

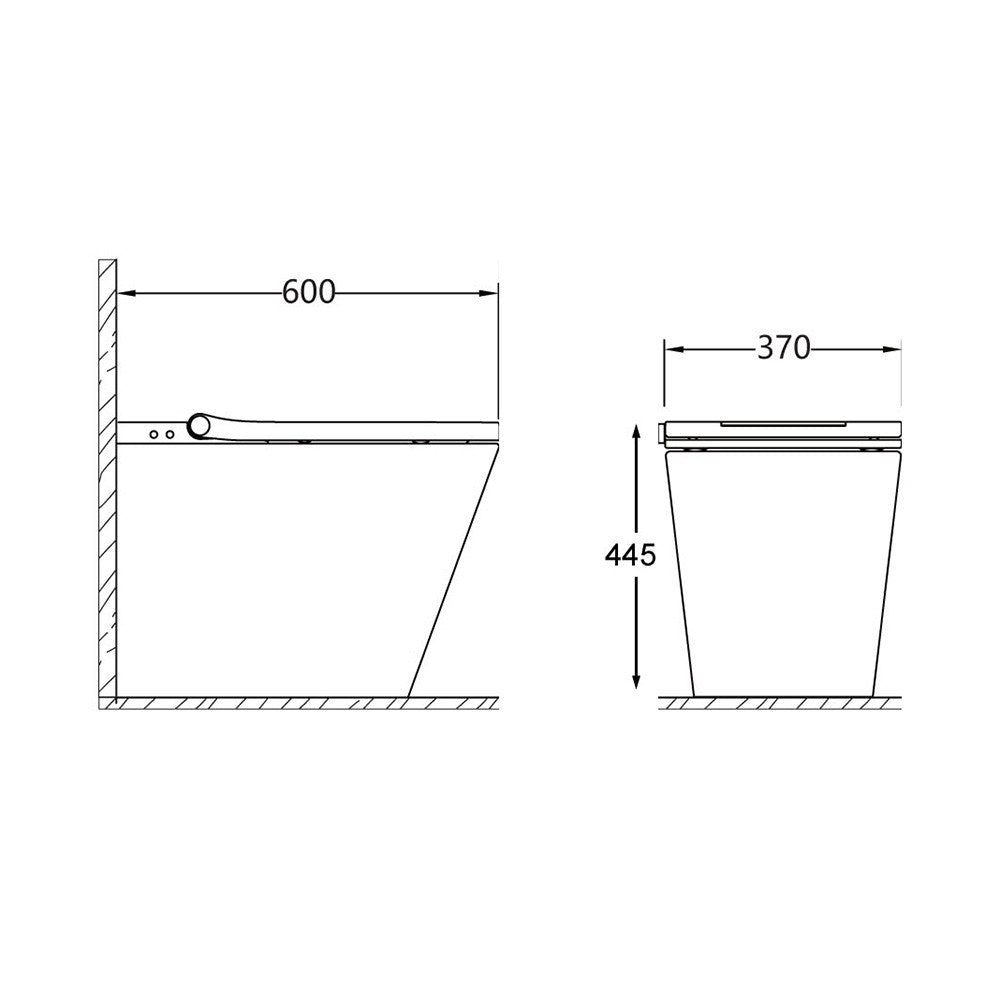

• Set-out: S-trap 90 mm; P-trap 180 mm
• Inlet height: 340 mm
• Outlet height: 180 mm
• Compliance: complies with WMTS-051; integral break tank with air gap complying with AS 2845.2
• Cistern: requires AR04430 Arcisan in-wall slim concealed cistern, ordered separately

• Cistern: requires the Arcisan in-wall slim concealed cistern (AR04430), ordered separately.
• Installer requirement: must be installed by a certified tradesperson, following the manufacturer's installation guide for all correct installation criteria.
• Water and power connection: water inlet is a G1/2" M elbow and an electrical point is required; refer to the installation guide for positions. The stop tap must be open and water connected before use.
• Location: do not install in areas of high humidity or where water damage could occur, and do not spill or spray water or detergent on the product.
• Frost protection: if the water is prone to freezing, increase the room temperature, or close the inlet stop tap and drain the water inlet hose.
• Remote control batteries: keep away from heat and direct sun, and do not short the remote's positive and negative terminals.

Warranty coverage

Arcisan is an Australian-designed and engineered brand distributed by Streamline Products, backed by a comprehensive manufacturer's warranty across their range of tapware, showers, basins, toilets, accessories, and heated towel rails.

Warranty periods confirmed from product specifications. Contact Streamline Products for full warranty details on specific products.

• Tapware — ceramic disc cartridges: 15 years — Replacement parts
• Toilet suites (Synergii range) — soft close seat mechanism: 10 years — Replacement parts
• Toilet suites (Synergii range) — ceramic pan & cistern: 5 years — Replacement parts, 1 year labour
• Basins (fireclay & ceramic): 5 years — Replacement product
• Bathroom accessories (chrome finish): 5 years — Replacement parts or product
• Heated towel rails: Refer to individual product specification for warranty period

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Replacement of defective parts within the applicable warranty period

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Use of abrasive cleaners, harsh chemicals, or unsuitable cleaning products
• Normal wear and tear or general surface deterioration
• Damage from excess water pressure or inadequate plumbing preparation
• Repairs or modifications carried out by unauthorised parties
• Ex-display products

Conditions

• Tapware, basins, and toilets must be installed by a licensed plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Water pressure must comply with Australian Standards AS/NZS 3500
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

Claims should be directed through the original place of purchase or by contacting Streamline Products on 1300 735 352 or at customerservice@streamlineproducts.com.au. Please have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The Neion Plus complies with WMTS-051 and its bidet seat has an integral break tank with air gap complying with AS 2845.2, meeting the high-hazard backflow prevention requirements of AS/NZS 3500.1 without an RPZ valve. The same pan is also available as a package with the Arcisan in-wall cistern (NE041025) and in a wall hung version.

The remote control pairs with the toilet by code matching. If matching is unsuccessful, the indicator turns off after 30 seconds and the process can be repeated. Do not block the drying outlet, and do not clean the product with gasoline, benzene, paint thinner or a nylon brush.

If the seat does not respond, check that the inlet stop tap or strainer is not closed or blocked by dirt, and that the user is within the sensing position. If the indicator light keeps blinking or stays off after power is restored, or there are any fumes or abnormal sounds, turn the power off at the main switchboard and contact customer service.

• Intelligent toilet pan with integrated bidet seat
• Remote control

• SPECIFICATION SHEET
• INSTALLATION GUIDE
• OPERATING GUIDE
• REMOTE USER INSTRUCTION
