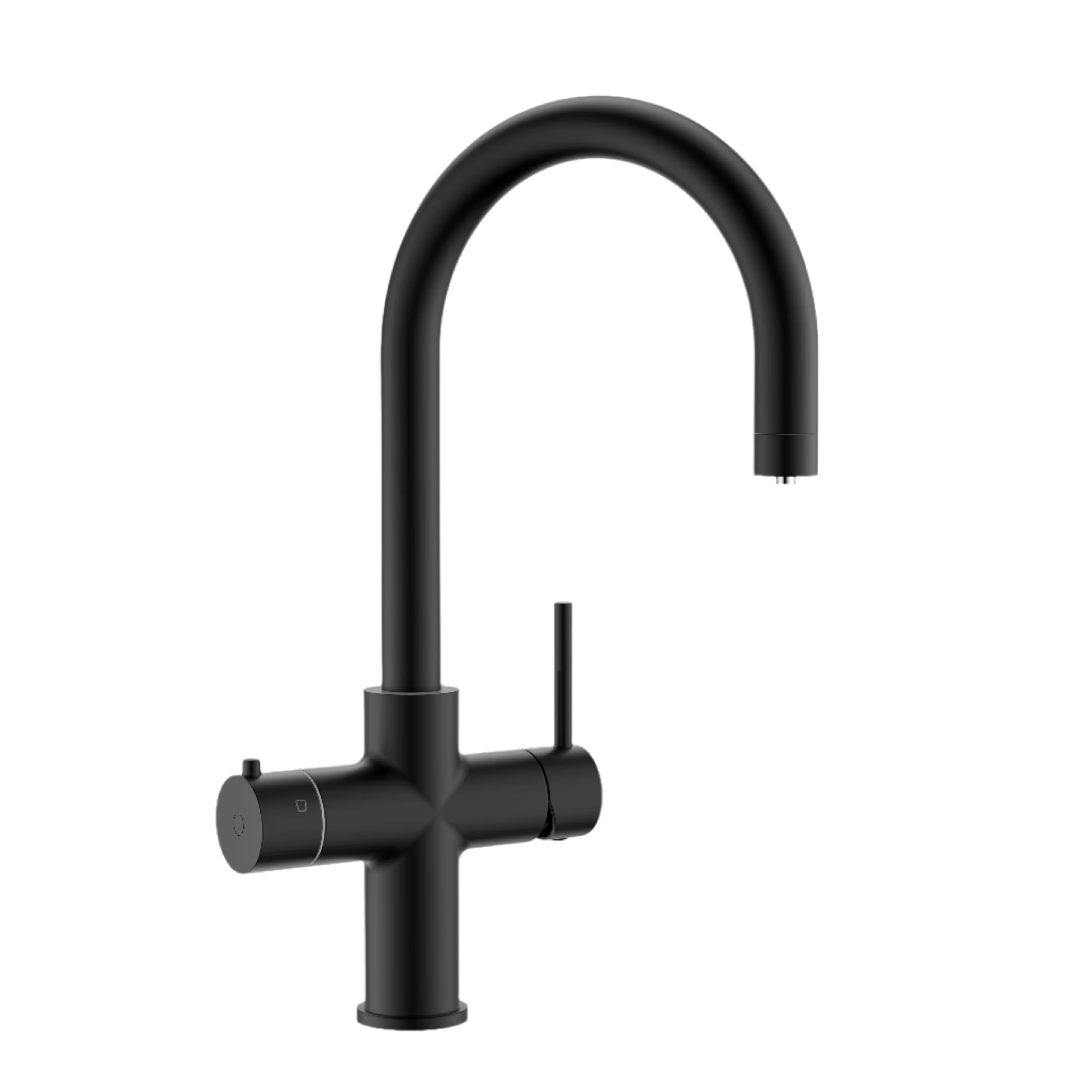

Alia AG-CS-R41 4-in-1 Instant Boiling and Chilled Filtered Water Tap

• 4-in-1 functionality: standard hot, standard cold, filtered boiling, and filtered chilled water delivery from one tap.
• Instant boiling water: filtered boiling water delivery adjustable up to 98°C.
• Filtered chilled water: chilled filtered water output between 4°C and 12°C.
• Integrated filtration system: multi-stage filtration incorporating carbon and membrane filtration.

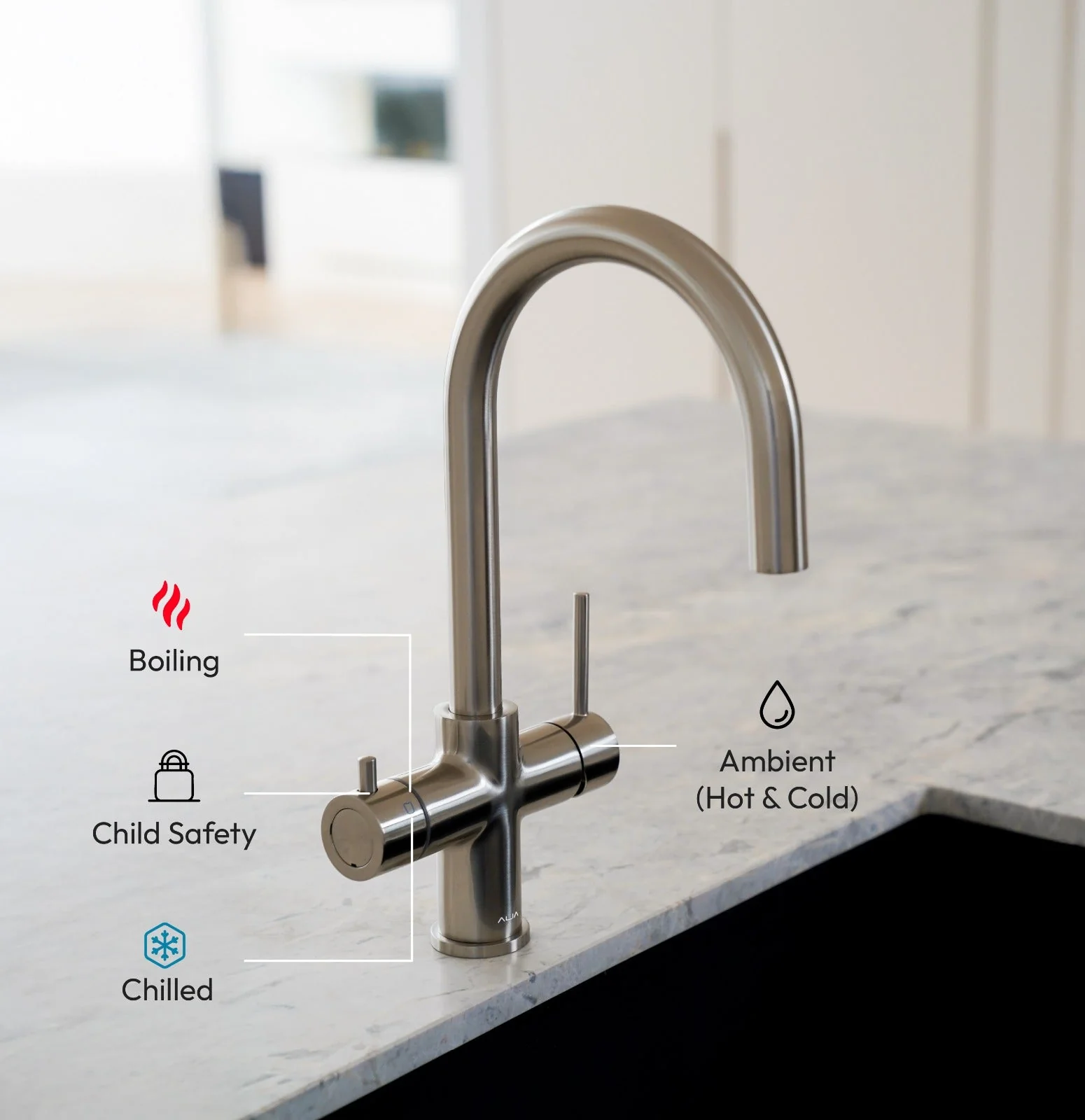

• Child safety protection: dedicated boiling water safety lock mechanism.
• Mechanical operation: mechanical valve controls for hot, cold, boiling, and chilled functions.

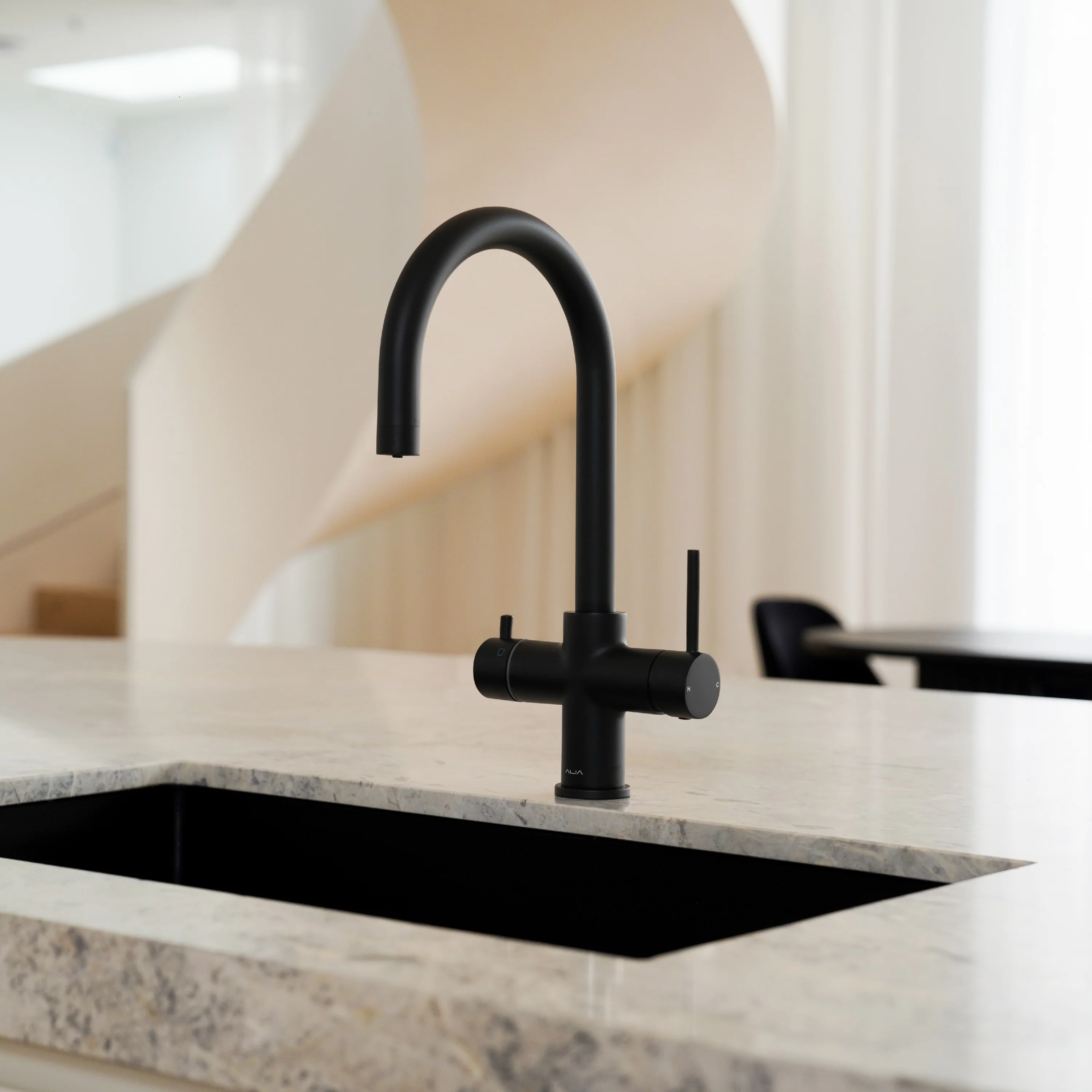

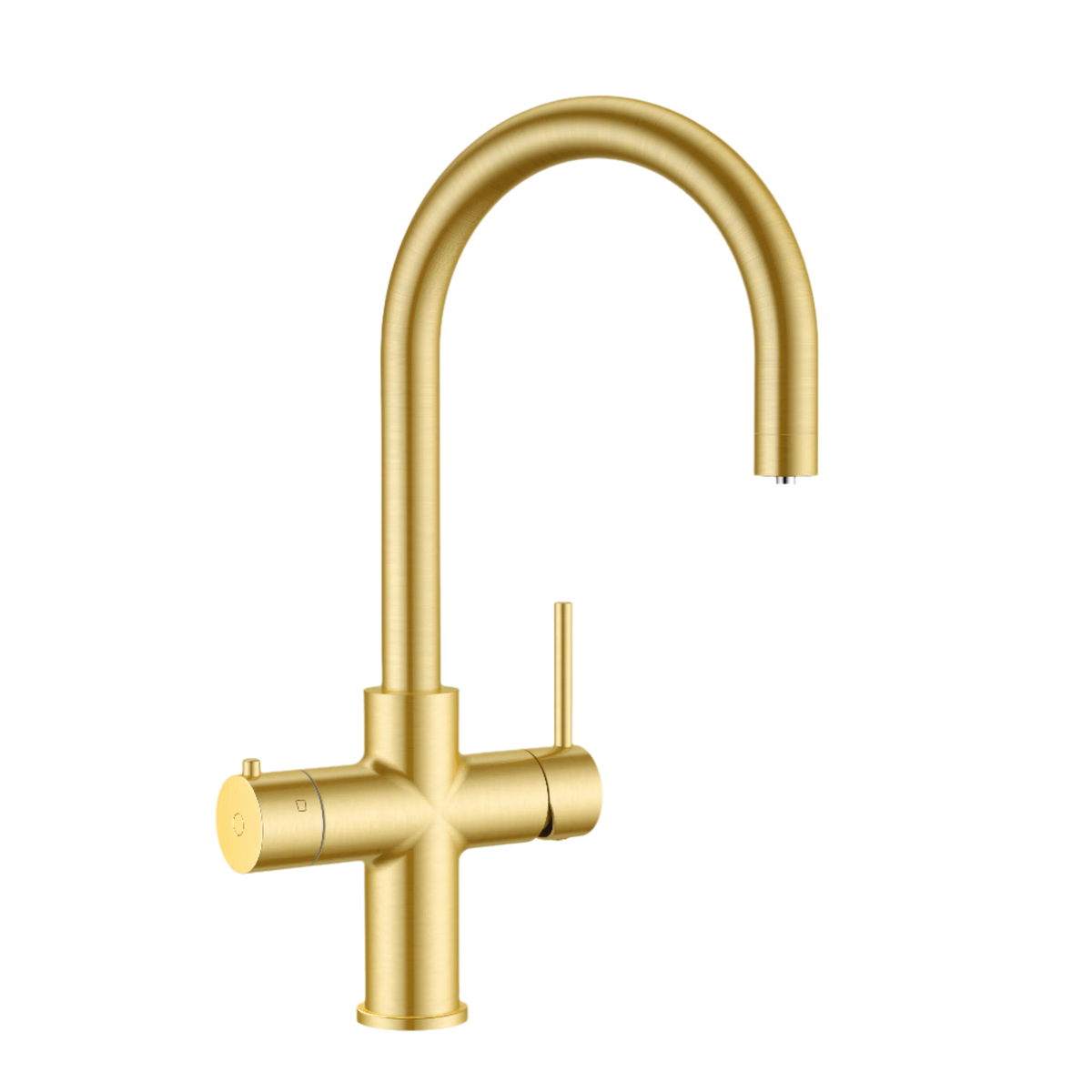

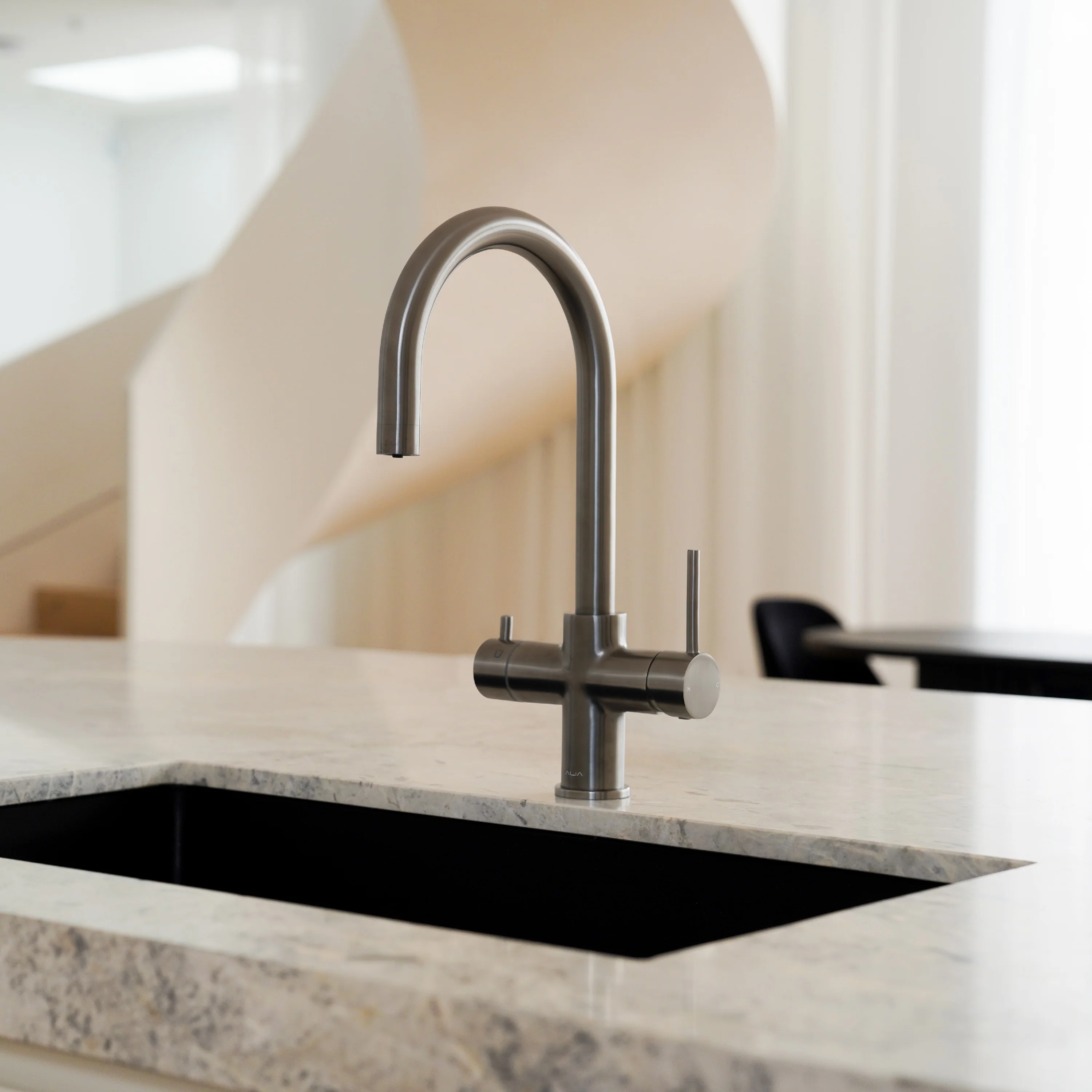

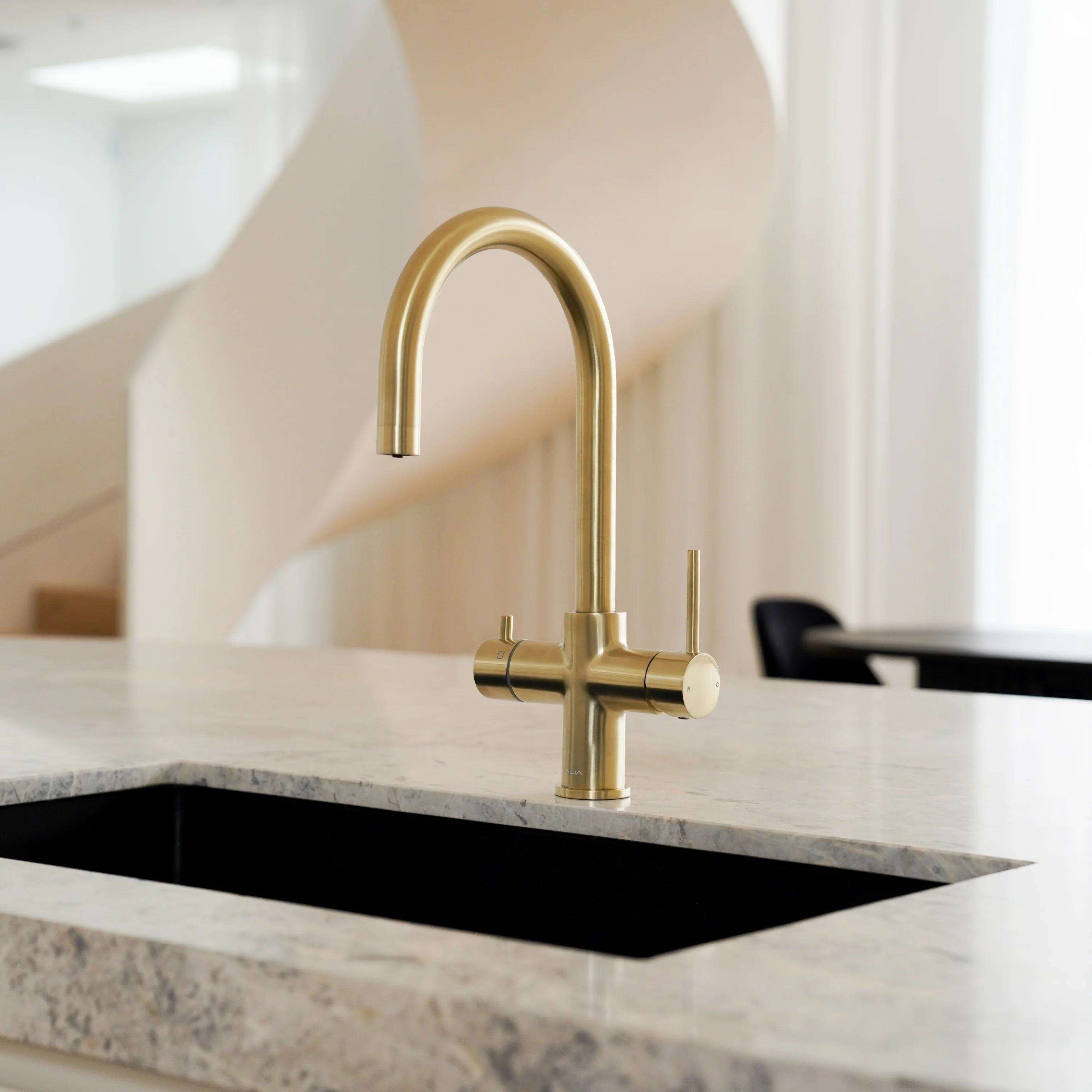

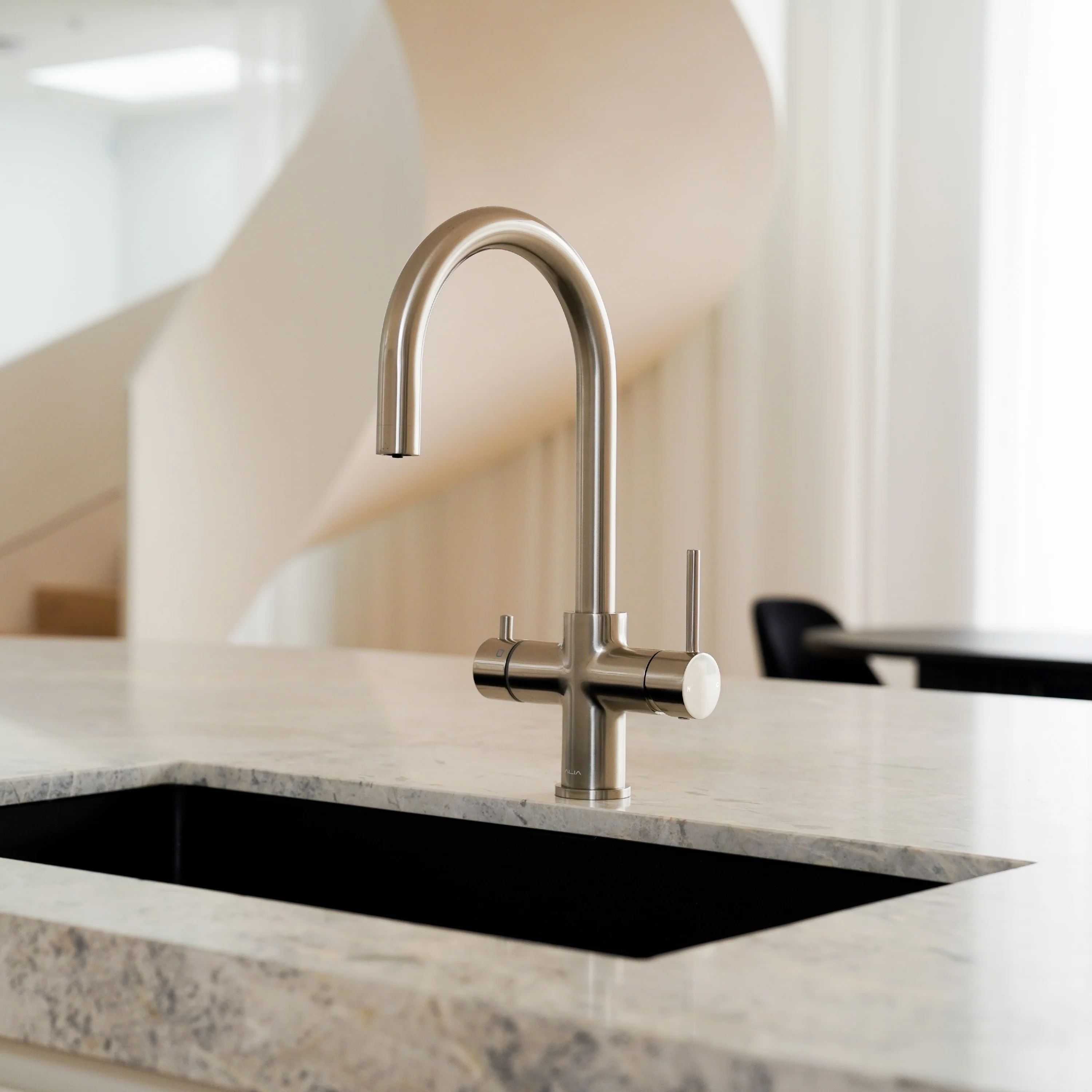

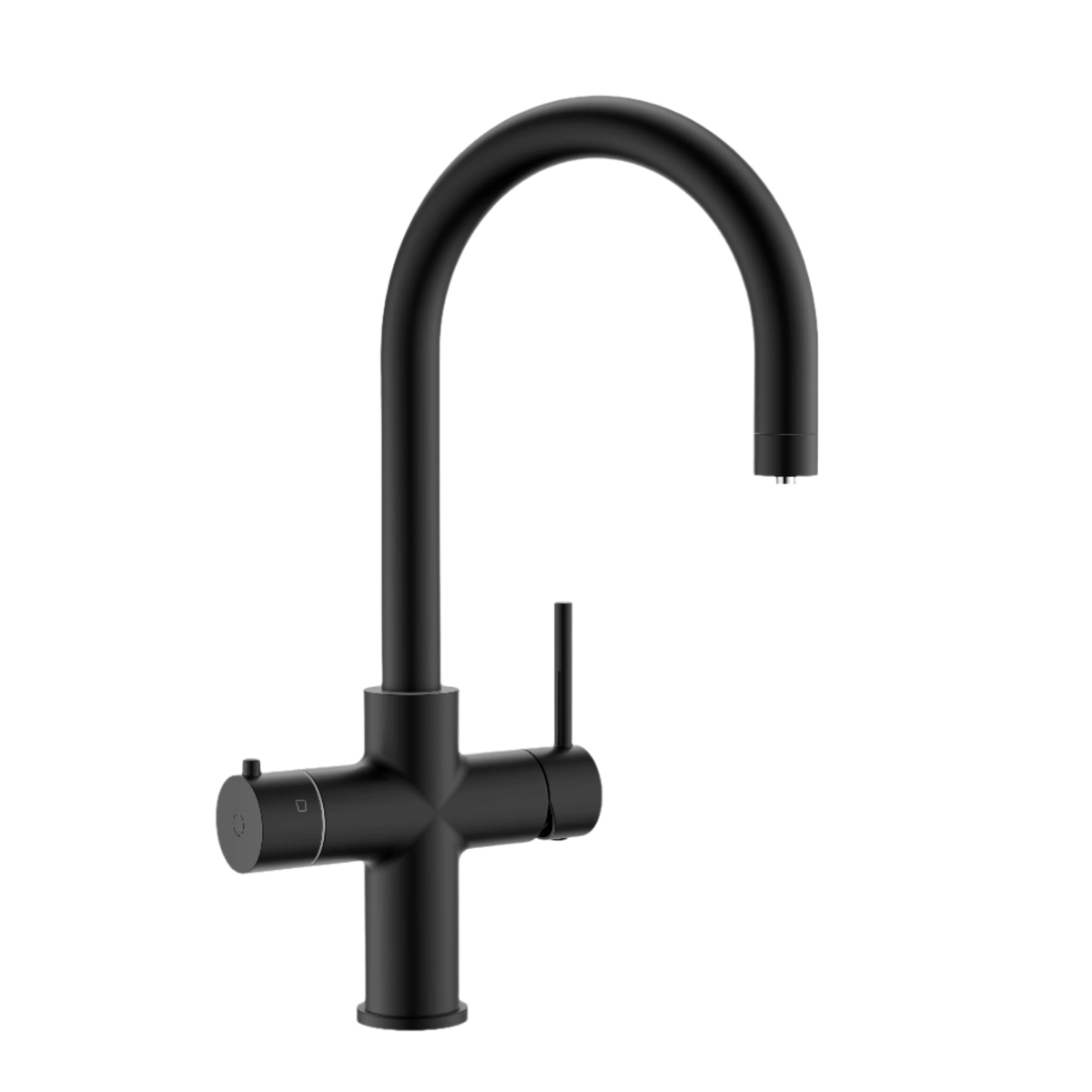

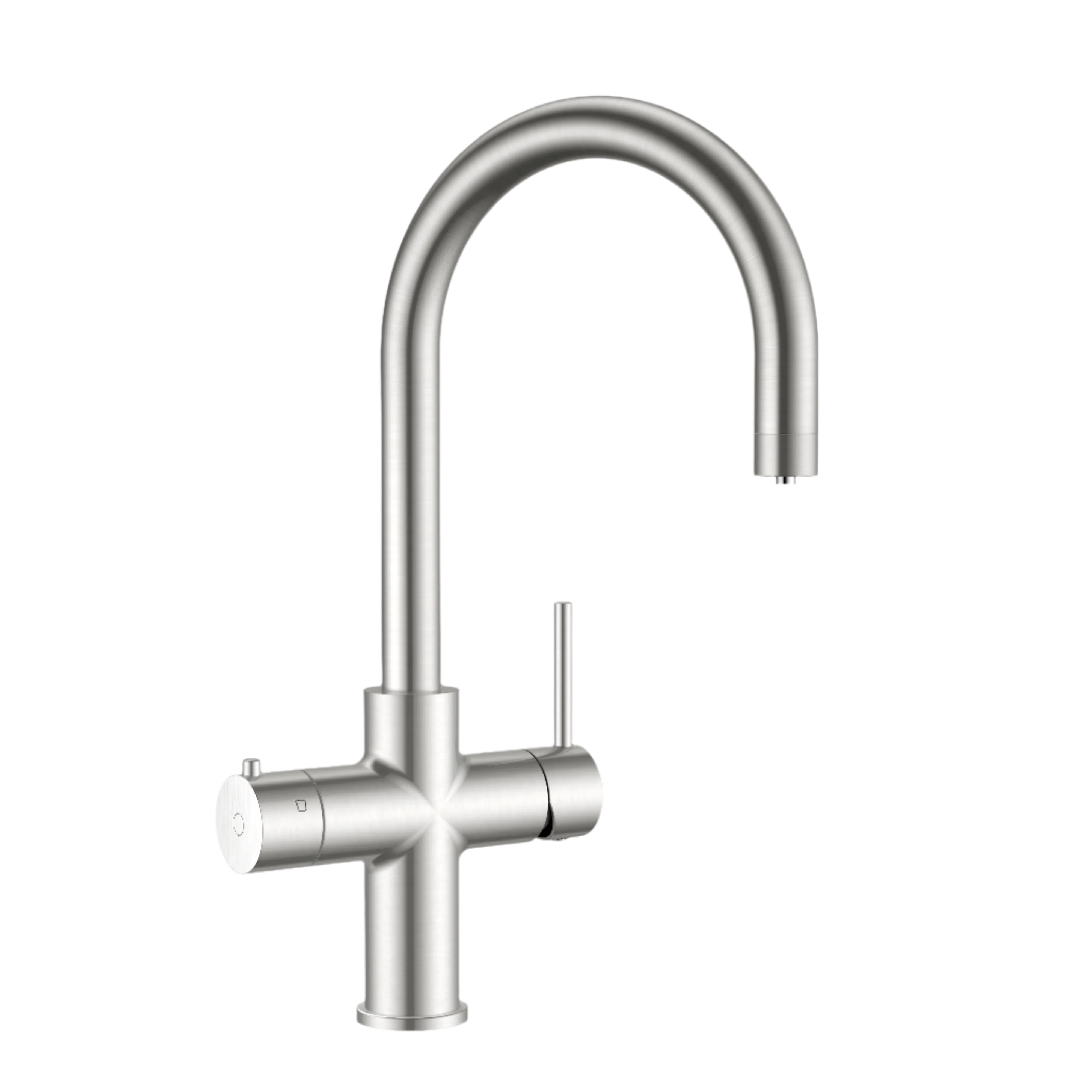

• Architectural finish range: available in Brushed Nickel, Gunmetal Grey, Matte Black, and Brushed Gold.
• Compact under-sink system: designed to reduce benchtop appliance clutter.
• Low-noise operation: refrigeration system operating noise below 45 dB.
• Australian compliance: WaterMark certified to WMK26897 and compliant with AS 3718.

• Tap configuration: 4-in-1 mixer and filtered water tap
• Application: residential / commercial / hospitality / office
• Tap material: stainless steel
• Cartridge type: 35mm ceramic cartridge
• Filtered boiling water temperature: 35°C - 98°C
• Filtered chilled water temperature: 4°C - 12°C
• Filtration system: carbon and membrane filtration
• Certification: WaterMark WMK26897
• Compliance standard: AS 3718
• Refrigeration system voltage: 220-240 V / 50 Hz
• Refrigeration system power consumption: 130 W
• Operating current: 0.8 A
• Tank capacity: 2 L
• Water inlet pressure: 150 - 300 kPa
• Noise level: <45 dB
• Refrigerant type: R600a
• Connection type: 1/4" quick-connect tubing

• Installation type: under-sink installation
• Water connection: 1/4" quick-connect plumbing connection
• Electrical requirement: dedicated 220-240 V power connection
• Power outlet requirement: standard 10A outlet required
• Ventilation clearance: approximately 200 mm clearance recommended around cooling unit
• Installation recommendation: licensed plumber recommended for installation
• Application suitability: suitable for kitchen, office, and hospitality installations

Warranty Coverage

ALIA Global products are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Proof of purchase is required for all warranty claims.

What’s Covered

• Manufacturing defects in materials and workmanship
• Repair, replacement, or equivalent product supply at ALIA Global’s discretion

What’s Not Covered

The warranty does not cover:

• Damage caused by misuse or improper installation
• Accidental or consequential damage
• General wear and tear
• Issues caused by incorrect use or maintenance

ALIA Global is not liable for incidental or consequential damages arising from the use of the product.

Conditions

• Warranty claims must include proof of purchase
• Customers may be asked to provide photos or videos of the issue
• Warranty applies in accordance with Australian Consumer Law

Claims Process

To lodge a warranty claim, contact ALIA Global Pty Ltd.

Please include:

• Proof of purchase
• Description of the issue
• Photos or videos if applicable
• Your contact details

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The filtration system applies only to the boiling and chilled water functions. Standard hot and cold mixer water bypasses the filtration circuit.

During initial commissioning, the chilled water system should be flushed for approximately five minutes before consumption. Filter replacement intervals will vary depending on local water quality and usage volume, with replacement generally recommended every 8-12 months.

The refrigeration system uses R600a refrigerant and requires adequate airflow clearance around the under-sink cooling unit to maintain performance and operating efficiency.

• 4-in-1 mixer tap assembly
• Under-sink boiling water unit
• Under-sink chilled water unit
• Filtration system
• Connection tubing
• Installation components
• User and installation manuals
