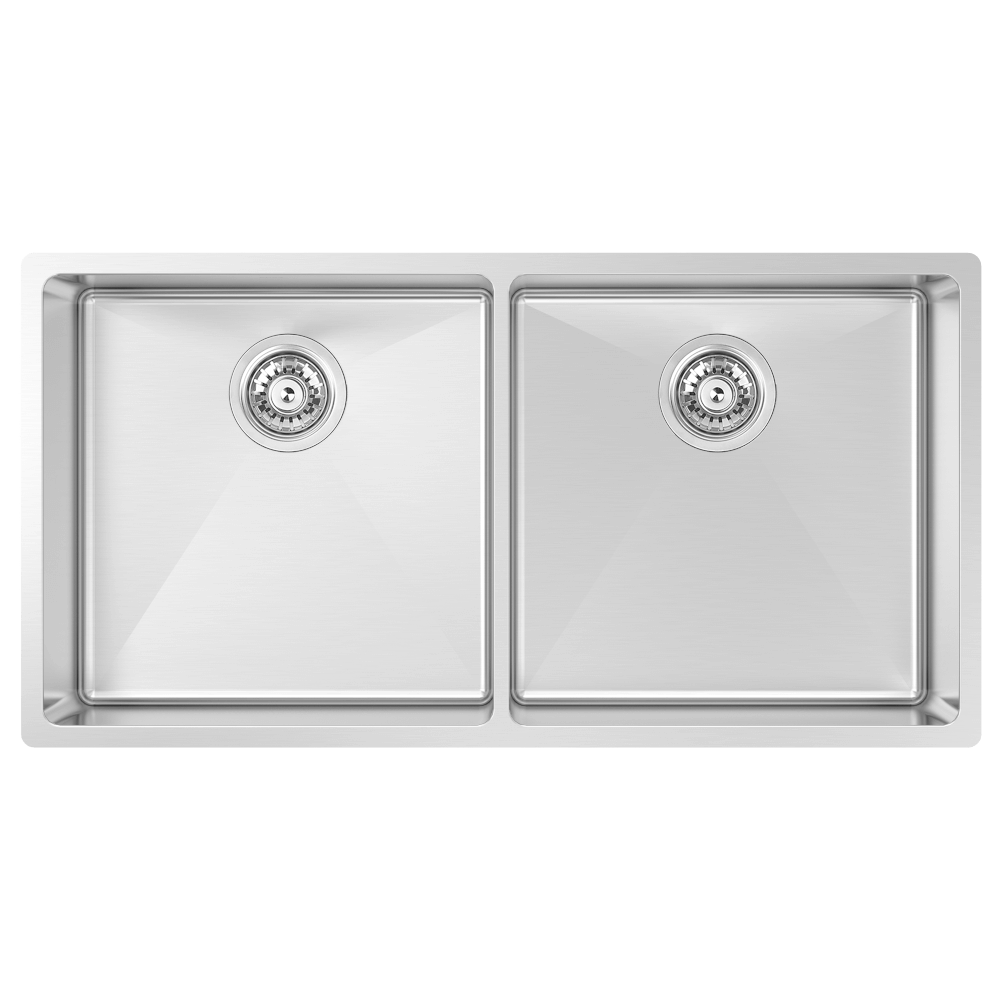

Abey FRA400D Alfresco 400 Double Bowl Sink

• Marine-grade 316 construction: made from SUS316 stainless steel with a microbrush finish for strong resistance to corrosion in outdoor and coastal settings.
• Double bowl layout: two 400 x 400 x 210mm bowls, each with a 33.5 litre capacity, for washing, rinsing and food preparation at the same time.
• Overall size 855 x 440 x 210mm: a wide double bowl footprint suited to a full-length alfresco bench.
• 15mm bowl radius: tight but cleanable corners keep a modern look while making the bowls easier to wipe out.
• Three installation methods: suitable for topmount, flushmount or undermount installation, with inset and undermount clips supplied.
• Two basket wastes included: 2 x 90mm (2 inch) basket wastes are supplied, one for each bowl.
• Waste disposal compatible: both 90mm waste holes are compatible with a waste disposal unit.
• Sound deadening pads: factory-fitted pads help reduce the noise of running water and cookware.
• No tap hole (NTH): a clean deck without pre-cut tap holes, so you can choose a bench-mounted mixer or a wall-mounted tap.
• Designed to pair with Abey 316 tapware: the KTA037-316-BR mixer and the DTA18-316 drainer tray are listed by Abey as compatible accessories.

• Product type: Kitchen sink
• Bowl configuration: Double bowl
• Material: SUS316 marine-grade stainless steel
• Finish: Microbrush stainless steel
• Material thickness: 1.2mm
• Collection: Alfresco
• Design style: Alfresco Outdoor
• Bowl radius: 15mm
• Water capacity: 33.5 litres per bowl
• Overflow: No
• Drainer: No
• Tap holes: NTH (no tap hole)
• Waste outlets: 2 x 90mm round
• Waste fittings: 2 x 90mm (2 inch) basket wastes included
• Waste disposal compatible: Yes
• Sound deadening pads: Yes
• Mounting: Topmount, flushmount or undermount
• Fixings: Inset and undermount clips supplied
• Minimum cabinet size: 950mm
• Gross weight: 12.3kg
• Packaging: Individual carton in eco packaging
• Made in: Asia
• Compatible accessories: DTA18-316 drainer tray, KTA037-316-BR kitchen mixer

• Installation type: topmount, flushmount or undermount, with inset and undermount clips supplied.
• Minimum cabinet: a 950mm cabinet is required for this sink.
• Cut-out: paper or cardboard templates, where supplied, are a guide only. Using the actual sink gives a more accurate cut-out.
• Undermount fixing: clean the underside of the benchtop and the top flange of the sink with methylated spirits, apply a bead of silicone to the top edge of the bowl, position the sink, then fit the bridge plates and tighten the nylon nuts. Place the plates and bolts 10mm from the sink edge and use stone adhesive to attach the bolts to the underside of the benchtop, allowing the adhesive to cure fully.
• Clip strength: each clip is designed to support more than 30kg when used with a stone or stone-like benchtop.
• Do not use adhesive on the sink: the warranty is void if epoxy or adhesive is used to secure the sink to the bench.
• Professional installation: Abey recommends that undermount sinks and routering of solid surface material are done by a professional installer, and the warranty requires installation by a licensed plumber, cabinet maker or stonemason.

Warranty coverage

Abey Australia products are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across a wide range of bathroom, kitchen, and laundry products.

Bathroom accessories

• 5 years — Replacement faulty products and parts

Basin & toilet (ceramic)

• 10 years — Replacement faulty product
• 1 year — Labour and replacement parts

Basin & toilet (stainless steel)

• 25 years — Replacement faulty product
• 1 year — Labour and replacement parts

Showers

• 10 years — Replacement faulty products and parts
• 1 year — Labour

Tapware

• 20 years — Replacement cartridge
• 10 years — Replacement faulty products and parts
• 1 year — Labour

Sinkware

• Lifetime — Replacement product, original purchaser only

Kitchen accessories

• 1 year — Replacement product

Finishes

• 10 years — PVD (showers)
• 5 years — Galvanic/electroplated (tapware)
• 2 years — Powder coat (sinks), manufacturing defects only

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Replacement of defective parts within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Use of abrasive cleaners, steel wool, or harsh chemical agents
• Normal wear and tear or general surface deterioration
• Scratching, denting, discolouration, or finish damage from daily use
• Repairs or modifications carried out by unauthorised parties
• Ex-display products

Conditions

• Basins, baths, showers, tapware, and toilets must be installed by a licensed plumber
• Sinks must be installed by a licensed plumber, cabinet maker, or stonemason
• Products must be used and maintained in accordance with manufacturer instructions
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

To make a warranty claim, please contact Abey Australia directly and have your proof of purchase ready. Claims should be directed through the original place of purchase where possible.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Abey designed the Alfresco range for the places a normal kitchen sink is not made for: outdoor kitchens, covered patios and coastal homes. Choosing SUS316 over standard 304 stainless steel is the single most useful decision for these spaces, because the added molybdenum in 316 stainless steel gives much better protection against the pitting and surface rust that salt air can cause.

The FRA400D has no tap hole, which gives you freedom to choose the tap that suits your bench layout. If you would like the sink with a mixer and drainer tray already matched, ask us about the FRA400DT15 pack, which includes the sink, a DTA18-316 drain tray and the KTA037-316-BR mixer.

• Sink: 1 x Abey FRA400D Alfresco double bowl sink in SUS316 stainless steel.
• Basket wastes: 2 x 90mm (2 inch) basket wastes.
• Clips: inset and undermount clips for installation.
• Sound deadening pads: factory fitted to the underside of the bowls.
