Smart WM700EW Wall Mounted Foldaway Electric BBQ With Two Ceramic Glass Cooking Plates

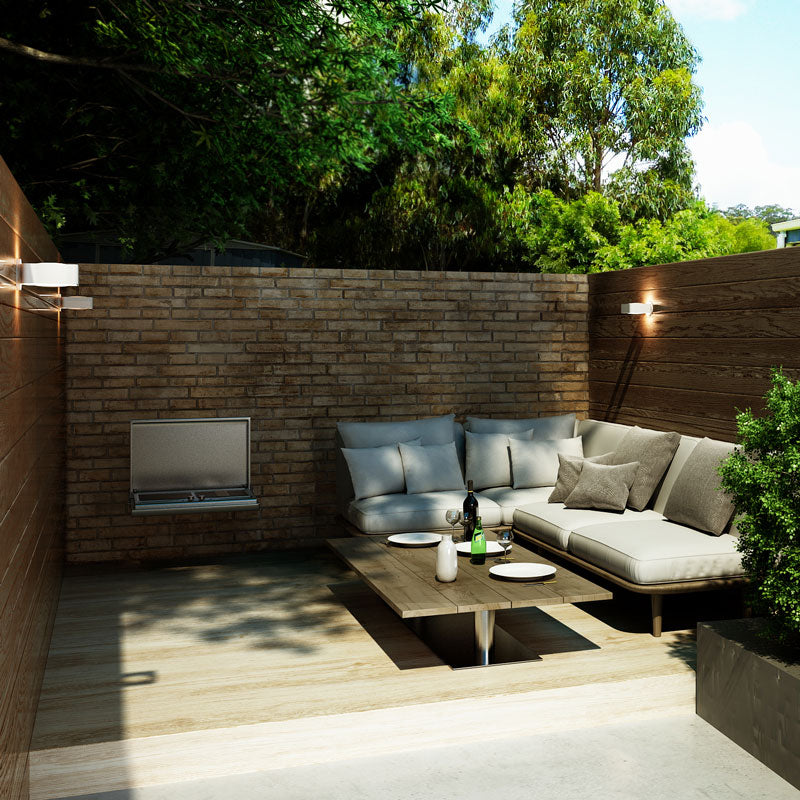

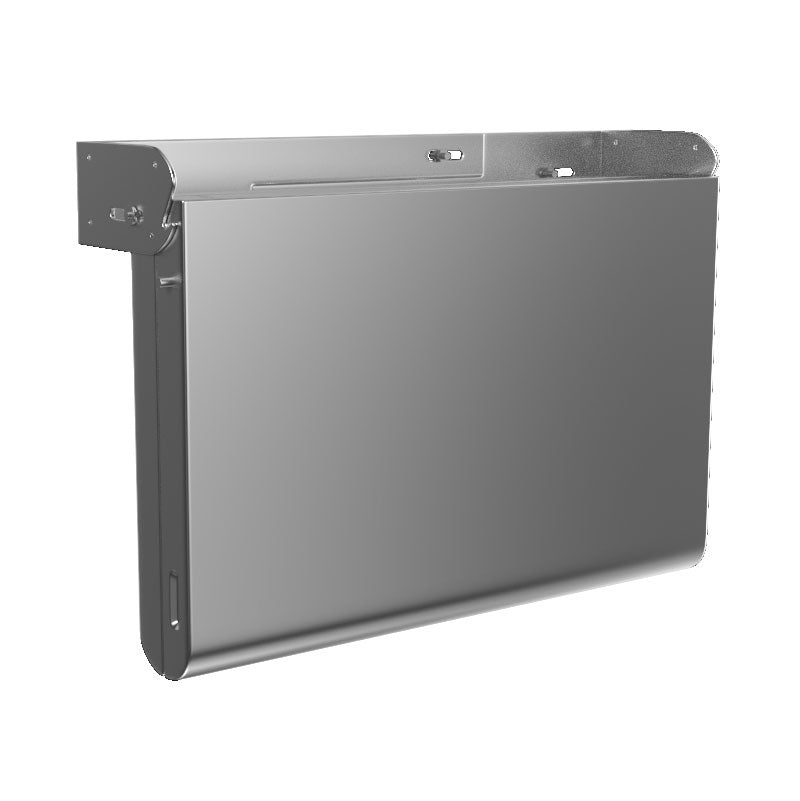

• Foldaway wall mount design: folds flat against the wall (775mm x 150mm x 525mm folded) to free up space when you are not cooking, and opens to a 775mm x 530mm x 530mm cooking position.
• Electric, no gas required: runs from a standard 10 amp power point, so there are no gas bottles to replace or store, which are often not allowed on inner-city balconies.

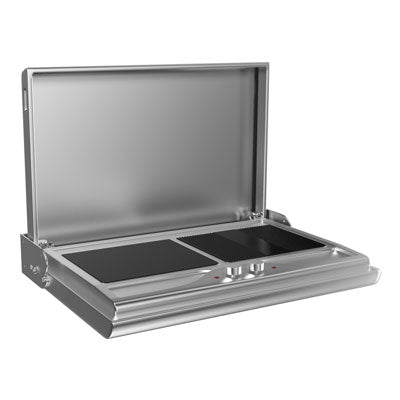

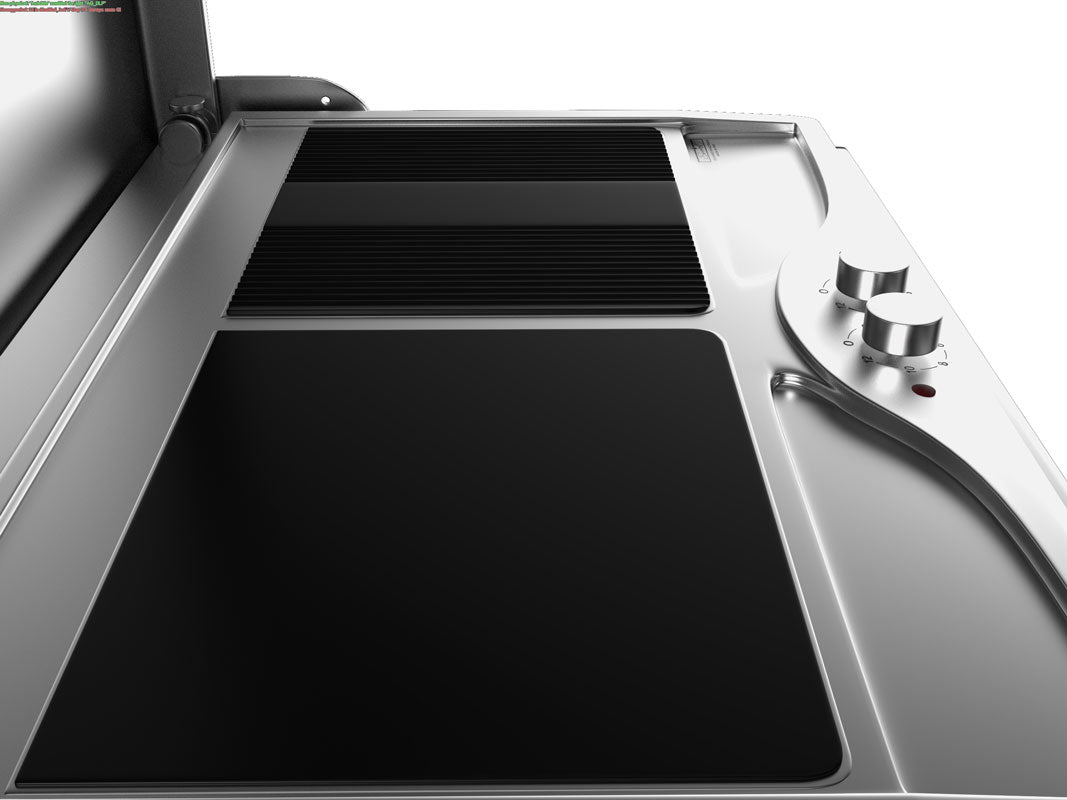

• Two ceramic glass cooking plates: one smooth flat plate and one grooved griddle plate, each with a radiant heating element rated at 1150W.
• Separately controlled zones: each plate has its own control knob, so you can set each one to its own cooking temperature.

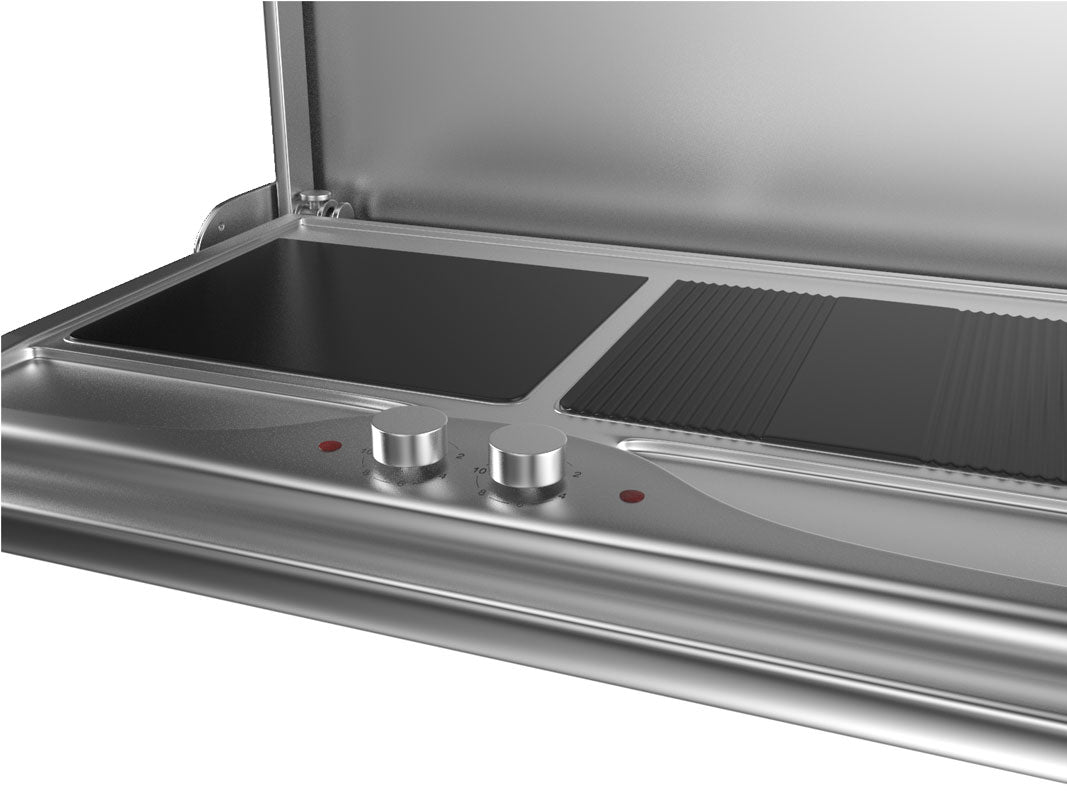

• Residual heat indicators: a red light comes on once the plate reaches 60°C and stays on after switch-off until the plate cools to 60°C or below.
• Drip system for healthier cooking: fats and oils drain through a channel into a removable drain cup that is easy to empty and clean.
• Easy to keep clean: the ceramic glass surface can be wiped down with a cloth, or cleaned with a ceramic glass cleaner for heavier deposits.

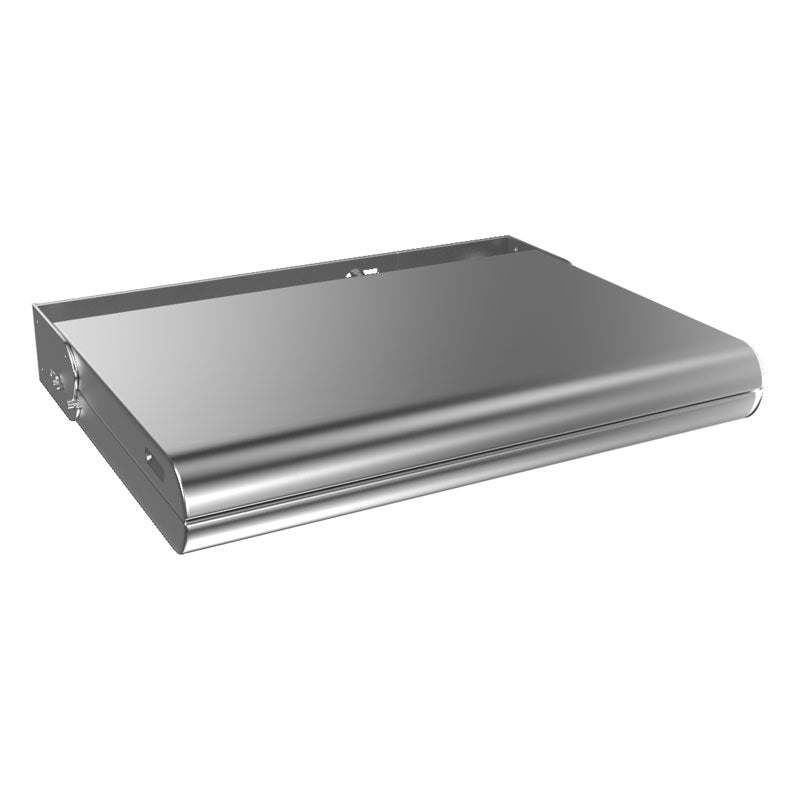

• Fully enclosed stainless steel cover: protects the cooking elements from weather and gives a streamlined, modern look.
• 304 grade stainless steel: extremely resistant to heat, rust and weather so the BBQ lasts.
• Water resistant design: the whole unit is tested to IPX4.
• Simple installation: an easy-to-fit wall bracket can be installed at a height that suits you.
• Made in Turkey, designed in Australia: designed specifically for the Australian market and made by a dedicated boutique specialist manufacturer.
• Three year manufacturer warranty: peace of mind and value for money.

• Opening the BBQ: lift the BBQ off the wall bracket and rotate it 90 degrees until it sits at a right angle to the wall, then push it towards the rear until it clicks into position and lower it slowly into place. Lift the stainless steel cover and open it fully, which also protects the wall while you cook.
• Temperature control: each plate has its own knob that runs from 0 to maximum, so the smooth plate and grooved plate can be set independently.
• Preheating: wait a few minutes for the plates to reach cooking temperature before putting food directly on them.
• Residual heat indicator: the red light shows the plates are still hot, and it stays on after switching off until the plates fall to 60°C or below. Wait until the BBQ has cooled completely before closing it up.
• Smooth flat plate: suited to flat-top cooking such as eggs, onions, seafood and burgers.
• Grooved griddle plate: suited to grilling steaks, sausages and vegetables with a ridged finish.
• High setting limit: do not run the BBQ on the high setting for more than 30 minutes.
• Folding away: once the BBQ has cooled completely, lower it to the vertical position while holding it and insert the mounting pin on the bottom into the slot on the wall bracket.
• Safety note: do not use saucepans or frying pans on the plates, do not use charcoal or similar fuels, never use the BBQ in the rain, and do not use power boards or extension leads.

• Model: WM700EW
• EESS approval number: E2021055217
• Construction: 304 grade stainless steel, stainless steel control panel
• Cooking plates: Ceramic glass, 1 x smooth flat plate and 1 x grooved griddle plate
• Heating elements: 2 x radiant electric, 1150W each
• Total power: 2300W
• Voltage and frequency: 230-240V AC, 50/60Hz
• Current: 10A
• Water resistance: IPX4
• Residual heat indicator: Yes, red light at 60°C
• Drip system: Channel and removable oil drain cup
• Mounting: Wall mounted with fixing wall bracket
• Product weight: 27.1kg (excluding packaging)
• Warranty: 3 years
• Origin: Designed in Australia, made in Turkey

• Wall strength: the BBQ weighs 27.1kg, so choose a wall that can hold it. Brickwork is recommended, fixed with plastic plugs, dyna bolts or similar. On any other wall type, take special care that the bracket is fixed to something strong enough.
• Marking the holes: use the socket punch from the packaging as a template to mark the wall bracket holes at a suitable working height. The recommended distance from point A to the ground is 90cm.
• Drilling and fixing: drill 10mm holes the length of the plastic plug, clear out the dust, insert the plugs, then fix the wall bracket with the supplied screws. Place the BBQ on the bracket, check the fixing bolts sit in the BBQ holes, and slowly lift it upwards.
• Drain cup: fit the oil drain cup part to the BBQ, then place the drain cup on it.
• Outdoor use only: install outdoors, protected from direct rain. If a working rangehood or air ventilation or purification device is not installed, allow at least 4 metres of clearance above the unit.
• Power: a 10 amp, 240 volt power point is needed nearby, on a circuit with an RCD of 30mA or less. The power point must be accessible after installation and the BBQ must be on a properly earthed outlet. Do not use power boards or extension leads.
• Clearances: use the BBQ at least 200mm away from combustible objects such as timber, vinyl siding, fences and overhangs, and at least 3 metres from a pool, spa, pond or water faucet.
• Installer: installation and electrical connection must follow local regulations and be carried out by a competent technician or licensed electrician.
• User manual: read the user manual thoroughly before installing or using the BBQ.

Warranty coverage

Smart is a proudly Australian-owned and operated brand distributed by Arisit Pty Limited, offering a premium range of gas BBQs, electric BBQs, alfresco rangehoods, pizza ovens, and outdoor refrigeration. All Smart products are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every product.

• Built-in & freestanding gas BBQs: 3 years — Parts and labour
• Wall mounted electric BBQ: 3 years — Parts and labour
• Alfresco rangehoods: 3 years — Parts and labour
• Rangehood baffle filters: Lifetime — Against defects in materials and workmanship
• Pizza ovens: 2 years — Parts and labour
• Drinks chillers & wine fridges: 3 years — Parts and labour

Proof of purchase is required for all warranty claims. Products must be inspected for damage prior to installation. BBQ covers and other accessories are not included in the product warranty.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Parts and labour costs within the applicable warranty period
• Lifetime coverage on rangehood baffle filters against manufacturing defects

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, or neglect
• Normal wear and tear including rust caused by inadequate maintenance or cleaning
• BBQ covers and accessories
• Damage caused by power surges or incorrect gas or electrical supply
• Repairs or modifications carried out by unauthorised parties
• Scratches, dents, or cosmetic damage identified after installation

Conditions

• Gas BBQs must be installed by a licensed gas plumber
• Electric BBQs and rangehoods must be installed by a licensed electrician
• Flexible ducting must not be used for rangehood installation — semi-rigid or solid ducting required
• Must be used and maintained in accordance with manufacturer instructions
• Products must be inspected for damage prior to installation
• Register your product at smartbbqs.com.au/pages/product-registration
• Proof of purchase must be provided with all claims

Making a claim

Contact Smart BBQ on 03 9768 0866 or via the contact form at smartbbqs.com.au/pages/contact. For warranty claims, contact Arisit on 1300 762 219 or email arisitwarranties@arisit.com. Please have your proof of purchase and product serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

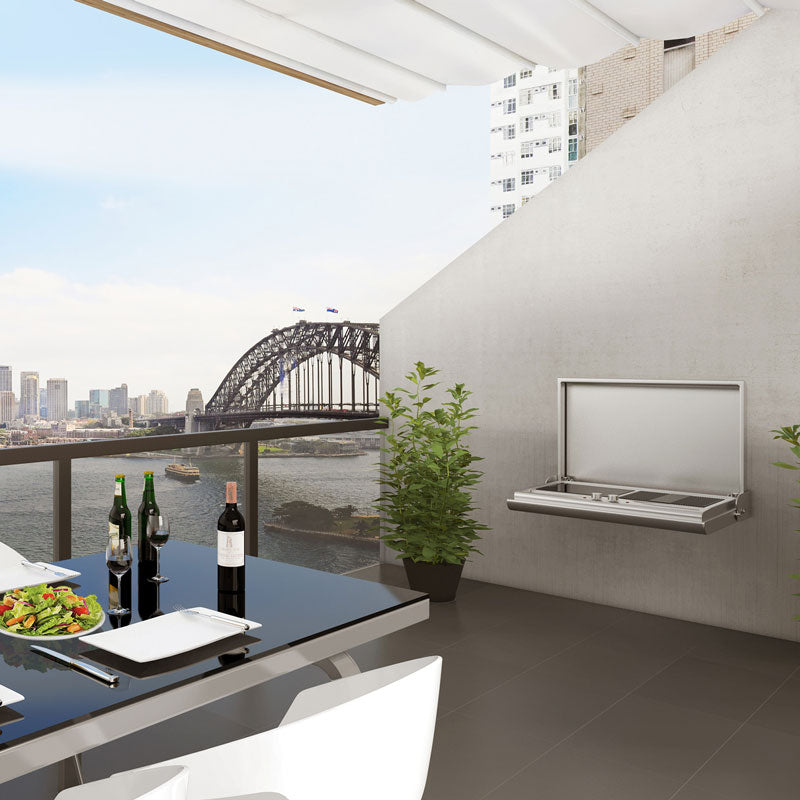

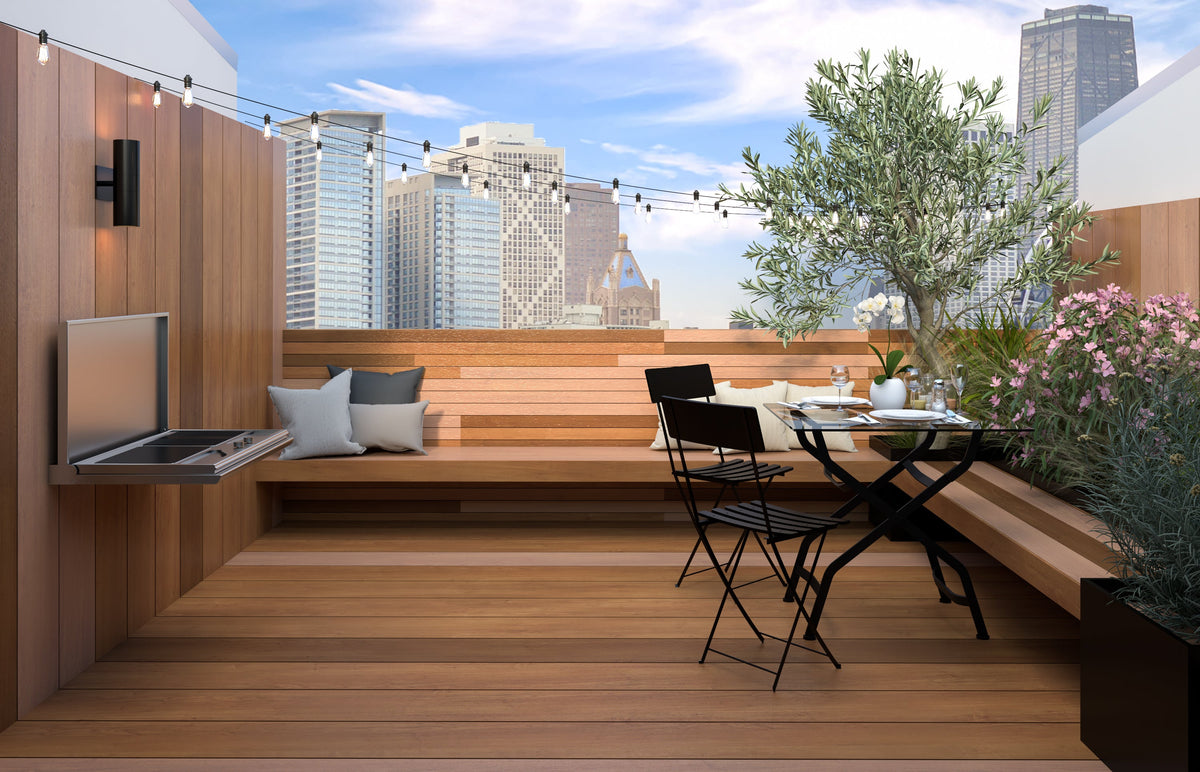

The WM700EW is aimed at the people gas BBQs leave behind: apartment owners, townhouse residents and anyone with a small courtyard or balcony. Because it is electric, there is no gas bottle to store, refill or argue about with the body corporate, and because it folds to just 150mm deep, the wall space it occupies is hardly noticeable between barbecues.

Cooking works differently from a gas BBQ. Heat comes from two radiant elements under ceramic glass, so the plates warm up in a few minutes and each side can run at its own temperature, with the smooth plate for delicate foods and the grooved plate for steaks and sausages. The glass top wipes clean, the drip channel keeps fats away from the food, and the red residual heat lights tell you when it is still too hot to fold away.

Planning matters on the wall side. The bracket needs a strong wall, with brickwork recommended, the unit needs its own 10 amp power point near the fixing height, and an open outdoor position protected from rain is required, with 4 metres of clearance above if there is no rangehood or ventilation. Get these right at installation and the BBQ is a very low-maintenance way to cook outdoors.

• BBQ: 1 x Smart WM700EW wall mounted foldaway electric BBQ with ceramic glass cooking plates and stainless steel cover.
• Wall fixing bracket: 1 x wall bracket for mounting the BBQ.
• Fixings: dowels, screws and assembly screws.
• Oil drain cup: 1 x oil drain cup with its fixed part.

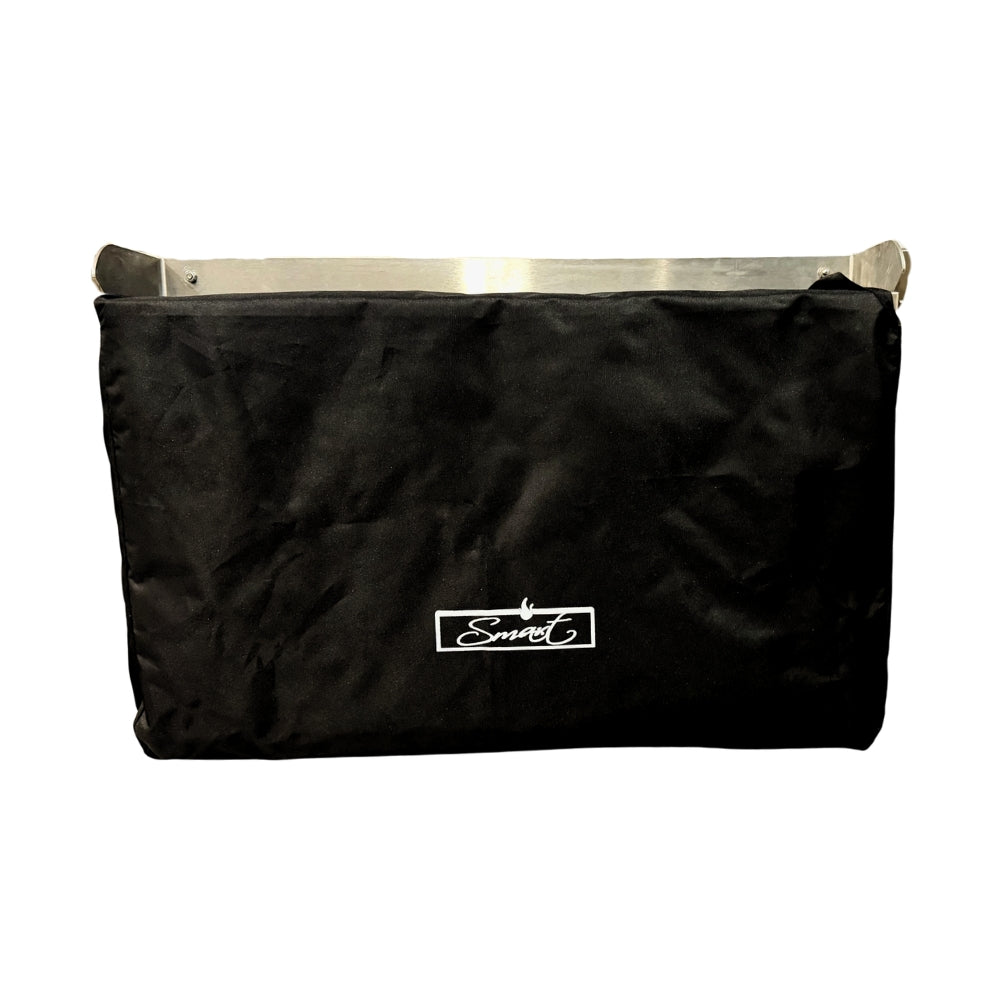

• Cover: 1 x cover, as listed in the manual's carton contents.
• Instruction manual: 1 x user manual.
