Product Description

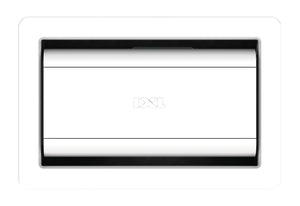

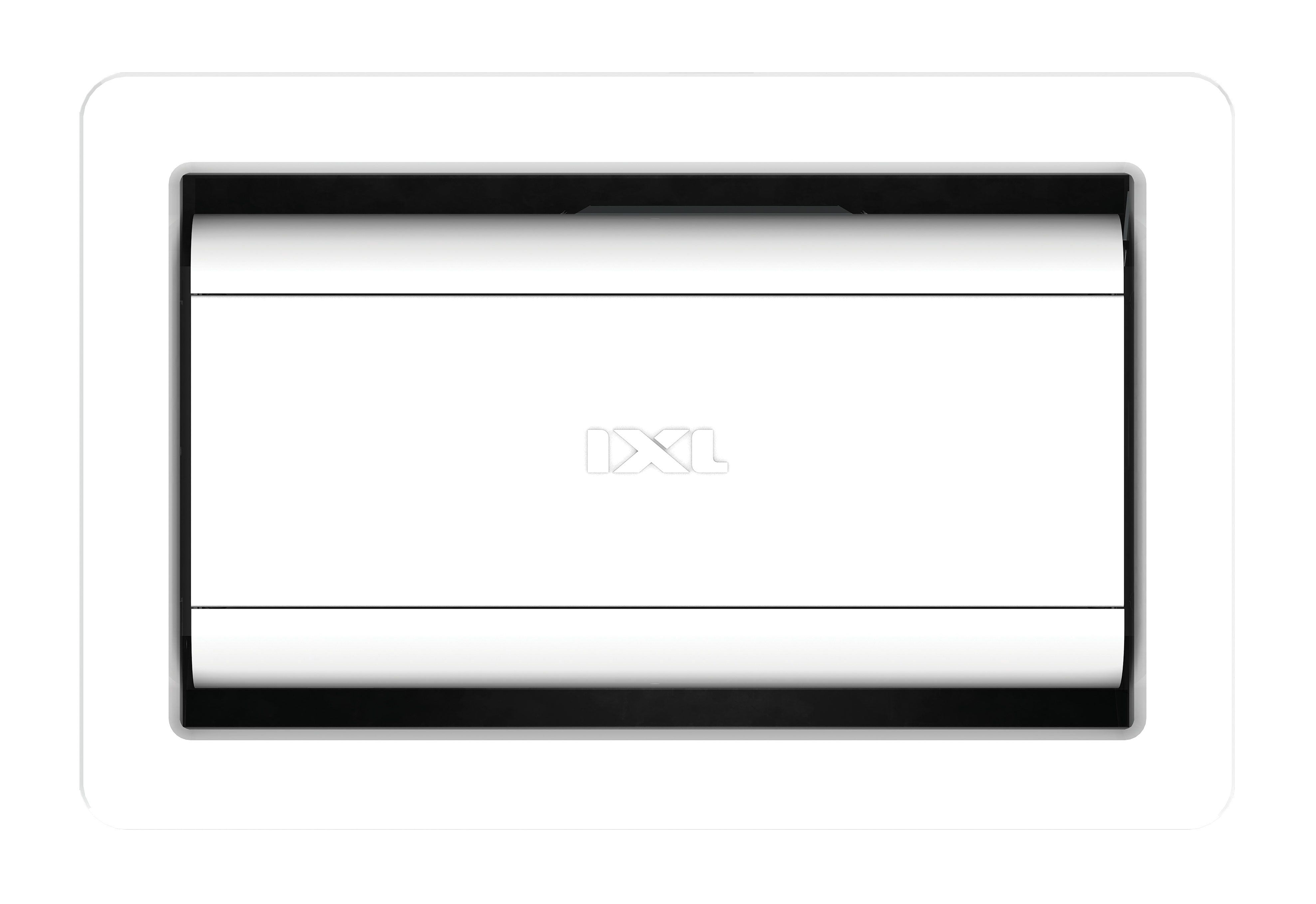

The Tastic Luminate Vent is the latest new addition to IXL's premium Tastic Luminate range, featuring a powerful bathroom ceiling exhaust fan.

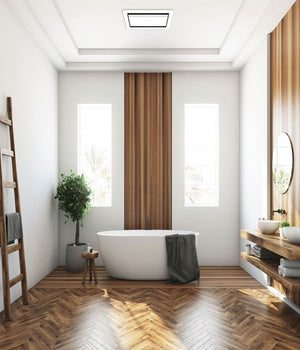

Position a Tastic Luminate Vent module over the shower, in the laundry or bathroom to banish odours and water vapour effectively, without the need for a bulky extraction fan.
Tastic Luminate Vent features a sleek and contemporary fascia design and is suitable for above shower installation with an IPX4 rating.
This product is a ventilation fan only. There is no heat or light.
Powerful Extraction: 400m3/h Airflow
Tastic Luminate Vent is proudly designed and manufactured in Australia.
DESCRIPTION:
- Powerful Extraction: 400m3/hr Airflow
- Suitbale for above shower installation: IPX4 rating
- Exhaust Fan with 6m Duct and Exterior Outlet Vent
- Designed and manufactured in Australia
- Suitable for areas up to 8.3m2 with shower* and 20.8m2 without shower.
SPECIFICATIONS:Â
- UPC: 9332048028885
- Finish/Colours: White
- Airflow Extraction (m3/h): 400
- Ducted: Yes
- Back Draught Flaps: Yes
- Clearance Required above Unit (mm): 50
- Current Ratings (Amps): 0.3
- Cutout Size (mm): 214 x 332
- Exhaust Capacity (l/s): 111
- Exhaust Capacity (m3/h): 400
- Fan Size (mm): 170
- Fascia Dimensions (mm): 243W x 367D
- Half Heat Function: Yes
- Instant Heat: No
- Inline Fan Ducted to Outside: Yes
- Made in Australia: Yes
- Max. Height of Unit (mm): 195
- Supply (Volts): 240
- Area Suitability in Room without Shower: 50
- Area Suitability in Room with Shower: 20
- Total Ceiling Cavity Required (mm): 245
- Watts (Fan in Brackets): 0 (75)
- Weight of Unit (kg): 4.2
- Wall Switch: No
- Power Cable Length (m): 1.2
- Unit Dimensions (mm): 367W x 243L x 200D
WARRANTY:
- 5 Year In-Home Warranty.
- 2-Year Replacement Warranty on In-Line Exhaust.
