Product Description

Product Overview:

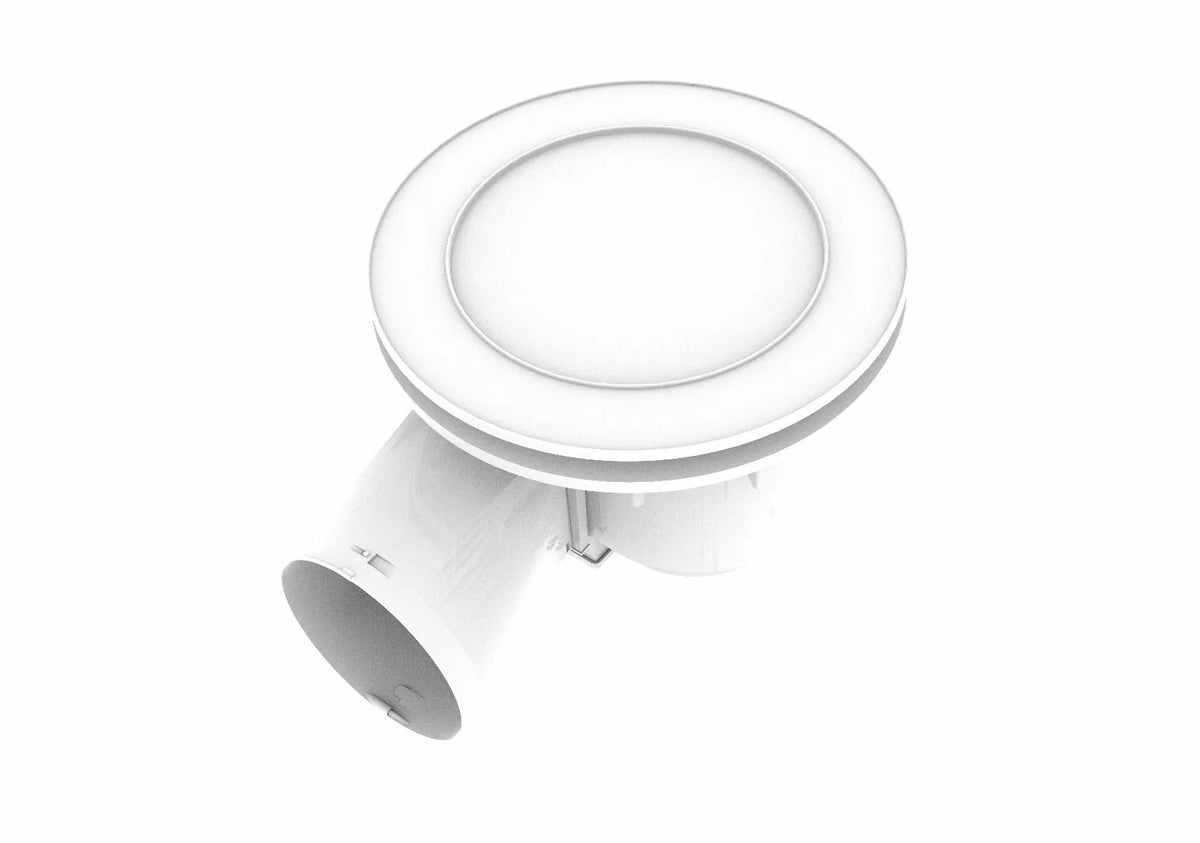

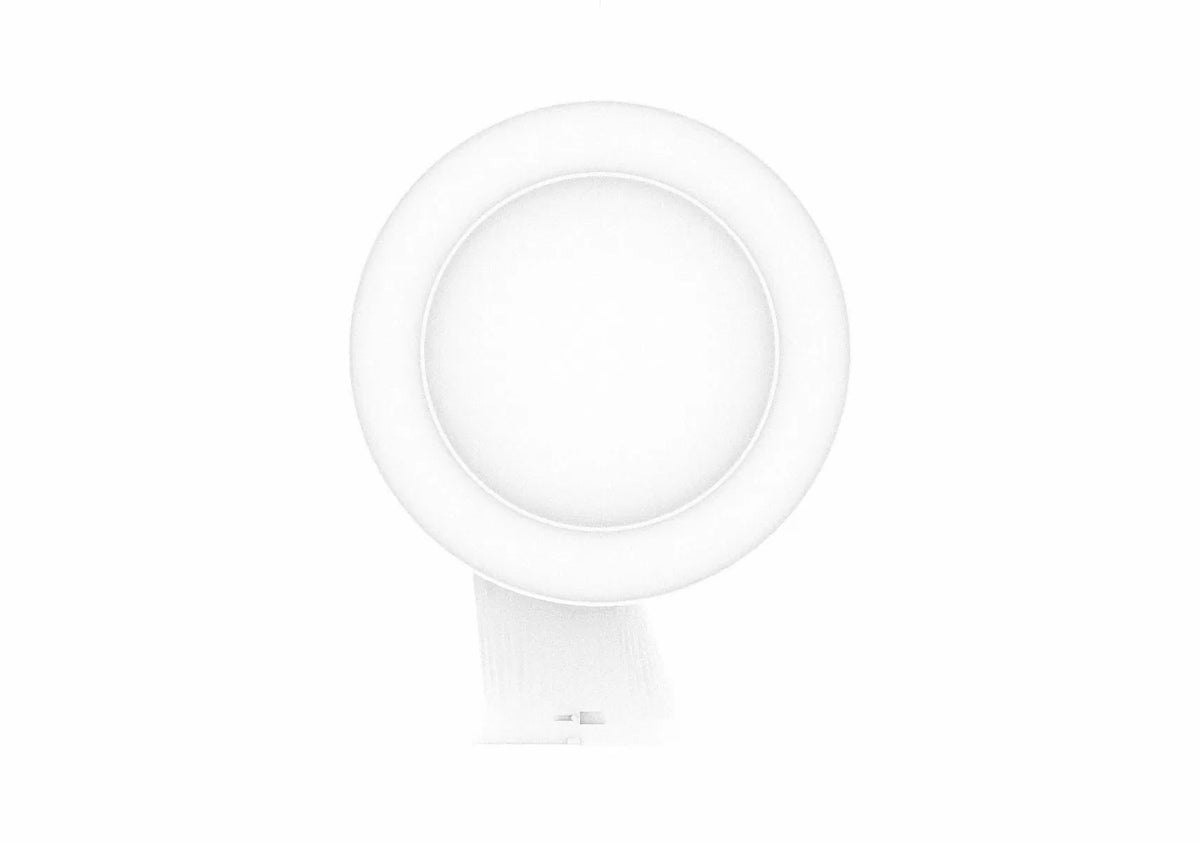

The Ducted Ventflo 200mm Ceiling Exhaust Fan & Light combines purpose-built ceiling extraction with a ducted outdoor discharge path, helping remove humid air rather than releasing it into the roof space. Its 280 m³/hr airflow and IP24 rating make it suitable for wet and steamy areas, including installation directly above a shower when installed in accordance with the supplied instructions.

An integrated 12W 4000K cool-white LED panel adds clear everyday illumination while the removable white fascia supports straightforward cleaning. A 125 mm duct outlet, back draught flaps and plug-in fan connection give the installer a considered foundation for an efficient, compliant ventilation layout.

Product Features:

• Ducted outdoor extraction: Moves up to 280 m³/hr (77 L/s) and directs moist air away from the room.
• Above-shower suitability: IP24-rated construction supports correctly installed wet-area applications.
• Back draught protection: Integrated flaps help reduce unwanted reverse airflow.
• Easy-clean fascia: The removable white fascia simplifies routine maintenance.
• Integrated LED lighting: A 12W 4000K cool-white LED panel combines ventilation and practical lighting.

Colour / Finishes:

• White

Programmes / Functions:

• Ventilation: Extracts up to 280 m³/hr (77 L/s) to help remove steam, humidity and odours.
• Lighting: 12W integrated LED, 4000K cool white.
• On/off operation: Use the connected wall control to operate ventilation as required.

Cleaning & Maintenance:

• Before cleaning: Switch off and isolate the appliance from the electrical supply.
• Fascia: Remove carefully and clean in accordance with the user guide; dishwasher-safe fascia models may be washed separately.
• Fan openings: Keep air inlets, grilles and the impeller area free from accumulated dust.
• Duct path and shutters: Inspect accessible outlets and back draught components periodically so airflow remains unobstructed.

Specifications:

• Product type: Ceiling exhaust fan and light
• Model: 10336
• Barcode: 9332048029486
• Finish: White
• Airflow extraction: 280 m³/hr (77 L/s)
• Fan size: 200 mm
• Fan wattage: 45W
• Integrated light: 12W integrated LED, 4000K cool white
• IP rating: IP24
• Ducted: Yes
• Back draught protection: Yes
• Rated supply: 220–240V AC, 50–60Hz
• Warranty: 3-year parts and labour warranty

Product Measurements:

• Cut-out: Ø240 mm
• Ceiling Cavity Requirement: 210 mm
• Duct Outlet: 125 mm

Installation & Requirements:

• Installation type: Ceiling mounted.
• Required trade: Installation and electrical work must be completed in accordance with the user guide and applicable wiring rules.
• Cut-out: Provide a Ø240 mm ceiling opening.
• Ceiling cavity: Allow at least 210 mm total cavity height.
• Air replacement: Ensure sufficient replacement air can enter through windows, vents or beneath the door.
• Ducting: Connect to the specified 125 mm outlet and discharge outdoors with the shortest practical duct run.

Extra Information:

Ducted ventilation carries humid air away from the room and building cavity, supporting better moisture management when correctly installed.

IP24 protection supports the documented wet-area application, but installation must still comply with bathroom zoning and electrical requirements.

Included Products / Accessories:

• Ceiling exhaust fan assembly
• Removable white fascia
• Integrated 12W LED panel
• Back draught flaps
• User guide and installation instructions

Warranty:

IXL appliances are backed by a 5-year in-home warranty on all Tastic units, a 3-year warranty on Ventflo exhaust fans, and a 3-year in-home service warranty on Aeroflow ceiling fans. All warranties are in addition to your rights under the Australian Consumer Law.
