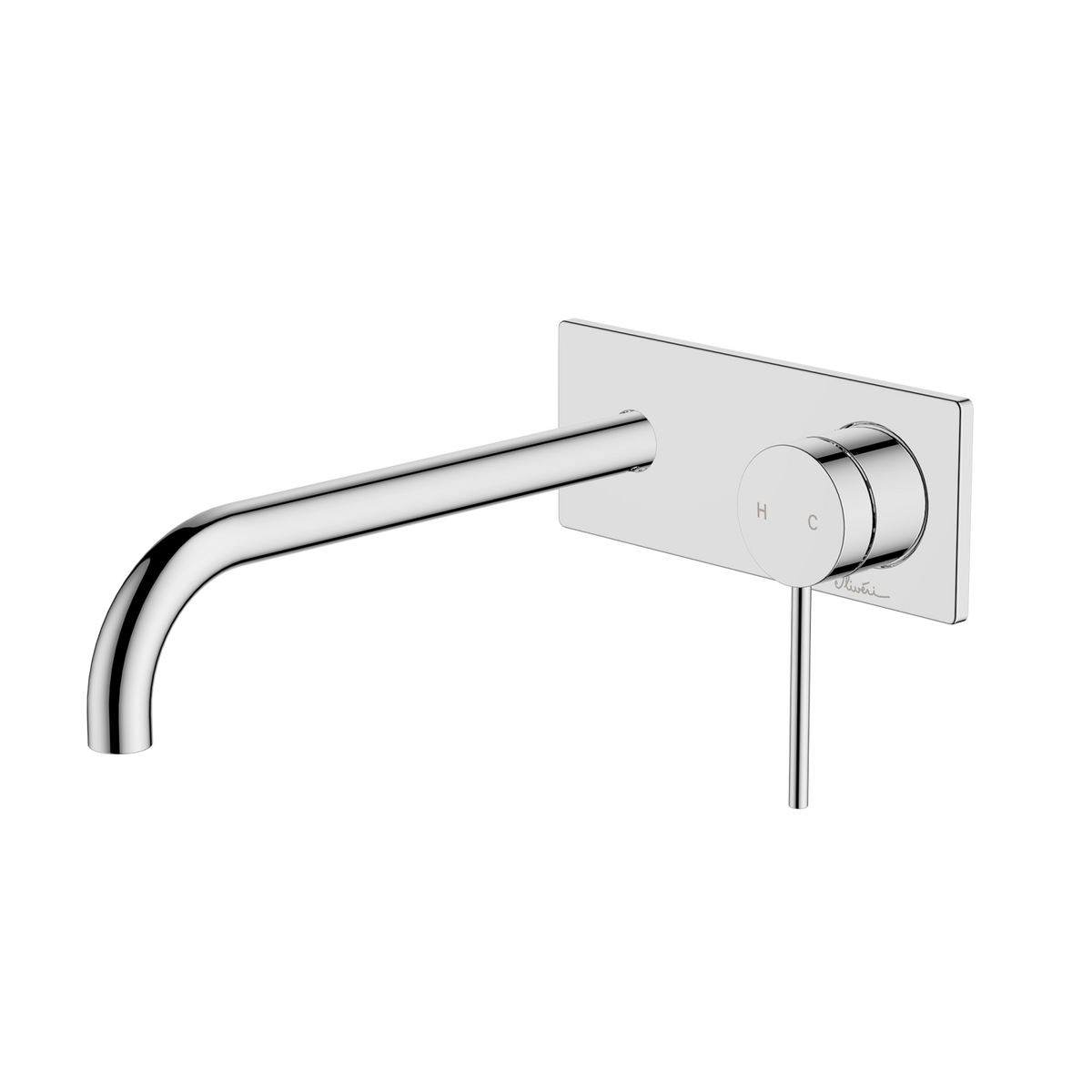

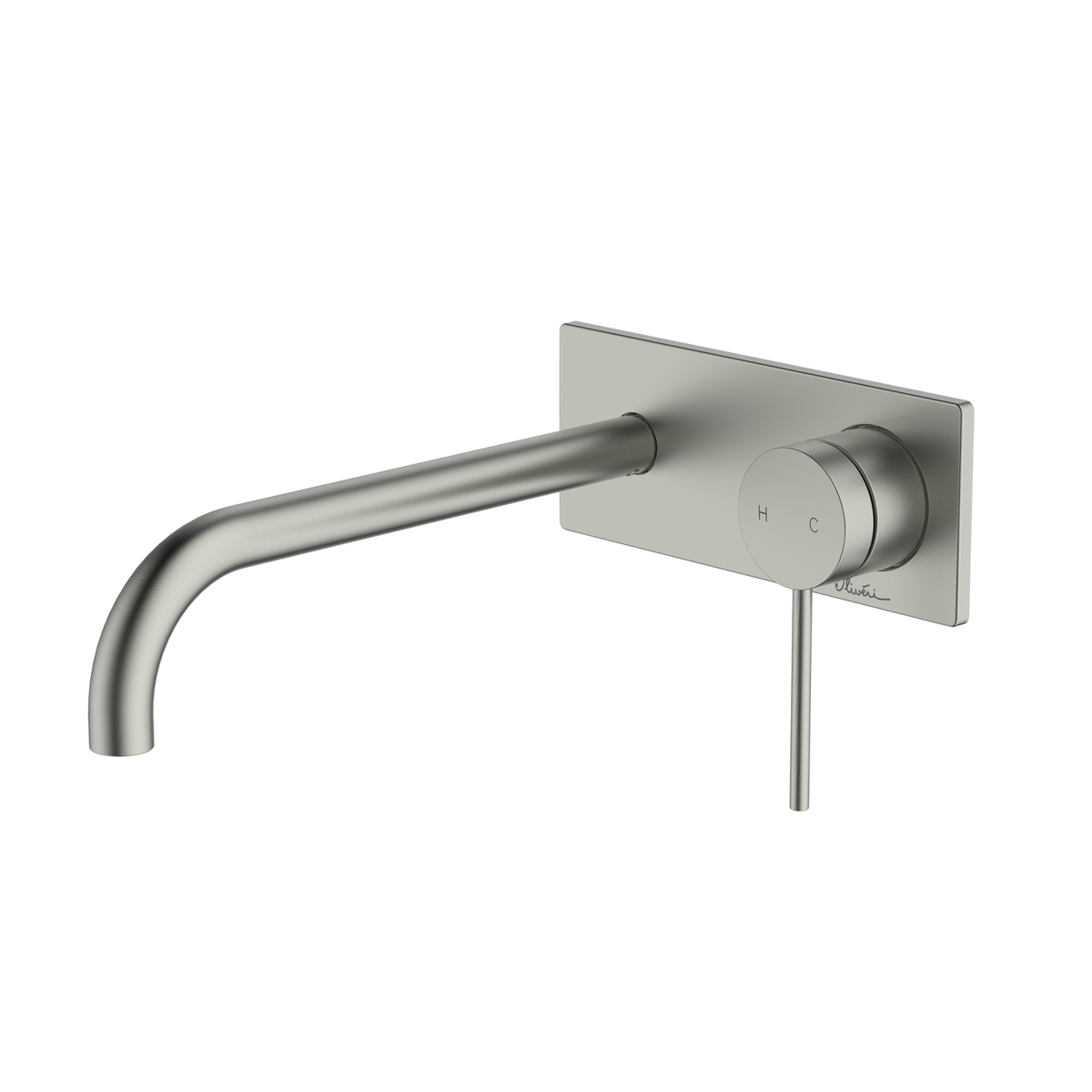

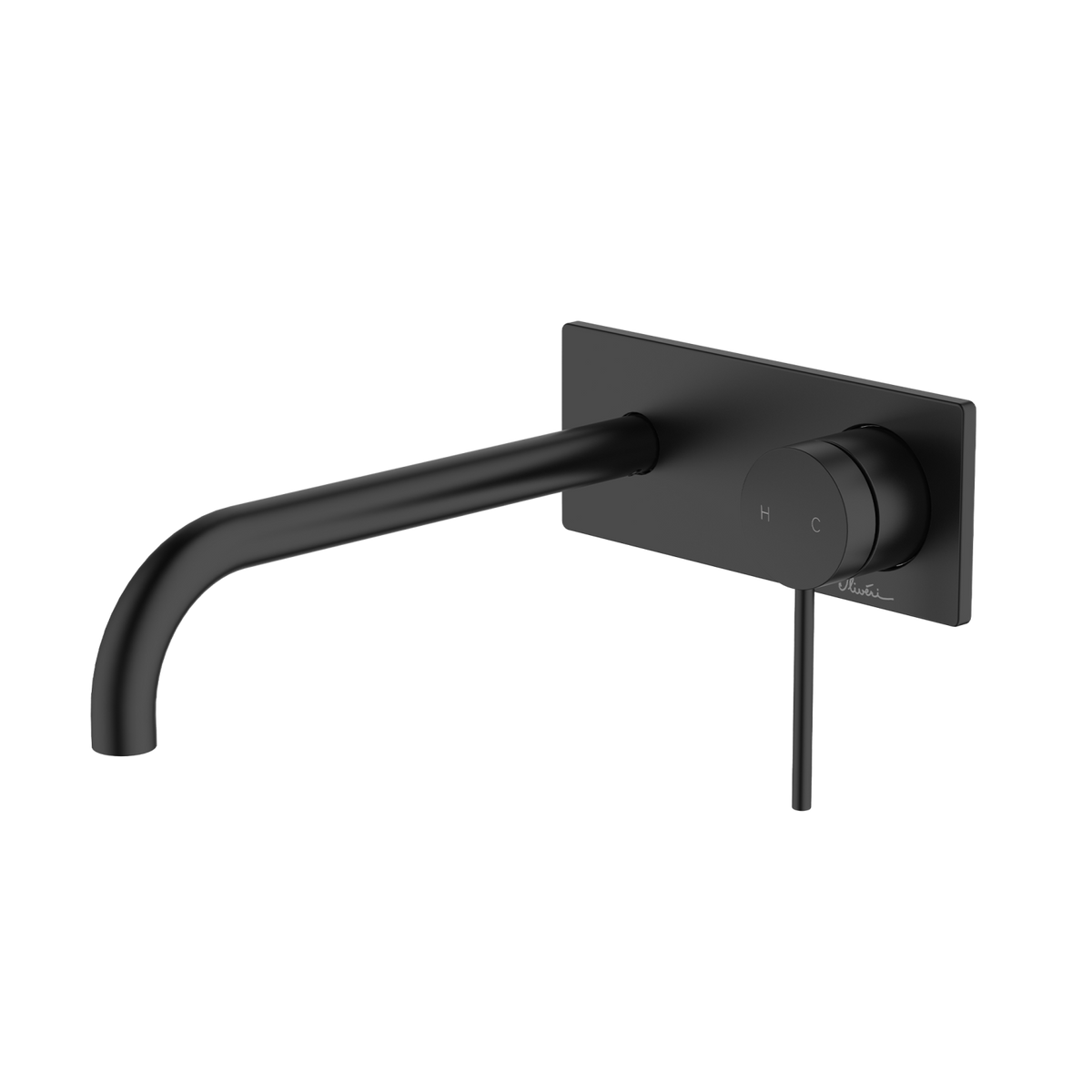

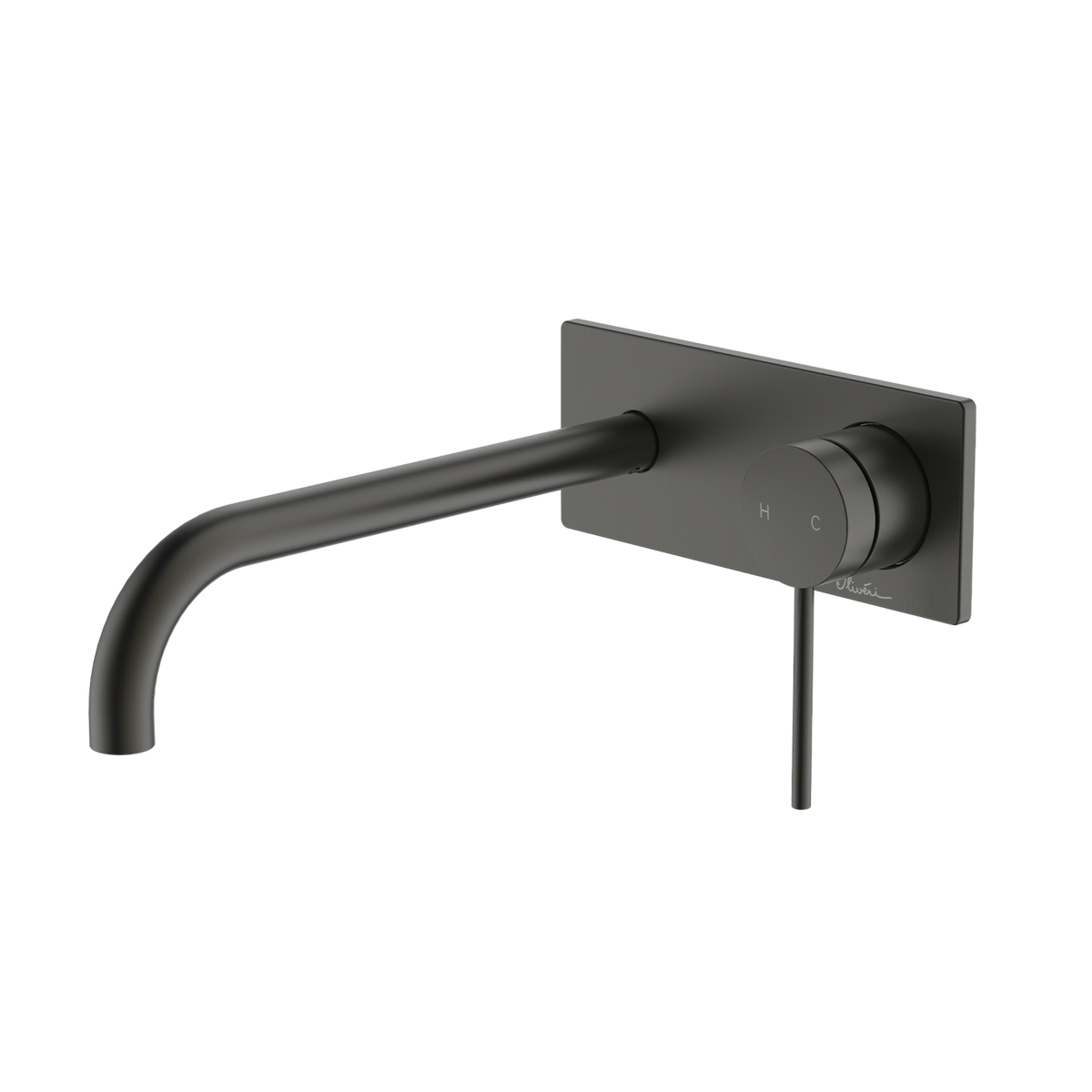

Oliveri VE1055-TK Venice 200mm Curved Wall Mixer Set Trim Kit

Sale price $254.25 Regular price $339.00
available online
Color: Gold
SKU: VE105503FCG-TK
Brand: Oliveri
Barcode: 9324974028855
Why You’ll Love It
  • Finish it beautifully: Complete a SERIES 2 rough-in with Venice’s elegant curved spout and slim pin-lever styling.
  • Choose the colour later: Keep the decorative finish protected and make the final colour decision after wall work is complete.
  • Refresh without re-plumbing: Compatible SERIES 2 architecture lets you change between suitable London, Paris and Venice trims later.
  • Flexible water efficiency: Use the installed 6 Star 4.5L/min aerator or the included 5 Star 6L/min alternative.
Ideal For
  • New bathroom builds: Perfect when a UNI-C2-BY concealed body has already been installed during first fix.
  • Design-led renovations: Gives renovators a refined wall-mounted set that keeps the basin area visually uncluttered.
  • Coordinated Venice schemes: Suits buyers matching tapware finishes across the wider Venice bathroom collection.
  • Future-minded projects: Ideal for households that value the option to refresh compatible visible trim without opening the wall.
Lead Time
Order Type: Standard Order
Estimated Lead Time: 3 - 5 Business days from date of order
Delivered by: 8Appliances
These are usual lead times and can occasionally change. If this happens, we'll reach out to keep you posted. This doesn't include courier delivery time to your address. Once your order leaves the warehouse, delivery runs on your chosen courier's timeframe.

Water rating
Water Consumption: 4.5 litres per min
Registration Number: T43969
Licence number: 1416

Product Overview

The Oliveri VE1055-TK Venice 200mm Curved Wall Mixer Set Trim Kit brings the Venice collection’s graceful curved spout and refined pin-lever mixer to a compatible SERIES 2 concealed installation. Designed as the visible finishing set only, it is ideal when the UNI-C2-BY in-wall body has already been installed during the plumbing rough-in stage.

Its interchangeable SERIES 2 platform allows a compatible London, Paris or Venice trim to be selected or refreshed without replacing the concealed body. Lead-free brass construction, a 35mm Kerox ceramic cartridge within the required in-wall body, and supplied dual WELS aerators support a coordinated, flexible bathroom finish.

Product Details & Specifications

Product Features
  • Trim-kit-only SERIES 2 package: Completes a compatible pre-installed UNI-C2-BY concealed in-wall mixer body.
  • Elegant curved Venice profile: Combines the 200mm-class wall spout and slim pin-lever mixer trim in one coordinated visible set.
  • Adjustable installation reach: The 202–224mm spout reach works with the specified 51–74mm concealed-body depth range.
  • Interchangeable SERIES 2 platform: Supports compatible London, Paris and Venice trim changes without replacing the concealed body.
  • Late-stage finish selection: Allows decorative trim to be selected and installed after tiles and surrounding bathroom finishes are complete.
  • Dual WELS configuration: Includes a 6 Star 4.5L/min aerator and an alternative 5 Star 6L/min aerator.
  • Purpose-matched dimensions: A 172mm × 70mm backplate integrates the curved outlet and mixer control in a clean horizontal format.
  • Five coordinated finishes: Available in Chrome, Brushed Nickel, Classic Gold, Gunmetal and Matte Black.
Programmes / Functions
Product Specifications
  • Brand: Oliveri
  • Model family: VE1055-TK
  • Collection: Venice
  • Product type: Wall mixer set trim kit
  • Installation: Wall mounted
  • Construction: Lead-free brass body components, zinc handle and stainless-steel lever
  • Required in-wall body: UNI-C2-BY SERIES 2 body, sold separately
  • Water supply: Mains
  • Operating pressure: 150–500kPa
  • Maximum operating temperature: 65°C
  • WELS: 6 Stars at 4.5 litres per min
  • WELS registrations: T43969
  • WELS licence number: 1416
  • Compliance: In accordance with AS/NZS 6400

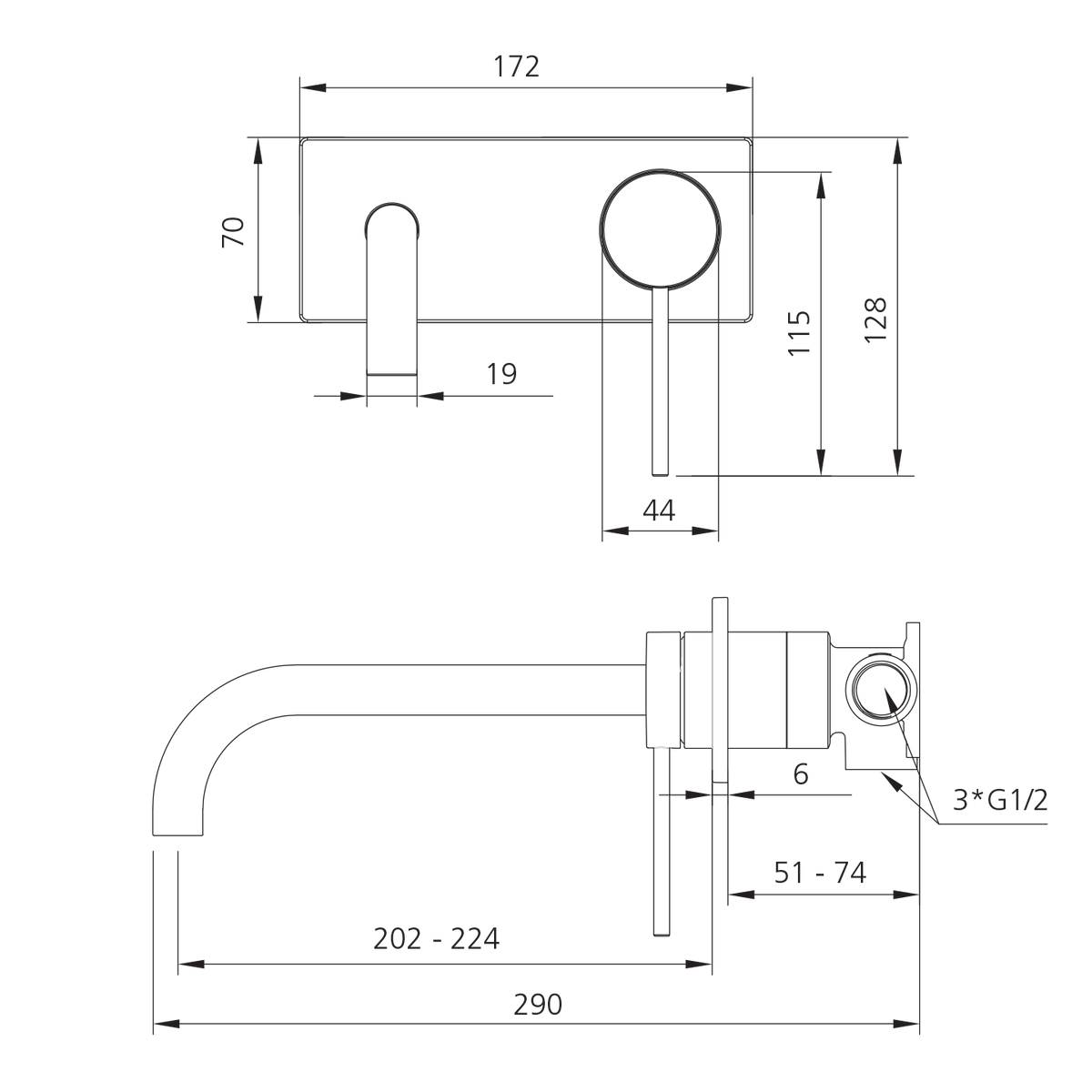

Product Measurements
  • Backplate width: 172mm
  • Backplate height: 70mm
  • Overall assembly height: 128mm
  • Handle length: 115mm
  • Mixer trim diameter: 44mm
  • Overall projection: 290mm
  • Spout reach: 202–224mm
  • Required in-wall depth: 51–74mm
Product Weight
  • 0.73 kg
Installation & Requirements
  • Compatible concealed body required: Install only onto a correctly positioned UNI-C2-BY SERIES 2 in-wall body.
  • Licensed installation: Must be fitted by a licensed plumber in accordance with local requirements and Oliveri instructions.
  • Pre-installation checks: Confirm finished-wall depth, spout position, basin alignment and water landing point before fitting the trim.
  • Operating conditions: Maintain water pressure between 150 and 500kPa and water temperature at or below 65°C.
  • Service access: Preserve the access required for concealed fittings and future maintenance.
Colour/Finishes
  • Classic Gold
  • Chrome
  • Gunmetal
  • Brushed Nickel
  • Matte Black
Warranty

Warranty coverage

Oliveri products are backed by a comprehensive manufacturer's warranty, reflecting the enduring quality of their Australian kitchen, bathroom, and laundry products.

Domestic warranty periods apply. Commercial periods differ. Applies to products purchased after 1st March 2022.

Kitchen sinks & laundry tubs

  • Stainless steel sinks & tubs: Lifetime — Replacement product, original purchaser only
  • Basket waste & accessories: 1 year — Replacement parts

Basins

  • Vitreous china basins: 20 years — Replacement parts, 1 year labour
  • Stainless steel & Terzofoco basins: Lifetime — Replacement bowl, original purchaser only

Bathroom tapware

  • Cartridge & body: 15 years — Replacement parts, 1 year labour
  • Chrome finish: 15 years — Replacement parts, 1 year labour
  • PVD finish: 10 years — Replacement parts, 1 year labour
  • Other finishes & seals: 5 years — Replacement parts, 1 year labour

Kitchen tapware

  • Premium ranges (Vilo, Pepe, Essente 316) — cartridge: 15 years — Replacement parts, 1 year labour
  • Premium ranges — body & chrome finish: 7 years — Replacement parts and labour
  • Standard ranges — cartridge: 10 years — Replacement parts, 1 year labour
  • Standard ranges — body & chrome finish: 7 years — Replacement parts and labour

Showers

  • Main body: 15 years — Replacement parts, 1 year labour
  • Chrome finish: 7 years — Replacement parts, 1 year labour
  • Non-chrome/coloured finish & shower head: 5 years — Replacement parts, 1 year labour
  • Hoses, seals & O-rings: 2 years — Replacement parts, 1 year labour

Toilets

  • Vitreous china cistern & pan: 20 years — Replacement parts, 1 year labour
  • Toilet seat: 5 years — Replacement parts, 1 year labour
  • Valves & fittings: 2 years — Replacement parts, 1 year labour

Baths

  • Island & inset bath shell: 15 years — Replacement parts, 1 year labour
  • Freestanding bath shell: 10 years — Replacement parts, 1 year labour

Bathroom accessories

  • Parts & chrome finish: 7 years — Replacement parts, 1 year labour
  • Non-chrome/coloured finish: 5 years — Replacement parts, 1 year labour

Proof of purchase is required for all claims. The lifetime warranty applies to the original purchaser only and is not transferable.

What's covered

  • Manufacturing defects in materials and workmanship
  • Repair or replacement of faulty products within the applicable warranty period
  • Replacement of defective parts

What's not covered

  • Scratching or general surface finish deterioration from normal use
  • Incorrect installation or failure to follow manufacturer guidelines
  • Misuse, abuse, accidental damage, or neglect
  • Use of abrasive, acidic, or harsh chemical cleaning products
  • Damage from excess water pressure (over 500kPa) or water temperature
  • Normal wear and tear, including seals and O-rings
  • Repairs or modifications carried out by unauthorised parties
  • Products with visible faults installed without prior reporting

Conditions

  • Must be installed by a licensed plumber, tradesperson, or electrician as appropriate
  • Must be installed in accordance with Australian Standards and manufacturer instructions
  • Water pressure must not exceed 500kPa
  • Products must be inspected for damage before installation
  • Braided stainless steel flexible hoses must be inspected every 12 months
  • Proof of purchase must be provided with all claims
  • The warranty applies to the original purchaser only

Making a claim

To make a warranty claim, contact Oliveri directly by phone or email. Please have your proof of purchase, photos of the product and defect, and installer details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Country Of Origin
Extra Information

This trim-kit-only family is intended for projects where the UNI-C2-BY concealed body has already been purchased or installed. Keeping the rough-in body separate from the visible trim helps protect the decorative finish during construction and allows the final colour decision to be made later.

The installed 6 Star aerator provides an efficient 4.5L/min flow, while the supplied 5 Star aerator offers an alternative 6L/min flow where preferred. Because the trim relies on the SERIES 2 concealed platform, compatibility and rough-in depth should always be confirmed before installation.

Included Products / Accessories
  • Venice trim kit: Curved 200mm wall spout and mixer trim in the selected finish.
  • 6 Star aerator: Installed for 4.5L/min operation.
  • 5 Star aerator: Included for optional 6L/min operation.
  • Installation components: Trim-kit components supplied by Oliveri.
  • Not included: UNI-C2-BY SERIES 2 in-wall mixer body.

Disclaimer

Product images are for illustrative and presentation purposes only. Any accessories, fittings, or additional items shown may not be included with the product unless explicitly stated in the product description. Please refer to the product specifications and inclusions for full details.
