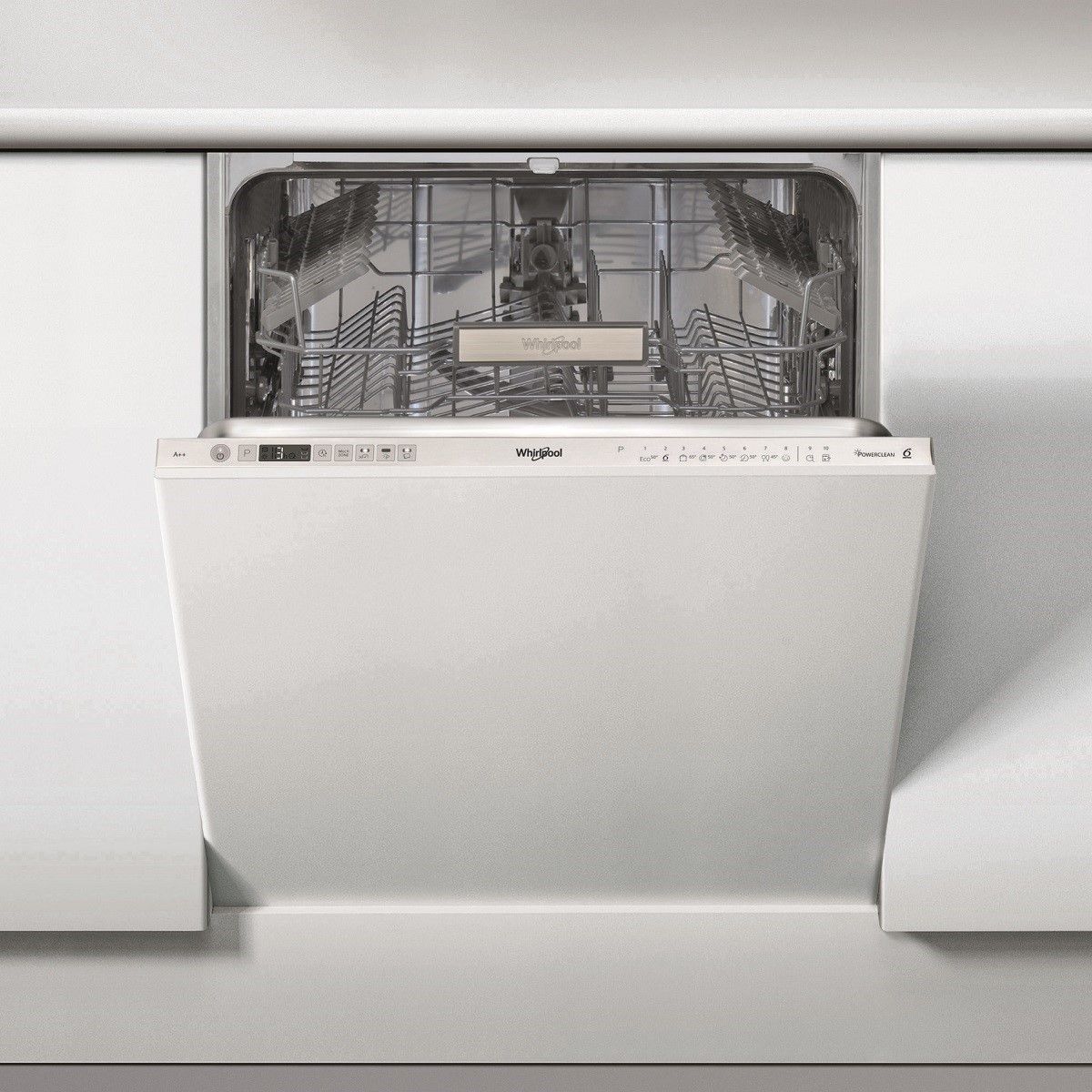

Whirlpool WIO3033PELAUS 60cm 15 Place Power Clean Integrated Dishwasher

• 6th SENSE Technology: a smart sensor detects and monitors the level of soil and adapts the cycle parameters and programme settings accordingly, saving time and water while delivering clean dishes.
• Power Clean: additional high-pressure water jets at the rear of the lower rack give a more intensive wash in a dedicated zone, recommended for pots and casserole dishes loaded at an angle towards the jets.
• NaturalDry: a convection drying system that automatically opens the door during or after the drying phase for exceptional drying performance. The door opens at a temperature that is safe for kitchen cabinetry and does not open when Turbo is selected.
• Multizone: wash only the lower rack, the upper rack or the cutlery rack when there are only a few dishes, saving water, energy and detergent.
• 15 place settings on 3 levels: two baskets plus a flexible cutlery drawer give room for even the biggest family, with the cutlery rack also holding small items such as coffee cups.
• Turbo option: shortens the duration of the main programmes while maintaining the same washing and drying performance levels.
• Flexible loading: foldable flaps with adjustable positions hold wine glasses by the stem, the lower rack has tip-up supports and a pull-out Space Zone for frying and baking pans, and the upper rack height can be adjusted.
• 1-12 hour delay start: set the dishwasher to start up to 12 hours later, so it can run at a more convenient time.
• Tablet setting: optimises the programme for all-in-one detergent tablets that combine detergent, rinse aid and salt.
• Operation indicator light: an LED projected onto the floor shows the dishwasher is running and flashes at the end of the cycle, with three selectable modes.
• Built-in water softener: automatically reduces water hardness to prevent limescale on the heating element and improve cleaning, with five hardness levels to match your local water supply.
• Aquastop + overflow protection: safety systems that help protect against water leaks.

• Eco: 50°C environmentally friendly standard cycle for normally soiled loads, about 3 hours 35 minutes, using 13.5 litres and 0.65 kWh per cycle.
• 6th SENSE: 50-60°C for mixed soiled dishes with dried food residues; senses the level of soiling and adjusts the programme, taking about 1 hour 25 minutes to 3 hours.
• Intensive: 65°C for heavily soiled crockery, especially pans and saucepans (not for delicate items), about 2 hours 50 minutes.
• Mixed: 60°C for mixed soiled dishes with dried food residues, about 3 hours.
• Fast Wash & Dry: 50°C for everyday soils with optimal cleaning and drying in a shorter time, about 1 hour 25 minutes.
• Crystals: 45°C for delicate items that are more sensitive to high temperatures, such as glasses and cups, about 1 hour 40 minutes.
• Fast Wash 30': 50°C for lightly soiled dishes without dried food residues, in about 30 minutes.
• Silent: 50°C for night-time operation with optimal cleaning and drying at the lowest noise emission, about 3 hours 30 minutes.
• Sanitizing: 65°C disinfecting cycle for bottles, rings and teats together with plates, cups and cutlery, about 1 hour 40 minutes.
• Prewash: a 12-minute rinse to refresh crockery that will be washed later, used without detergent.
• Self-Clean: 65°C maintenance cycle run only with the dishwasher empty, using detergents designed for dishwasher maintenance.
• Options: Multizone, Power Clean, Turbo, Delay and Tablet.
• Indicators: salt refill, rinse aid refill, tablet, Multizone and option lights, programme number and delay time display, and a floor-projected operation indicator.

• Model: WIO3033PELAUS
• Type: Fully Integrated Dishwasher
• Finish: Fully integrated (custom cabinetry panel required)
• Width: 60cm
• Place Settings: 15
• Baskets: 2 + flexible cutlery drawer
• Display: Electronic
• No. Of Programs: 11
• Delay Timer: 1-12 hours
• Half Load: Multizone
• Drying System: NaturalDry (automatic door opening)
• Water Connection: Hot or cold
• Safety: Aquastop + overflow protection
• Noise: 43 dB(A)
• Energy Rating: 3.5 Star
• Energy Consumption: 258 kWh per year
• Energy Registration Numbers: ADW1246, ADW1307
• Water Rating: 4.5 Star
• Water Consumption: 13.5 litres per wash - Eco 50°C, in accordance with AS/NZS 6400
• Registration Number: D02502
• Licence Number: 0367
• Rated Power: 1900W
• Current: 10A
• Voltage: 220-240V, 50Hz
• Power Consumption (Left-On Mode): 5W
• Power Consumption (Off Mode): 0.5W
• Electrical Cord Length: 130cm
• Inlet Hose Length: 155cm
• Outlet Hose Length: 150cm

• Installation type: Fully integrated under-bench dishwasher for a standard 60cm cabinet opening; a cabinetry door panel from a cabinet maker or supplier must be fitted to the front.
• Cavity size: Minimum 600mm wide and 560mm deep, with a cavity height between 820mm and 900mm.
• Door panel: Maximum door panel weight of 10kg and maximum panel height of 720mm, attached using the supplied template and fixings.
• NaturalDry steam protection: Fit the supplied steam protection strip under the benchtop as shown in the installation guide, to protect the cabinetry when NaturalDry opens the door.
• Water supply: Connect to a hot or cold water tap using the supplied inlet hose (approx. 1500mm); water pressure between 0.05 MPa (0.5 bar) and 1 MPa (10 bar).
• Drain: The drain hose (approx. 1500mm) must not be kinked, and the drain connection must be at a height between 400mm and 800mm with a minimum internal diameter of 25mm.
• Electrical supply: 220-240V, 50Hz, 10A earthed power outlet within reach of the approx. 1300mm power cord; do not use extension cords or adaptors.
• Levelling and fixing: Level the dishwasher using the adjustable feet and fix it to the adjacent cabinetry or benchtop with the supplied screws.
• Before first use: Remove the rack stoppers and retaining elements, set the water hardness, fill the salt reservoir with water and dishwasher salt, and run a programme without a load.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The WIO3033PELAUS (registered as WIO3O33PELAUS) carries a 3.5 Star energy rating on the Australian Government Energy Rating register, with an energy consumption of 258 kWh per year under registration numbers ADW1246 and ADW1307. Under the Water Efficiency Labelling and Standards (WELS) scheme it holds a 4.5 Star water rating, registration number D02502 and licence number 0367, using 13.5 litres per wash on the Eco 50°C programme.

The Eco 50°C cycle is tested to AS/NZS 2007. Although it takes longer than other cycles, it uses less energy and is less harmful to the environment, and pre-rinsing dishes before loading is not needed for any programme. Programme durations are estimates and can vary with water temperature and pressure, load size, detergent and selected options.

The built-in water softener regenerates itself with dishwasher salt, using about 3.5 litres of water and up to 5 extra minutes per regeneration. Whirlpool appliances are distributed in Australia by Arisit Pty Limited, 40-50 Mark Anthony Drive, Dandenong South VIC 3175.

• Dishwasher: 1 x WIO3033PELAUS 60cm fully integrated dishwasher.
• Baskets: Upper rack, lower rack and third-level cutlery rack.
• Steam protection strip: For protecting the benchtop when NaturalDry opens the door.
• Installation kit: Door panel template, fixing screws and screw covers for mounting the panel and securing the dishwasher.
• Documentation: Daily reference guide, safety instructions and installation guide.

• WIO3033PELAUS SPECIFICATION SHEET (PDF)
• WIO3033PELAUS USER MANUAL (PDF)
• WIO3033PELAUS INSTALLATION GUIDE (PDF)
