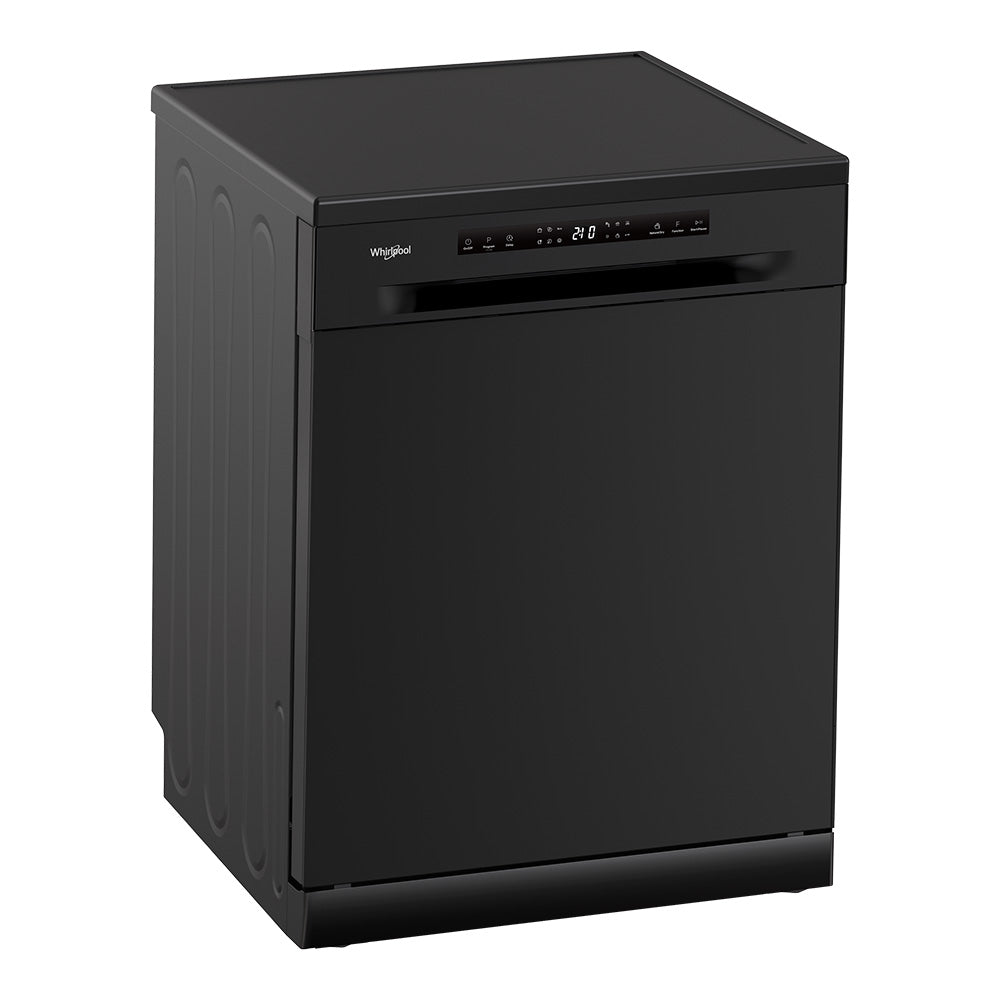

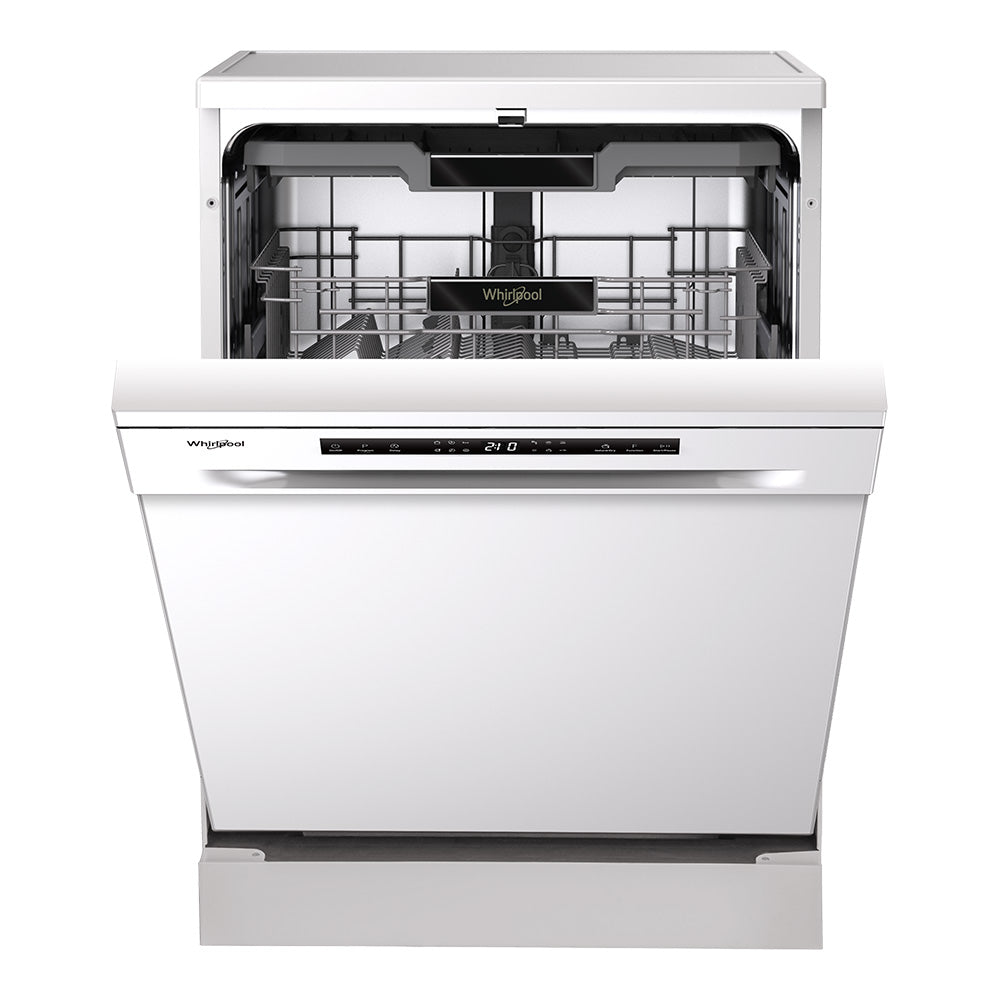

Whirlpool WDFS3R4O 60cm Wide 14 Place Setting Freestanding Dishwasher

• Natural Dry: the factory default setting. The door opens automatically during or after the drying phase so steam can escape and dishes dry better. The Natural Dry button on the panel turns it on or off, and a panel indicator shows when it is active.
• Zone Wash: press the Function button to wash only the upper rack or only the lower rack. The matching Upper Zone or Lower Zone indicator lights up and only that spray arm operates, which is ideal when you do not have a full load.

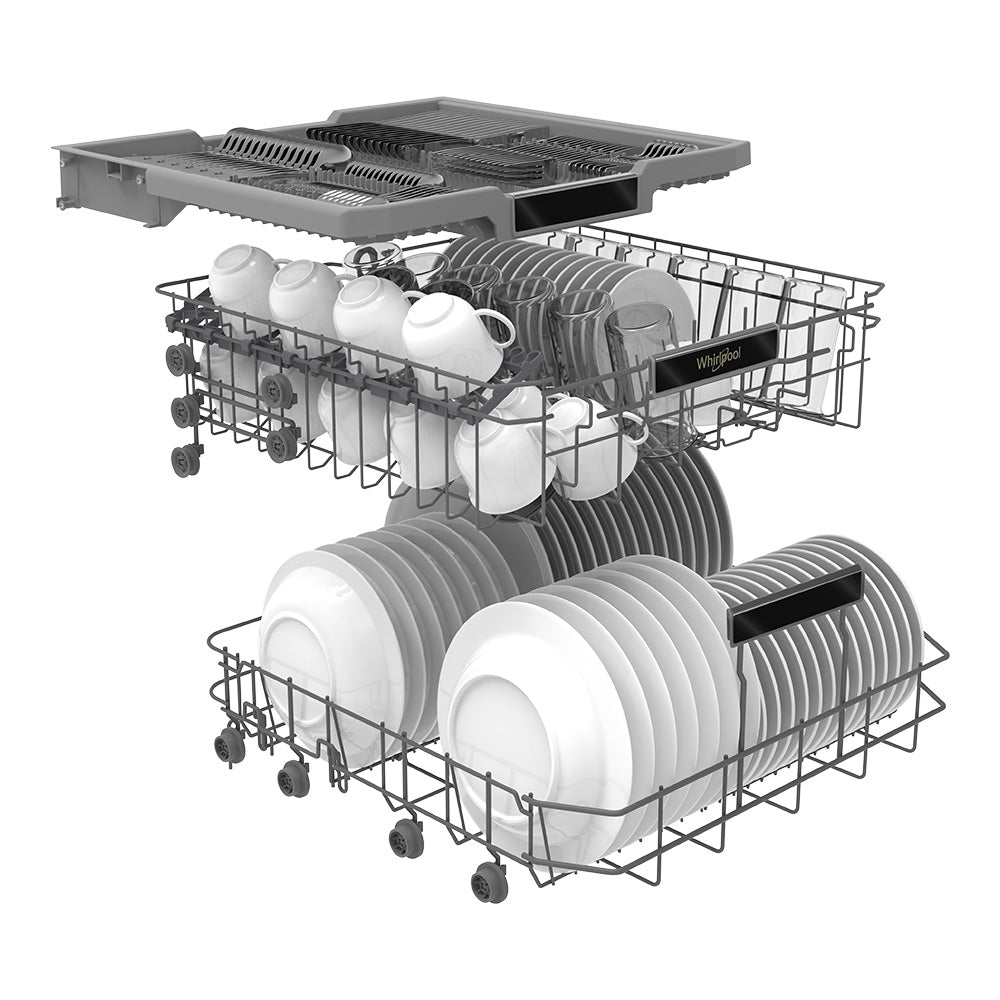

• 3rd Rack and cutlery rack: cutlery is arranged so water flows freely around it, and long items such as serving cutlery and salad servers lie flat in the rack, clear of the spray arms. This frees up space below for larger cookware.
• Rapid Wash: cleans lightly soiled dishes in 47 minutes, with a 65°C main wash and 7.5 litres of water per cycle. It does not include a drying phase.
• Six programmes: Intensive, Light, Eco, Mixed (Daily), Rapid and Prewash, from an 18 minute rinse to a 182 minute heavy-duty wash.

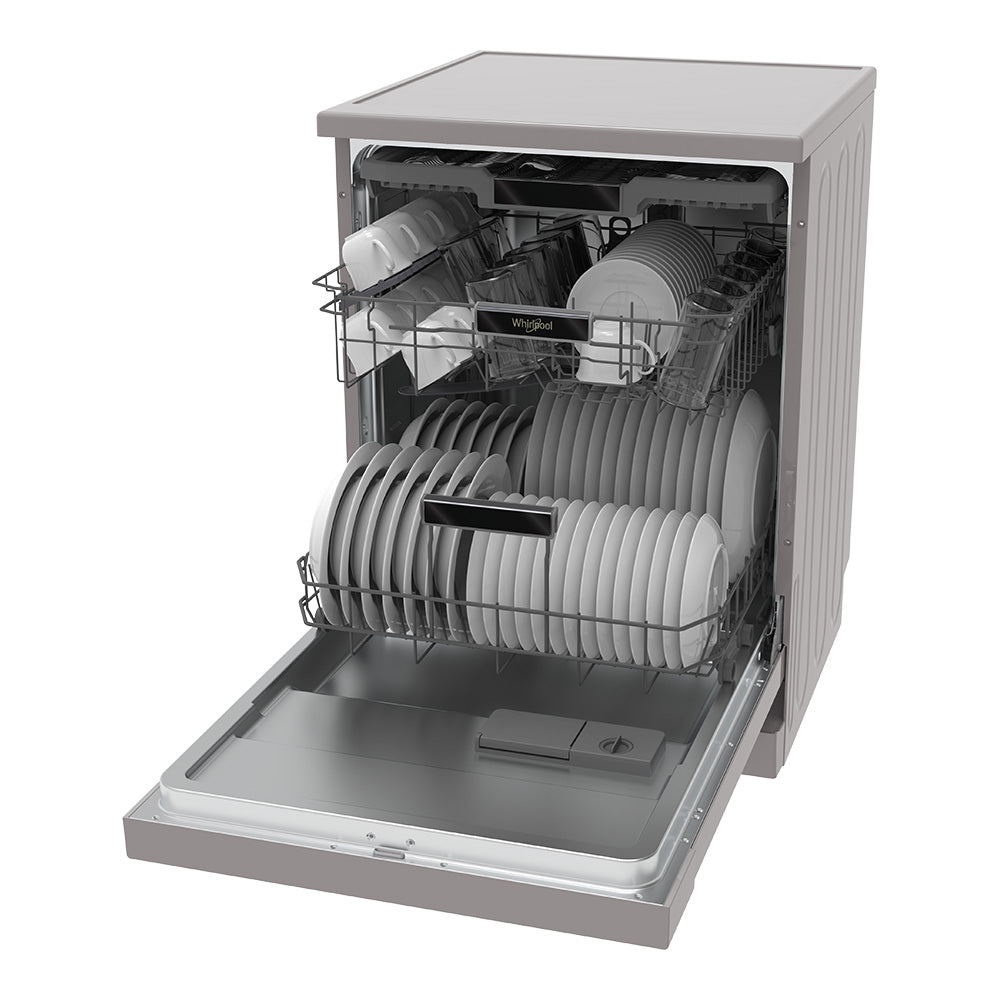

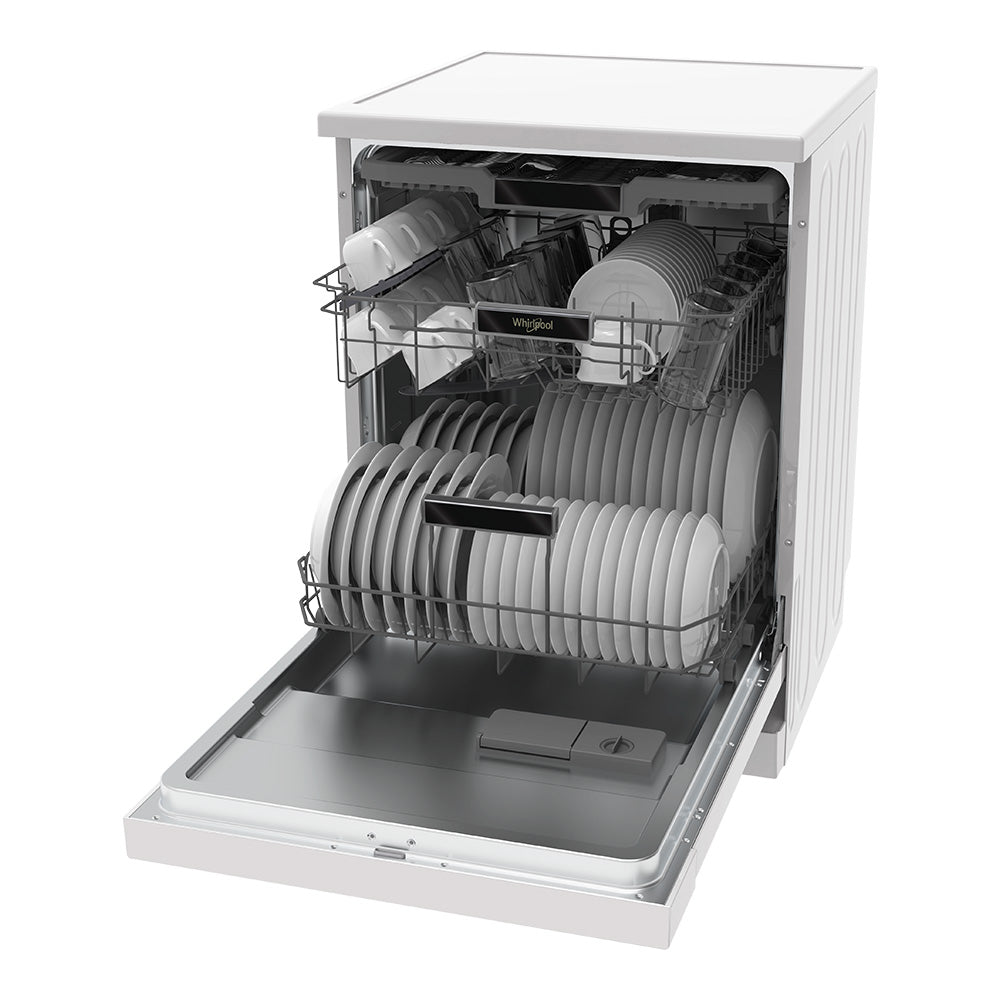

• Flexible racks: the upper rack height can be adjusted by moving its wheels along the rails in the tub to make room for large items in either rack. Both racks have tip-up supports that fold into a vertical position for bowls, pots and pans, and cup holders keep cups and glasses secure.
• Delay start: delay the start of a programme by up to 24 hours. The display shows the set delay time and then the remaining programme time.
• Three-part filter assembly: a stainless steel plate filter, cup filter and cylindrical filter trap food residue so it is not recirculated onto your dishes.
• Rinse aid dispenser: holds around 140ml with four dosage settings and a refill indicator on the panel, helping to prevent water spots and streaks and make drying easier.
• Aquastop and overflow protection: Aquastop safety protection is built in, and if an overflow is detected the circulation pump shuts off and the drain pump turns on.
• Child Lock: press and hold the Program button for 3 seconds to lock the controls, with a panel indicator showing when it is on.
• Clear LED display: shows remaining programme time, delay time and error codes, with indicators for a closed water tap, rinse aid refill, Zone Wash, Natural Dry and Child Lock.
• Detergent flexibility: works with conventional and concentrated dishwasher detergents, with the Eco programme designed for concentrated detergents. Tablets can be used on every programme except Prewash and Rapid.
• Quiet operation: 49dB noise level.
• 5 Star WELS water rating and 3.5 Star energy rating: 11.5 litres per wash and 270 kWh per year. The Eco programme meets AS/NZS 2007.1.

Programme guide (per the Whirlpool user manual programmes table):

• Intensive: for heavily soiled loads such as pots, pans, casserole dishes and dishes with dried-on food. Main wash at 65°C, rinse and dry. 182 minutes, 1.415 kWh and 13.3 litres per cycle.
• Light: for delicate items that are sensitive to high temperature. Run the programme immediately after loading. Pre-wash, main wash at 60°C, rinse and dry. 168 minutes, 1.387 kWh and 14.0 litres per cycle.
• Eco: an environmentally friendly programme with a low energy consumption level, suited to normally soiled loads. Prewash, main wash at 44°C, rinse and dry. 177 minutes, 0.740 kWh and 11.4 litres per cycle. Although it runs longer than the other programmes, it uses less energy and is less harmful to the environment.
• Mixed (Daily): an everyday programme for lightly and normally soiled plates and pans. Run the programme immediately after loading. Prewash, main wash at 60°C, rinse and dry. 90 minutes, 1.400 kWh and 13.9 litres per cycle.
• Rapid: for lightly soiled loads without dried-on food residue. Main wash at 65°C and rinse, with no drying phase. 47 minutes, 1.057 kWh and 7.5 litres per cycle.
• Prewash: refreshes a load that is planned to be washed later. Rinse only, with no detergent. 18 minutes, 0.330 kWh and 7.5 litres per cycle.
• Detergent dosing: the table lists 5g for the prewash and 27.5g for the main wash on Intensive, Light, Eco and Mixed, and 20g for the main wash on Rapid. In general, only one tablespoon of detergent is needed for a normal load.

Functions:

• On/Off: turns the power supply to the dishwasher on and off.
• Program button: press to select a suitable programme, and the matching programme indicator light comes on.
• Delay: press to delay the start time by up to 24 hours. The display shows the set delay time.
• Function (Zone Wash): press to activate or deactivate the Upper or Lower Zone wash. The Upper Zone or Lower Zone indicator lights to show which spray arm is operating.
• Natural Dry: press to activate or deactivate the Natural Dry system, which automatically opens the door during or after the drying phase. It is the factory default. If it has been deactivated, open the door slightly (about 60mm) after the programme for better drying.
• Start/Pause: press once to start a programme and press again to pause it.
• Child Lock: press and hold the Program button for 3 seconds. The Child Lock indicator flashes 6 times and then stays on.
• Display and indicators: the display shows the remaining programme time, the set delay time and error codes. Separate indicators show a closed water tap, rinse aid needing a refill, Upper Zone, Lower Zone, Natural Dry and Child Lock.
• Starting a programme: load the lower rack first, add detergent, make sure the water supply is turned on at full pressure, close the door and press On/Off. Select a programme and press Start/Pause. When the programme finishes the buzzer sounds 6 times; turn the appliance off with On/Off, turn off the water tap and open the door.
• Changing a running programme: only possible if it has been running for a short time, because the detergent may already have been released. Press On/Off twice to turn the appliance off and on, then press Program to choose the new programme (refill the detergent dispenser if needed).
• Adding a forgotten dish: open the door to pause the programme, wait for the spray arms to stop, open the door completely, add the dish, close the door and press Start/Pause to continue.
• Force drain: hold the Function button for 3 seconds while a programme is operating to stop the programme and force the dishwasher to drain.
• Door opened during a wash: the appliance sounds a buzzer and the display shows E1. Close the door and press Start/Pause to continue.
• Error codes: E1 (door opened), E2 (no water, water inlet malfunction), E4 (temperature sensor malfunction), E6 (water leakage) and F7 (abnormal heating element).

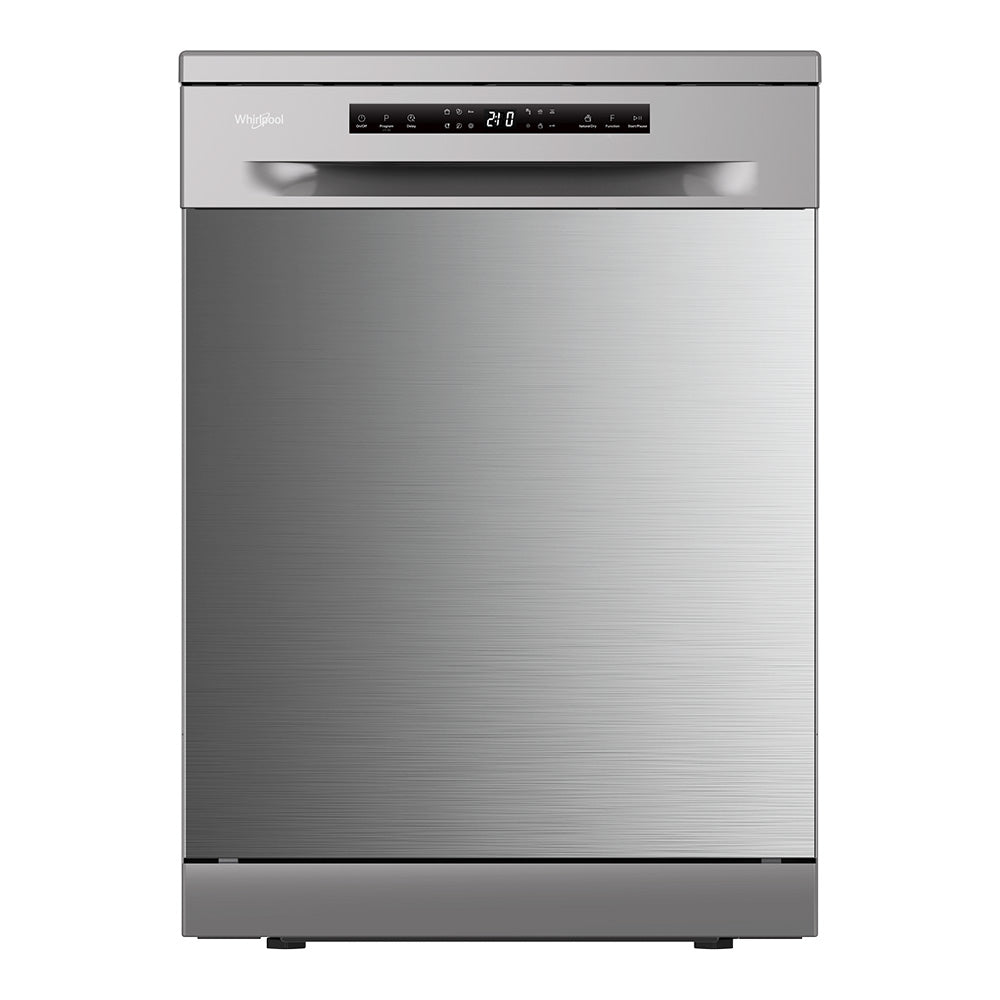

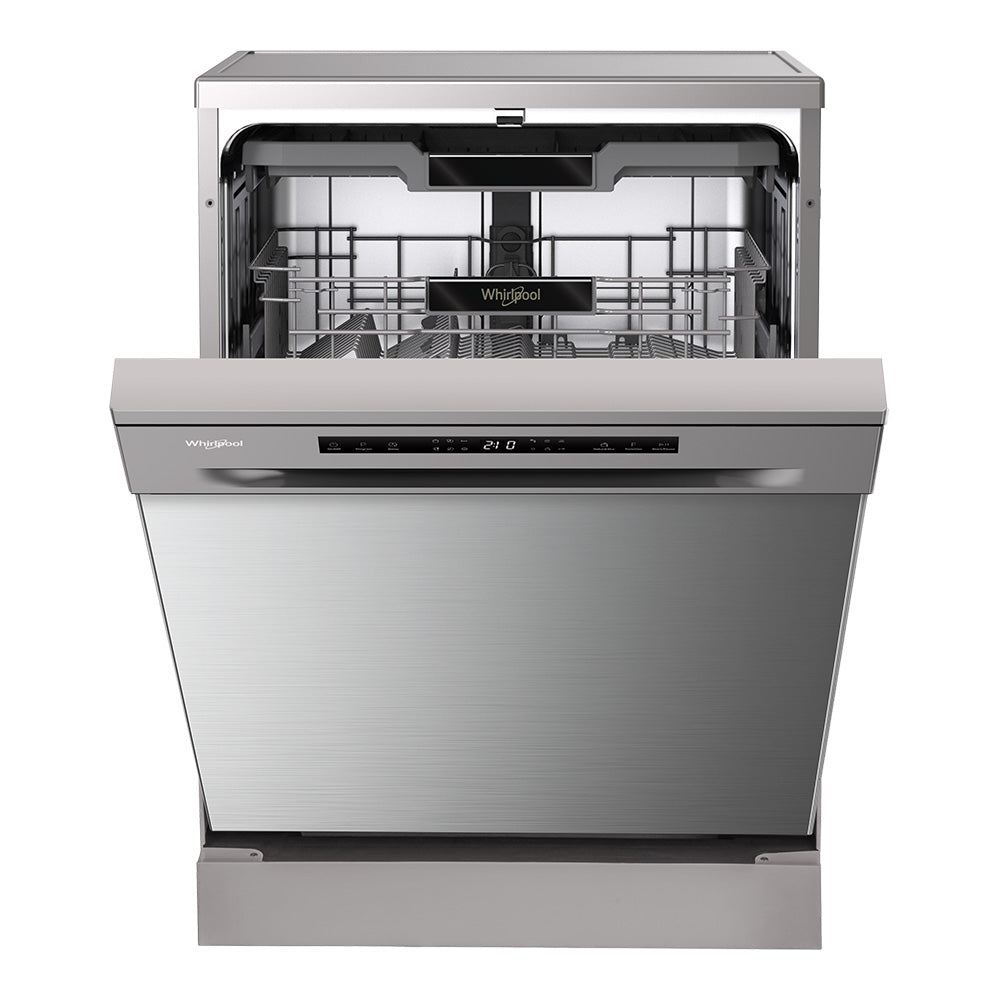

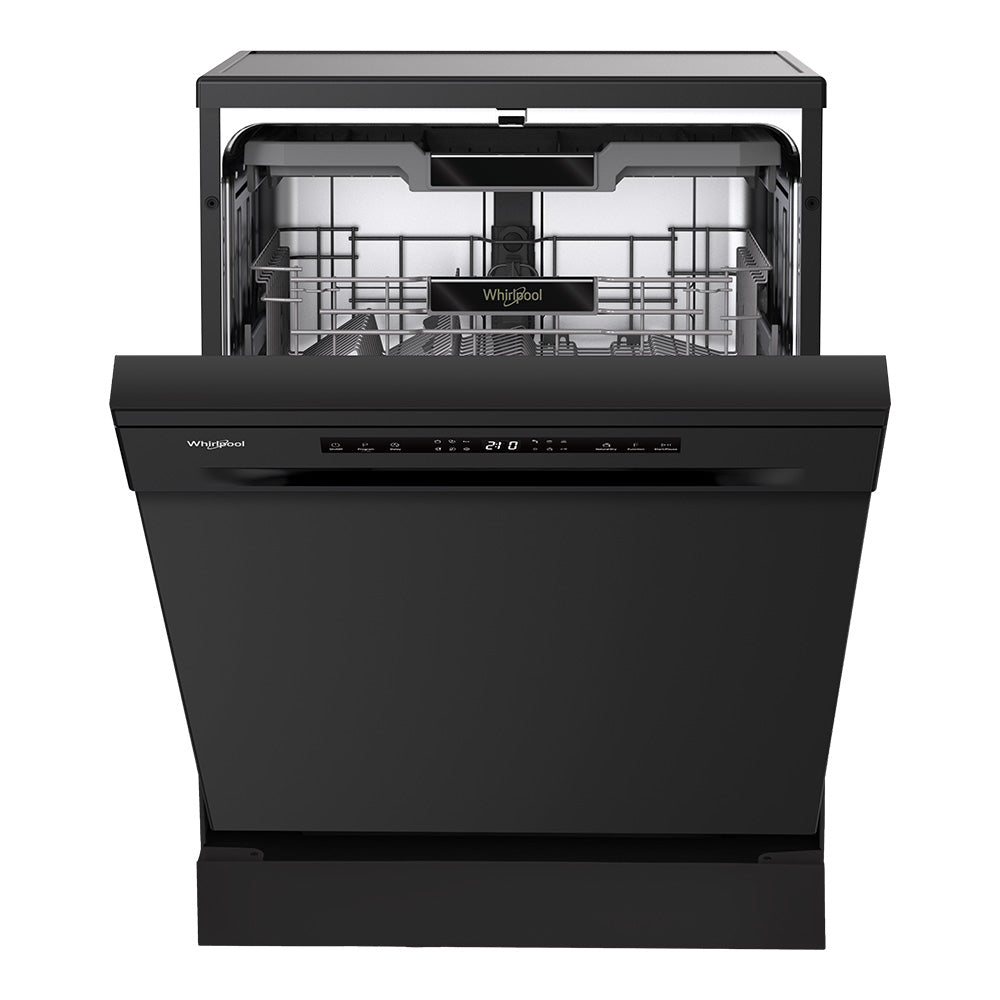

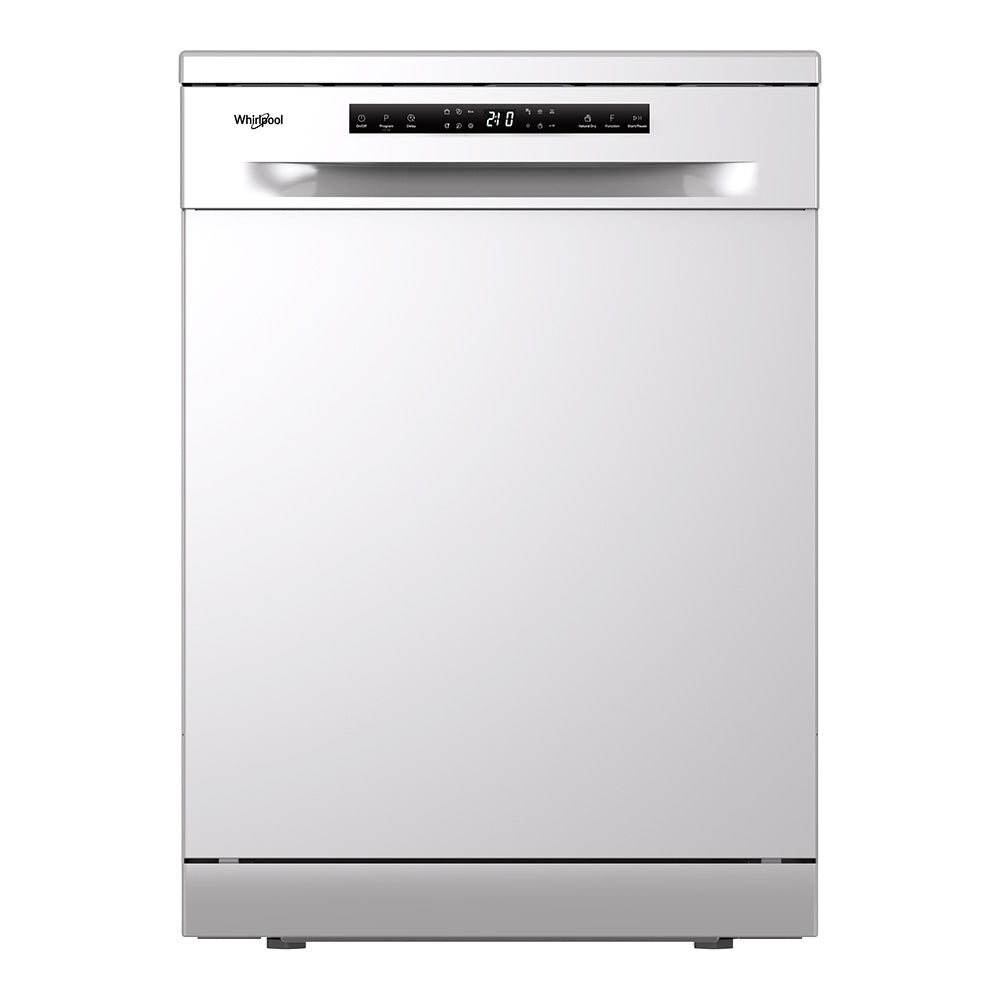

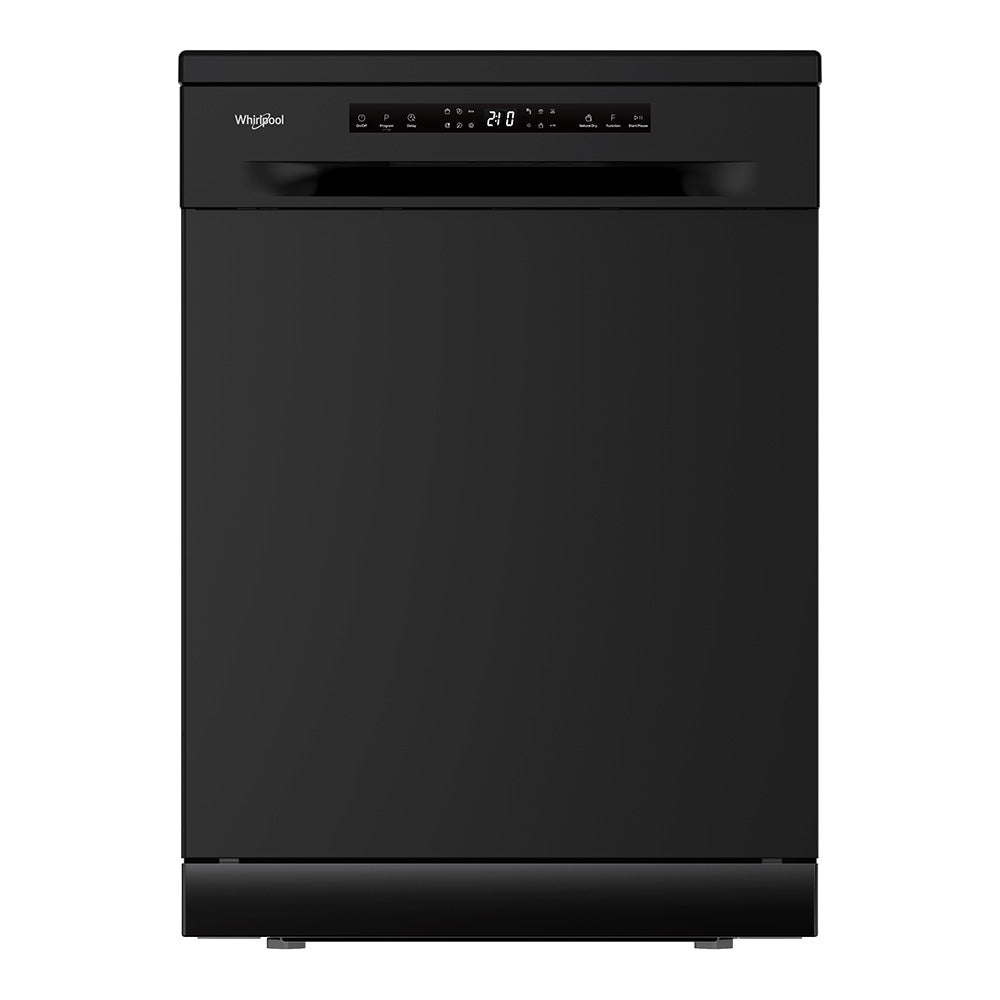

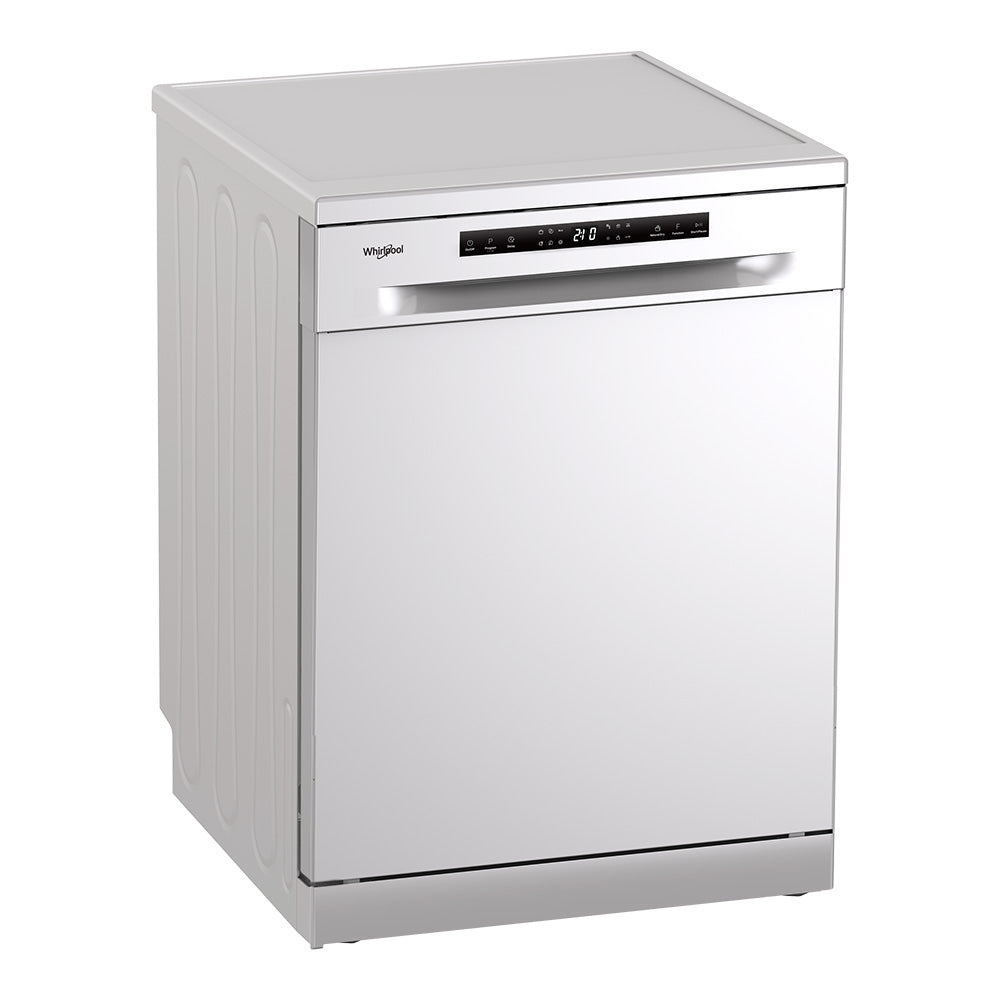

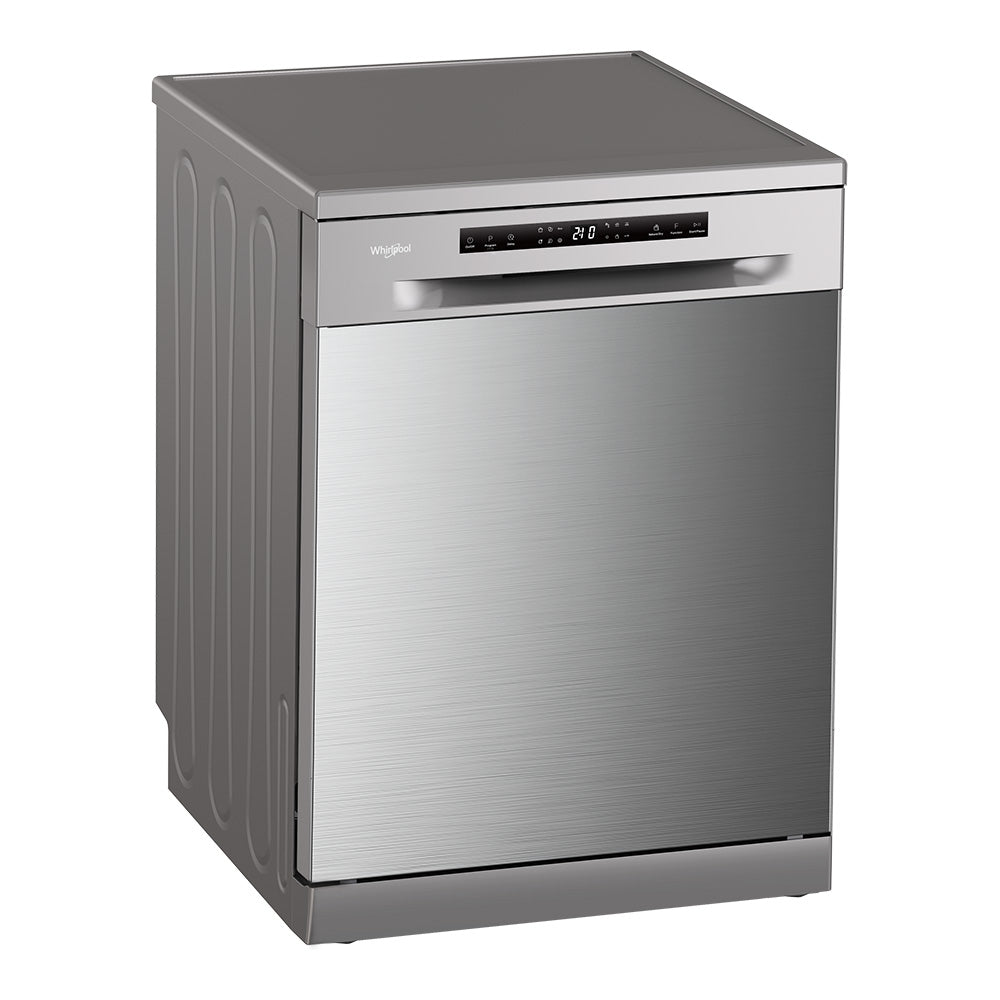

• Model: WDFS3R4OBSAU (Black), WDFS3R4OWEAU (White), WDFS3R4OIXAU (Stainless Steel)
• Type: 60cm Freestanding Dishwasher
• Display: LED Display

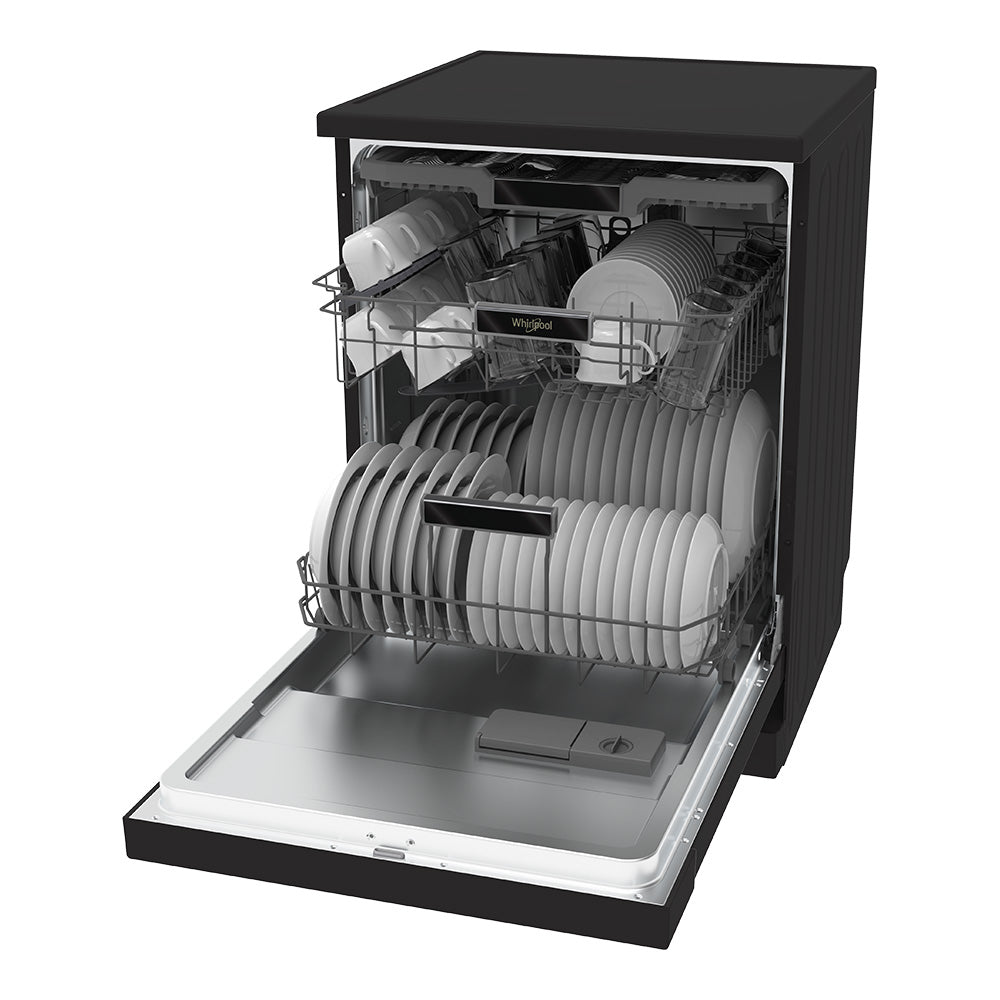

• Capacity: 14 place settings
• Programmes: Intensive, Light, Eco, Mixed (Daily), Rapid, Prewash
• Functions: Zone Wash (Upper, Lower), Natural Dry, Delay (up to 24 hours)
• Indicators: Water supply (closed tap), Rinse aid refill, Child lock
• Safety: Aquastop, overflow detection, Child Lock

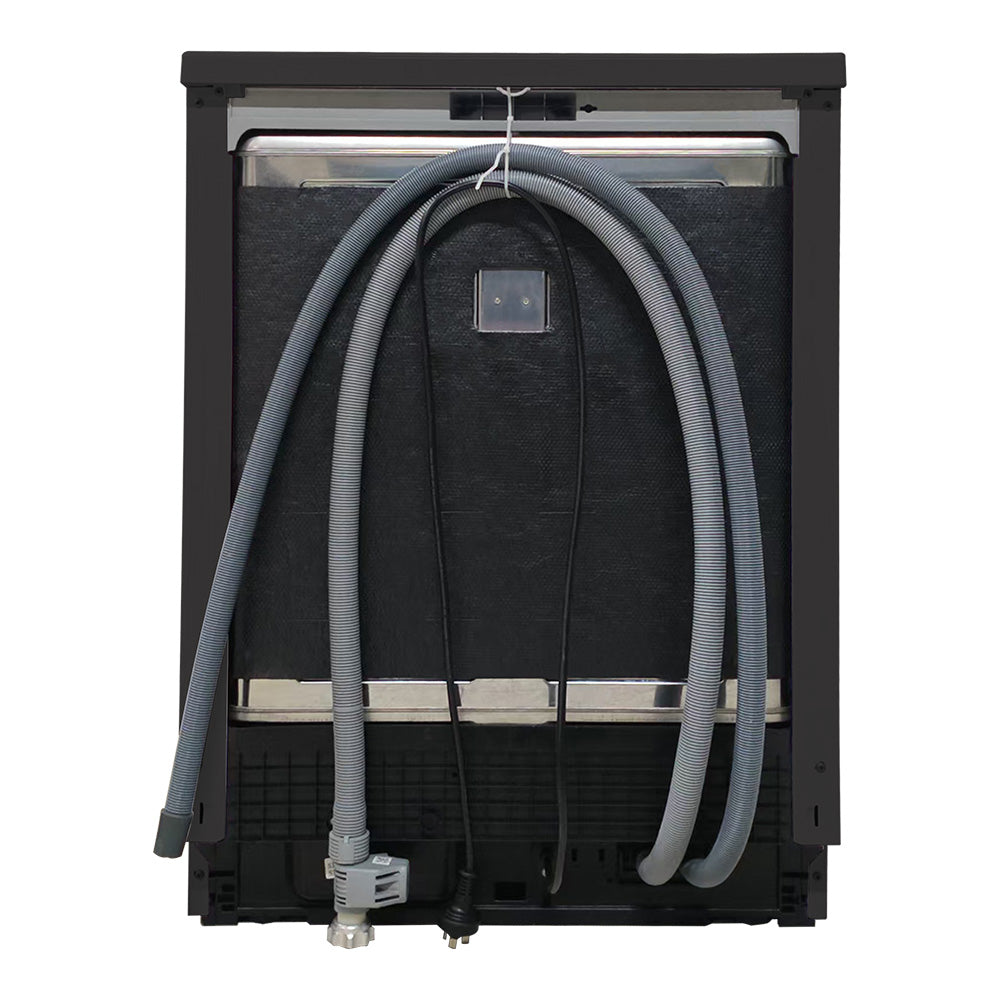

• Accessories: Inlet and outlet hose
• Rinse Aid Dispenser: around 140ml, 4 dosage settings
• Water Rating: 5 Star
• Water consumption: 11.5 litres per wash - In accordance with AS/NZS 6400
• Energy Rating: 3.5 Star
• Energy Consumption: 270 kWh per year
• Eco Programme: 0.740 kWh and 11.4 litres per cycle, 177 minutes
• Registration Number: D47079 (Black, WDFS3R4OBSAU), D47078 (White, WDFS3R4OWEAU), D47080 (Stainless Steel, WDFS3R4OIXAU)
• Licence Number: 0367
• Noise Level: 49dB
• Rated Power: 1850W
• Voltage: 220-240V~ 50-60Hz
• Current: 10 amp
• Plug Type: Australian plug
• Water Pressure: 0.04 - 1.0 MPa
• Hot Water Connection: Maximum 60°C
• Length of Hose: 1500mm
• Length of Power Cord: 1500mm

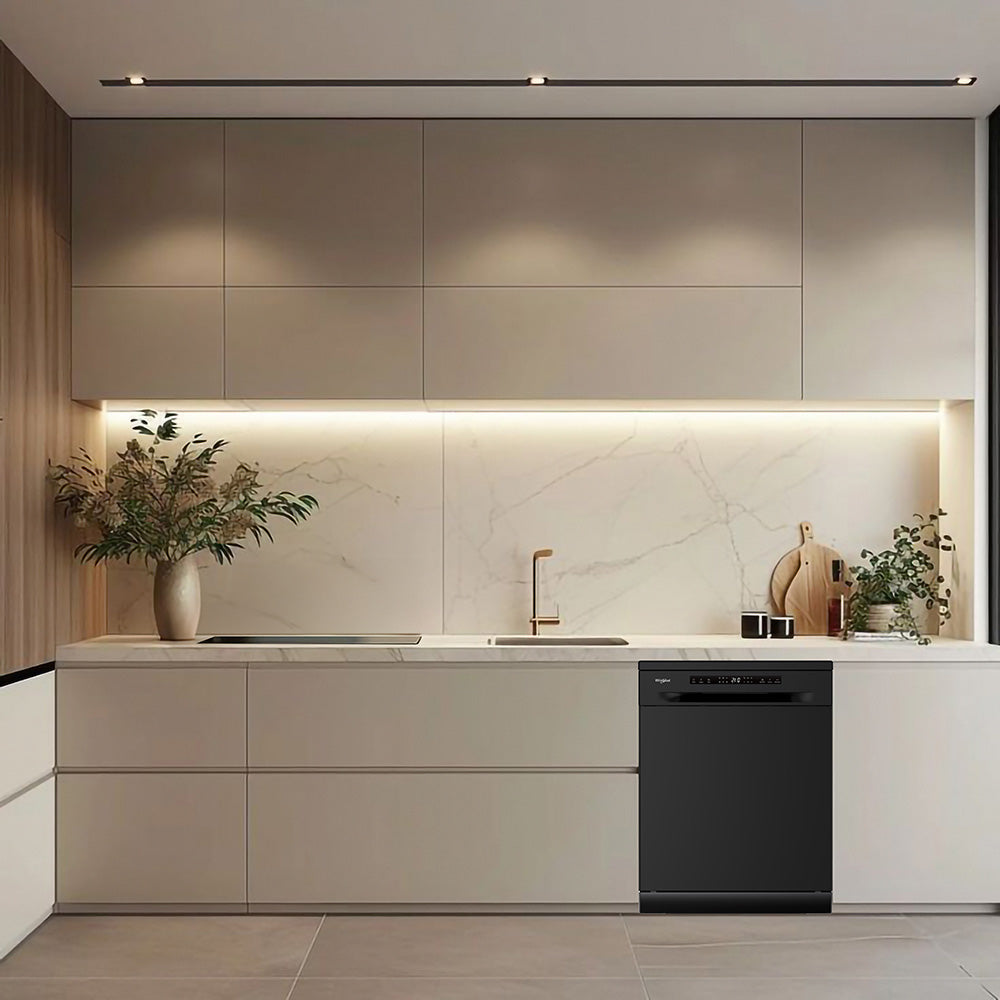

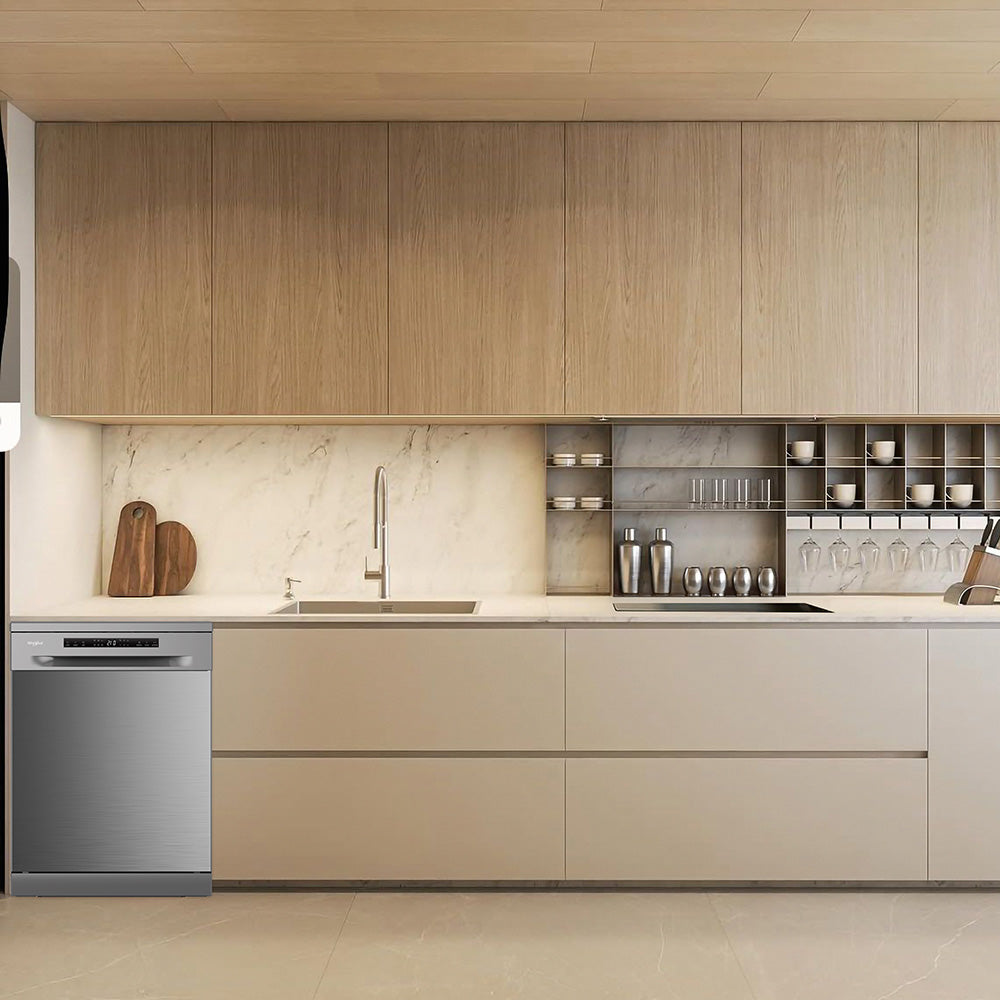

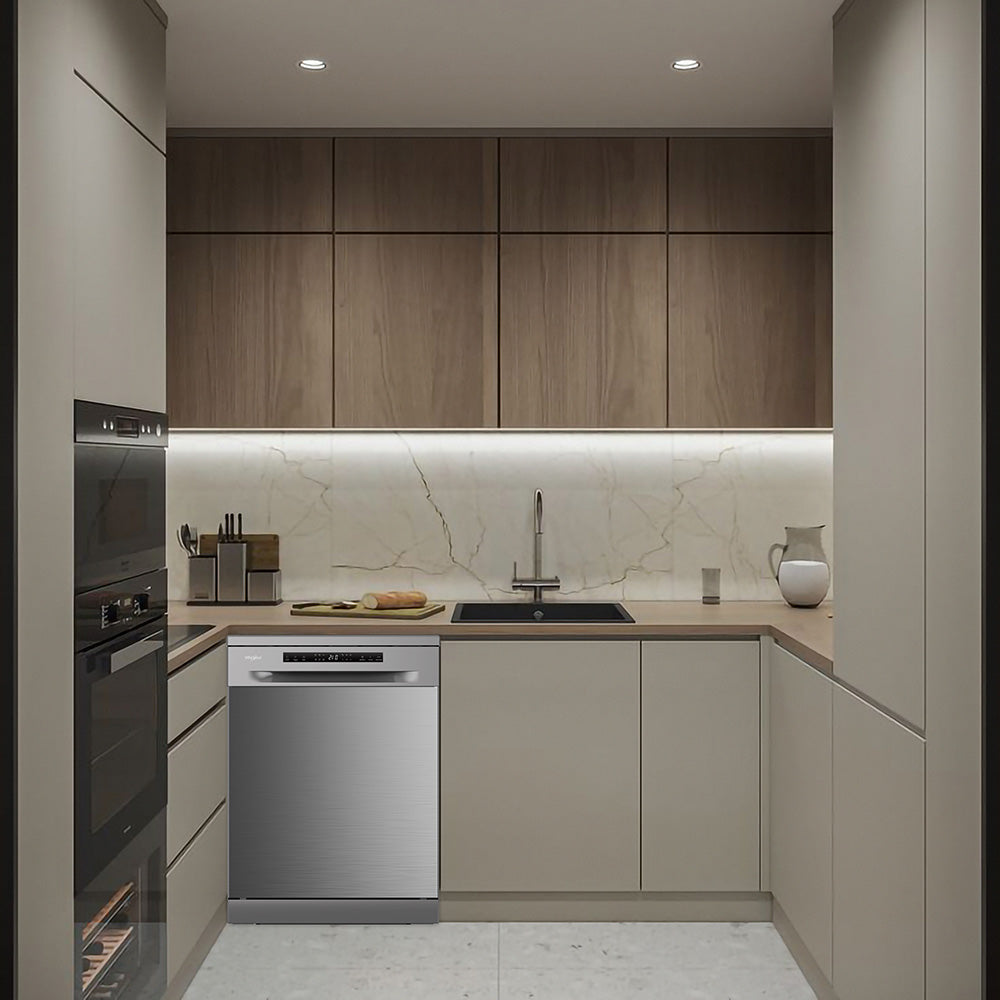

• Installation type: freestanding, or recessed under a single worktop (refer to the separate installation guideline). The installation of the pipes and electrical equipment should be done by professionals.
• Unpacking: unpack the appliance, remove all packaging and check it has not been damaged in transport. Take all packaging and the documentation bag out of the dishwasher before use.
• Positioning: place the dishwasher so its sides or back panels are in contact with the adjacent cabinets or the wall, on a level and sturdy floor. The back should rest against the wall behind it, and the water supply and drain hoses can be positioned to the right or left to suit installation.
• Levelling: adjust the height of the feet (by screwing them) until the dishwasher is level. The angle of inclination must not exceed 2 degrees, and the maximum adjustment height of the feet is 2cm.
• Water inlet: connect cold water to a threaded 3/4 inch connector and tighten firmly to avoid leakage. Use the new hose sets supplied and do not reuse old hose sets. If the hoses have not been used for a period of time, run water for a while to make sure it is clear before connecting.
• Water drain: insert the drain hose into a drain pipe with a minimum diameter of 4cm, or run it into the sink, making sure it is not bent. The top of the hose should sit between 40cm and 100cm above the floor, the free end must not be immersed in water, and the maximum drain hose length is 4m. Secure the drain hose so it does not come off during operation.
• Avoiding siphoning: the water connection must be at a height between 40cm (minimum) and 100cm (maximum) from the floor, with the drain hose fixed by a hose clip. If the sink is higher than 100cm from the floor, excess water in the hoses cannot drain directly and must be drained into a suitable container held lower than the sink.
• Water supply: water pressure of 0.04 - 1.0 MPa. A hot water connection of up to 60°C is permitted.
• Electrical: 220-240V~ 50-60Hz, 10 amp Australian plug. The socket must be earthed, comply with local regulations, withstand the maximum power on the rating plate on the side of the door, and be compatible with the plug. Do not use extension cables or multiple sockets, keep the socket easily accessible, and do not bend or compress the cable. A damaged power cord must be replaced by a qualified technician.
• Before first use: check the dishwasher is levelled and fixed, the inlet valve is open, there is no leakage at the water connections, the wires are tightly connected, the power is switched on and the inlet and drain hoses are not knotted. Fill the rinse aid dispenser before running the first programme.
• Moving the appliance: keep it in an upright position; if it must be laid down, lay it carefully on its back with the front facing up.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Use only detergents designed for dishwashers. Concentrated, low-alkaline detergents with natural enzymes work best with the Eco programme, which is designed to get the most from them. Tablets are not recommended for the Rapid programme, as residue can be left on dishes when the programme is short and the tablet does not fully dissolve. Tablets can be used on every programme except Prewash and Rapid. Fill the dispenser before each programme, load detergent into the main wash compartment, and if you want to add detergent for the prewash phase place about 5g directly inside the tub. Always add detergent just before starting each programme, as damp detergent may not dissolve properly. Dishwasher detergents are strongly alkaline and dangerous if swallowed, so keep them away from skin, eyes and children.

For the rinse aid, use only liquid rinse aid designed for dishwashers, and never fill the dispenser with any other substance. The dosage dial has four settings and the default is 4; if you see water droplets or lime spots after washing, set a higher number, and if you see bluish or sticky whitish streaks, set a lower number. Load the lower rack first with large items such as pots, pans, lids and serving dishes, placing deep pots upside down or at an angle so water can drain, and arrange cups, glasses and small bowls in the upper rack. Do not overload the dishwasher: it is designed for 14 place settings, and overloading reduces washing performance and energy efficiency. Wooden crockery and cutlery, delicate hand-painted or antique crockery, parts in synthetic material that cannot withstand high temperatures, and copper and tin crockery are not suitable for washing in a dishwasher.

At the end of the wash, wait a few minutes before unloading so dishes are not hot and more susceptible to breakage, and unload the lower rack first so water does not drip from the upper rack onto the dishes below. It is normal for the dishes and the inside of the dishwasher to be damp after a programme, and for some steam to come through the vent during drying. If the dishwasher has not been used for a while, run a quick programme to let it fill and drain for maintenance. The manual also covers common issues such as excessive foam, cloudy glasses, limescale and unusual noise. Actual programme duration and consumption vary with load, soil level and the programme selected. Whirlpool appliances are distributed in Australia by Arisit Pty Limited, based in Dandenong South, Victoria.

• Dishwasher: 1 x WDFS3R4O 60cm 14 place setting freestanding dishwasher in your chosen finish: Black (WDFS3R4OBSAU), White (WDFS3R4OWEAU) or Stainless Steel (WDFS3R4OIXAU).
• Racks and cutlery rack: upper rack, lower rack and cutlery rack with tip-up supports and cup holders.
• Filter assembly: stainless steel plate filter, cup filter and cylindrical filter, fitted in the tub.

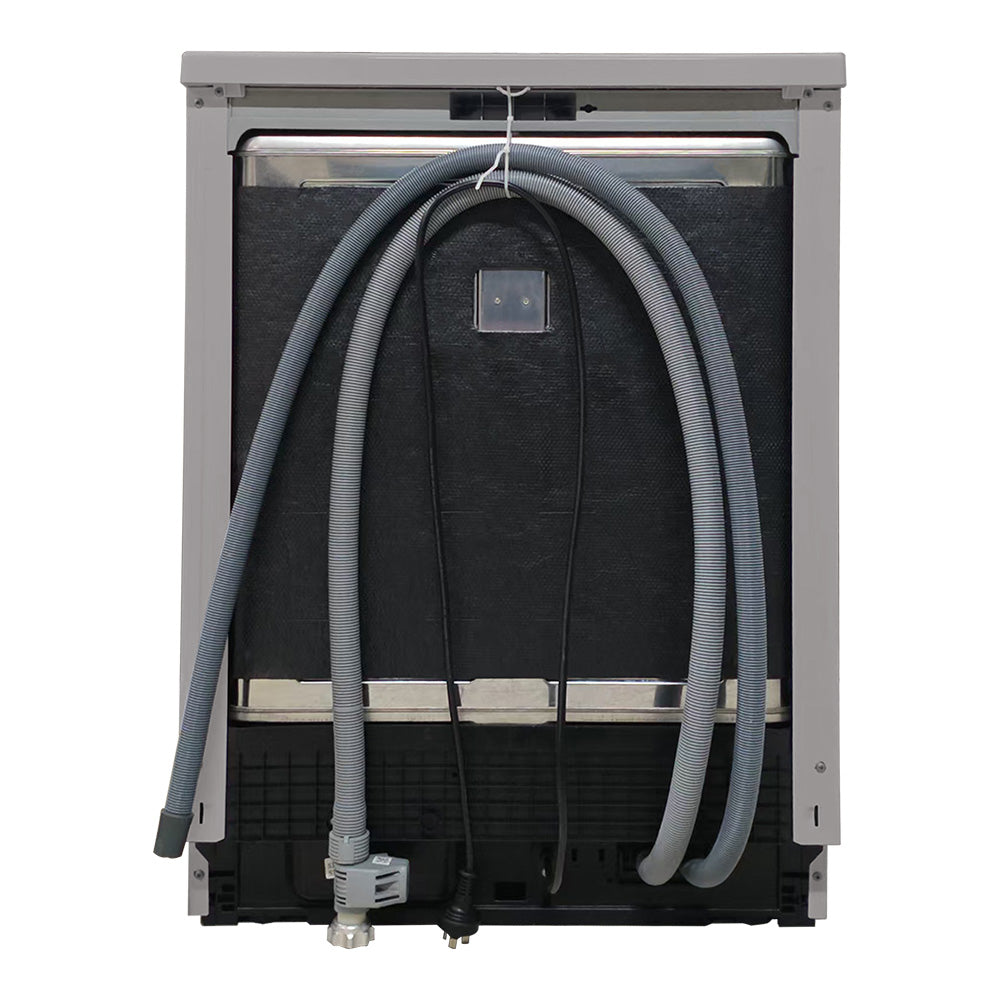

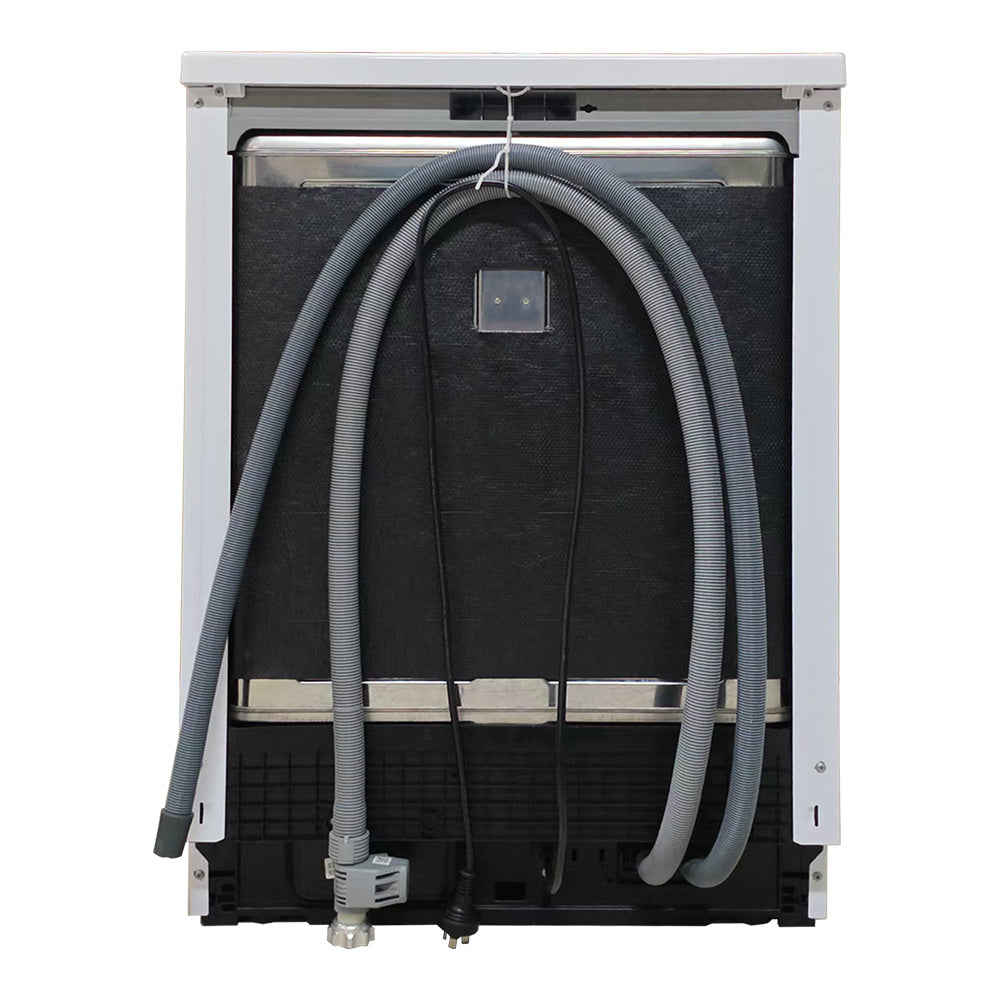

• Hoses: inlet and outlet hose (1500mm) and a 1500mm power cord with Australian plug.
• Documentation: user manual.
