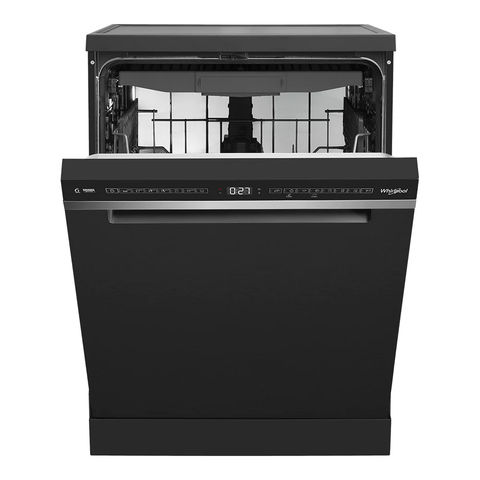

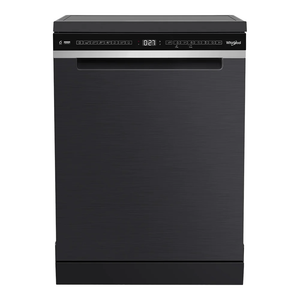

Whirlpool WDFS3R4N 60cm Maxi-Tub 14 Place Setting Freestanding Dishwasher

• 6th SENSE Technology: automatically senses how dirty the dishes are and adapts the cycle time and water pressure accordingly, saving water, energy and time.

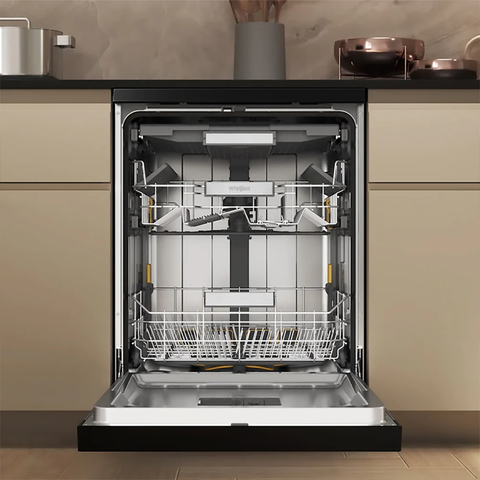

• Maxi-Tub: a larger internal usable space gives you greater ease and versatility to fit all your soiled dishes, with capacity for 14 place settings.
• NaturalDry: the door opens automatically at the end of the programme for better, more natural drying and higher energy efficiency. It can be switched off in the settings menu.
• Half Load: when there are only a few dishes to wash, Half Load saves water, electricity or time depending on the selected programme.
• Sani Rinse: raises the final rinse temperature and adds an antibacterial wash to sanitise dishes, ideal for crockery and feeding bottles.
• Turbo: reduces the programme time by up to 40% depending on the selected programme, with increased energy and water use.
• Extra Dry: a higher final rinse temperature and extended drying phase for improved drying results.
• Silent option: limits noise emissions during the wash phases for night-time use; a 3-second press also activates the key lock.

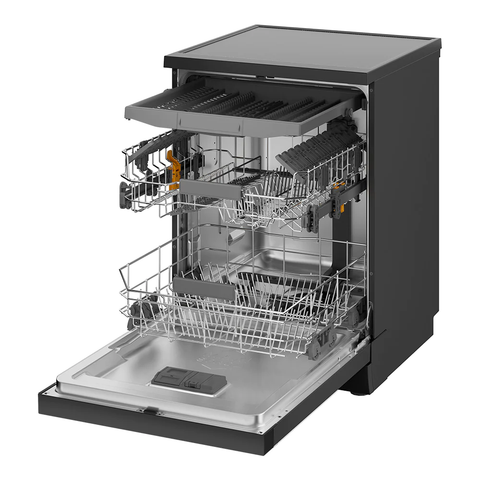

• Flexible upper rack: the upper rack height can be adjusted, with tip-up supports and foldable flaps that hold wine glasses by the stem.
• Dual inverter motors: reliable dual inverter BLDC motors for more energy-efficient and quieter operation.
• Delay start: delay the start of the programme from 30 minutes up to 24 hours.
• Descale alert: a DESCALE indicator warns when limescale builds up on internal components, prompting a descale with the Self-Clean programme.

• Eco 50°C: environmentally friendly standard cycle for normally soiled loads, about 3 hours 40 minutes, using 11.53 litres and 0.58 kWh per cycle.
• Auto Intensive 65°C: automatic programme for heavily soiled crockery, especially pots and saucepans (not for delicate items), about 2 hours 25 minutes to 3 hours 10 minutes.
• Auto Mixed 55°C: automatic programme for mixed soiled dishes with dried food residues, about 1 hour 20 minutes to 3 hours.
• Auto Fast 50°C: automatic programme for everyday mixed soiled crockery, with optimal cleaning and drying in a shorter time of about 1 hour to 1 hour 50 minutes.
• Rapid 45°C: for lightly soiled dishes without dried food residues, in about 30 to 40 minutes; this programme has no drying phase.
• Crystals 45°C: for delicate items that are more sensitive to high temperatures, such as glasses and cups, about 1 hour 40 to 50 minutes.
• Prewash: a 12-minute programme to refresh crockery that will be washed later, used without detergent.
• Self-Clean 65°C: maintenance programme run only with the dishwasher empty, using detergents or descalers designed for dishwasher maintenance.
• Options: Half Load, Turbo, Extra Dry, Silent, Sani Rinse and Delay, plus Key Lock.

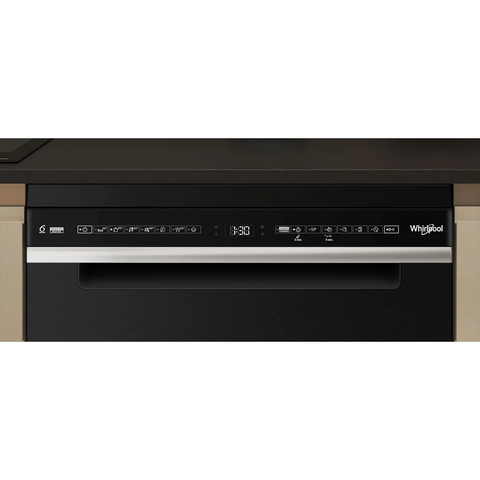

• Indicators: salt and rinse aid refill, closed water tap, DESCALE, programme number and remaining time display, and a sensing animation while 6th SENSE detects the soil level.

• Model: WDFS3R4N (WDFS3R4NIXAU, WDFS3R4NBSAU, WDFS3R4NWEAU)
• Type: Freestanding Dishwasher
• Width: 60cm
• Place Settings: 14

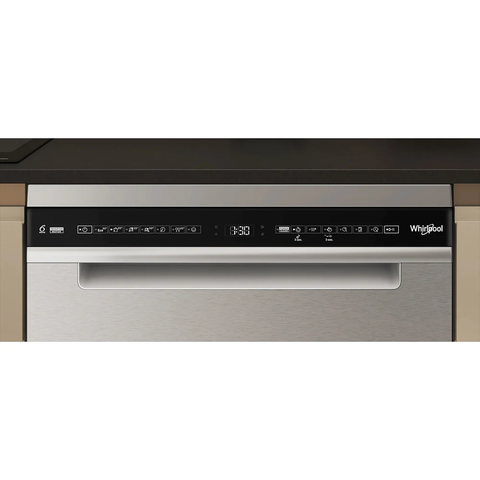

• Display: LED

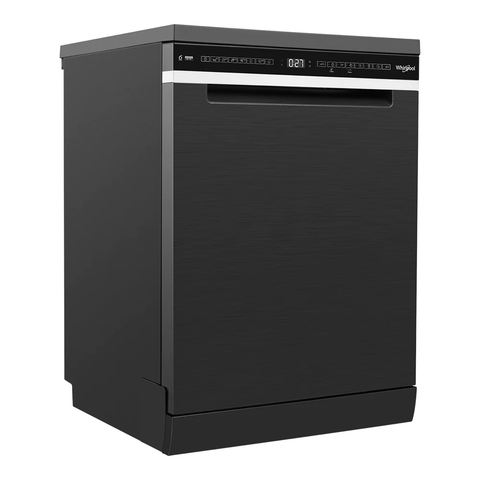

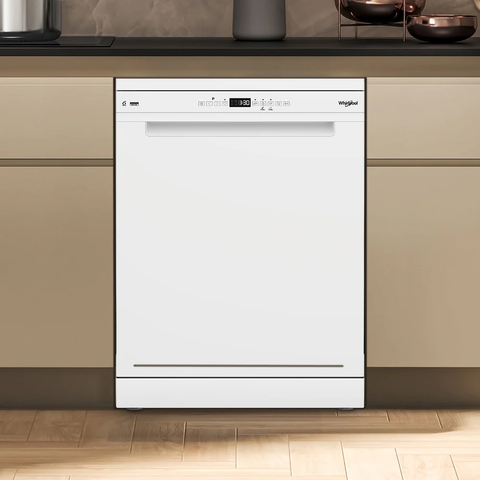

• Control: Touch (Stainless Steel and Black Stainless Steel), Button (White)
• Door / Handle Design: Square
• No. Of Programs: 8
• Delay Timer: 0:30 to 24 hours
• Half Load: Yes
• Drying System: NaturalDry (automatic door opening)
• Motors: Dual inverter BLDC

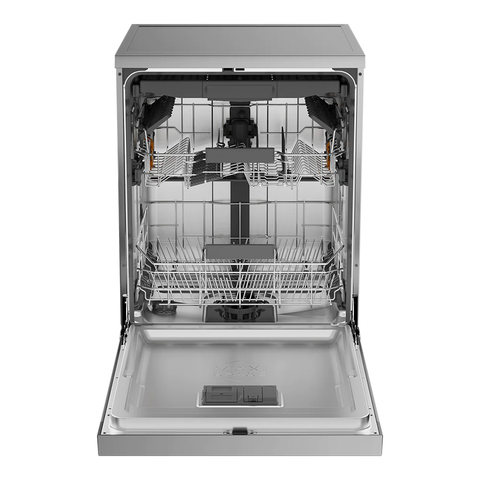

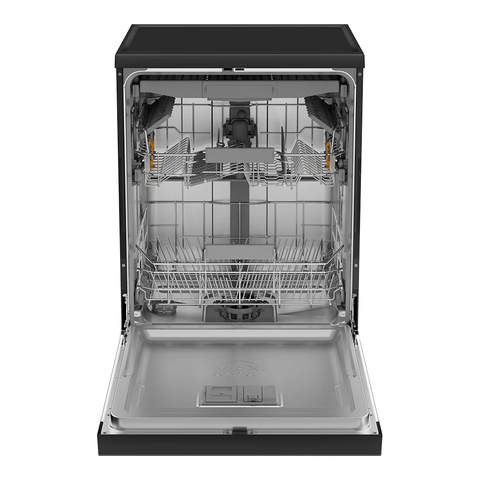

• Racks: Lower rack, height-adjustable upper rack and removable cutlery rack
• Noise: 45 dB(A)
• Energy Rating: 4 Star
• Energy Consumption: 230 kWh per year
• Energy Registration Numbers: ADW1055, ADW1308 (WDFS3R4NIXAU, WDFS3R4NBSAU); ADW1072, ADW1311 (WDFS3R4NWEAU)
• Water Rating: 5 Star
• Water Consumption: 11.5 litres per wash - Eco 50°C, in accordance with AS/NZS 6400
• Registration Number: D02853 (WDFS3R4NIXAU), D02852 (WDFS3R4NBSAU), D02868 (WDFS3R4NWEAU)
• Licence Number: 0367
• Voltage: 220-240V
• Current: 10A
• Plug Type: Australian
• Electrical Cord Length: 130cm
• Inlet Hose Length: 155cm
• Outlet Hose Length: 150cm

• Installation type: Freestanding dishwasher; it can also be slid under a benchtop after removing the worktop, as shown in the installation guide.
• Under-bench cavity: Minimum 600mm wide, 560mm deep and 820mm high, with the dishwasher fixed to the underside of the benchtop using the supplied screws.
• Levelling: Level the dishwasher using the adjustable feet before use.
• Water supply: Connect to the water tap with the supplied inlet hose (approx. 1500mm); water pressure between 0.05 MPa (0.5 bar) and 1 MPa (10 bar).
• Drain: The drain hose (approx. 1500mm) must not be kinked, and the drain connection must be at a height between 400mm and 800mm with a minimum internal diameter of 25mm.
• Electrical supply: 220-240V, 10A earthed power outlet within reach of the approx. 1300mm power cord.
• NaturalDry steam protection: Fit the supplied steam protection foil under the benchtop when installed under a bench, as shown in the installation guide.
• Before first use: Remove all transport protection parts, set the water hardness, fill the salt reservoir with water and dishwasher salt, and fill the rinse aid dispenser.

Warranty coverage

Whirlpool appliances are distributed in Australia by Arisit Pty Limited and are backed by a 2-year manufacturer's warranty, giving you confidence in the quality and performance of every appliance across their range of kitchen and laundry products.

• All Whirlpool appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, ovens, freestanding cookers & microwaves): 2 years — Defects in materials and workmanship, domestic use only

Proof of purchase is required for all warranty claims. To activate your warranty, register your product within 30 days of purchase at whirlpool.com.au. The warranty is transferable to a subsequent owner within the warranty period, provided Whirlpool is notified in writing with the new owner's details.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Replaced or repaired components carry the remaining warranty period or 3 months, whichever is greater

What's not covered

• Incorrect installation or failure to follow manufacturer instructions
• Misuse, accidental damage, neglect, or abnormal use
• Damage from fire, water, vermin, insects, or external electrical faults
• Blockages caused by foreign objects
• Cosmetic damage that does not affect the functioning of the product
• Consumables such as light bulbs, filters, and other wear items
• Unauthorised modifications or repairs
• Commercial use of domestic appliances
• Inadequate or incorrect venting
• Excessive use of cleaning products or cleaning agents

Conditions

• Cooktops, ovens, and rangehoods must be installed by a licensed electrician or gas plumber
• Must be used and maintained in accordance with the Use and Care Guide or Instruction Manual
• Product must be registered within 30 days of purchase at whirlpool.com.au to activate the warranty
• Any transport damage must be reported within 7 days of delivery
• Proof of purchase must be provided with all claims
• The warranty is transferable to a subsequent owner provided Whirlpool is notified in writing within a reasonable time of the sale, with the new owner's name, contact details, place and date of purchase, and model and serial number

Making a claim

Contact Arisit on 1300 762 219 or submit a service request at whirlpool.com.au. For large appliances (refrigerators, dishwashers, washing machines, dryers, cooktops, rangehoods, and ovens), an authorised Whirlpool service technician will be sent to assess the claim. For smaller appliances such as microwaves, you may be asked to bring the product to your nearest authorised service agent. Please have your model number, serial number, and proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The WDFS3R4N is registered on the Australian Government Energy Rating register with a 4 Star rating and an energy consumption of 230 kWh per year, under registration numbers ADW1055 and ADW1308 for the Stainless Steel and Black Stainless Steel models and ADW1072 and ADW1311 for the White model. Under the Water Efficiency Labelling and Standards (WELS) scheme each colour holds a 5 Star water rating at 11.5 litres per wash on the Eco 50°C programme, with registration numbers D02853 (WDFS3R4NIXAU), D02852 (WDFS3R4NBSAU) and D02868 (WDFS3R4NWEAU) and licence number 0367.

The Eco 50°C cycle is tested to AS/NZS 2007. Although it takes longer than other cycles, it uses less energy, and pre-rinsing dishes before loading is not needed for any programme. Programme durations are estimates and can vary with water temperature and pressure, load size, detergent and selected options.

The built-in water softener regenerates itself with dishwasher salt once every 4 to 6 Eco cycles at hardness level 3, using about 3 litres of water and up to 5 extra minutes per regeneration. Whirlpool appliances are distributed in Australia by Arisit Pty Limited, 40-50 Mark Anthony Drive, Dandenong South VIC 3175.

• Dishwasher: 1 x WDFS3R4N 60cm freestanding dishwasher in the selected colour.
• Racks: Lower rack, upper rack with double cup shelves and rubber mat for glass protection, and removable cutlery rack.
• Steam protection foil: For protecting the benchtop when NaturalDry opens the door.
• Installation fittings: Fixing screws for securing the dishwasher under a benchtop.
• Documentation: Daily reference guide and installation guide.

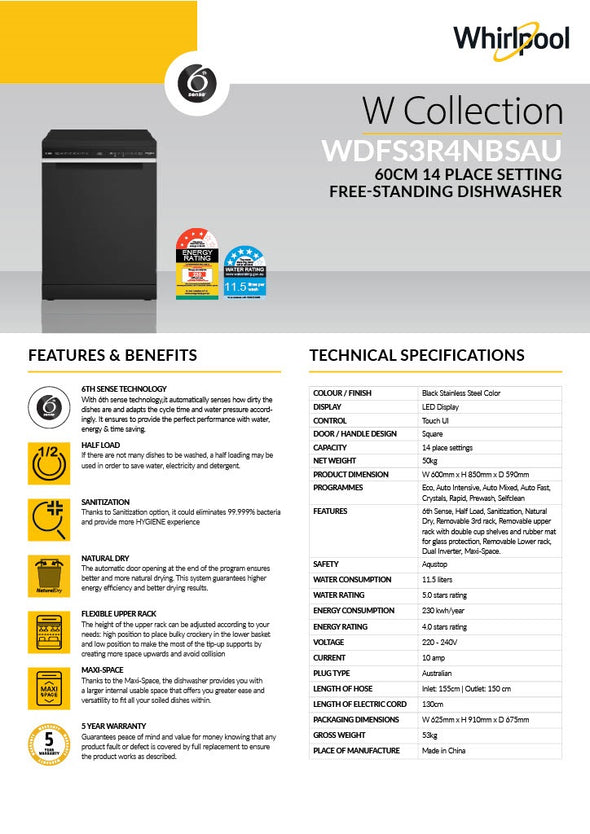

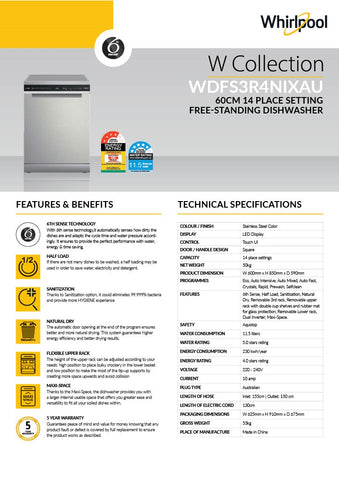

• WDFS3R4NIXAU SPECIFICATION SHEET (PDF)
