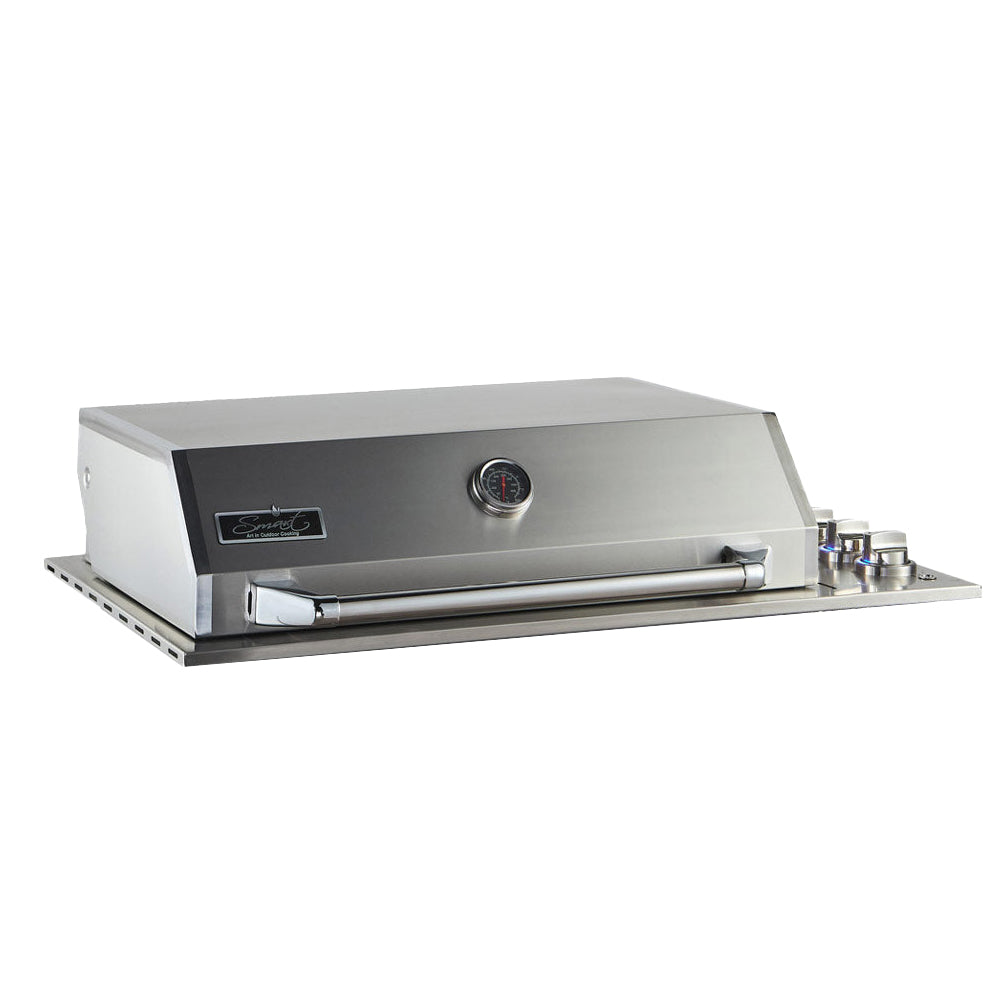

Smart 4000DG-SL 4-Burner Drop-In Gas BBQ With Slimline Hood

• Stylish drop-in design: the BBQ drops down into the benchtop of your cabinetry for a modern, classy finish, and the slimline enclosed hood gives a low-profile look.

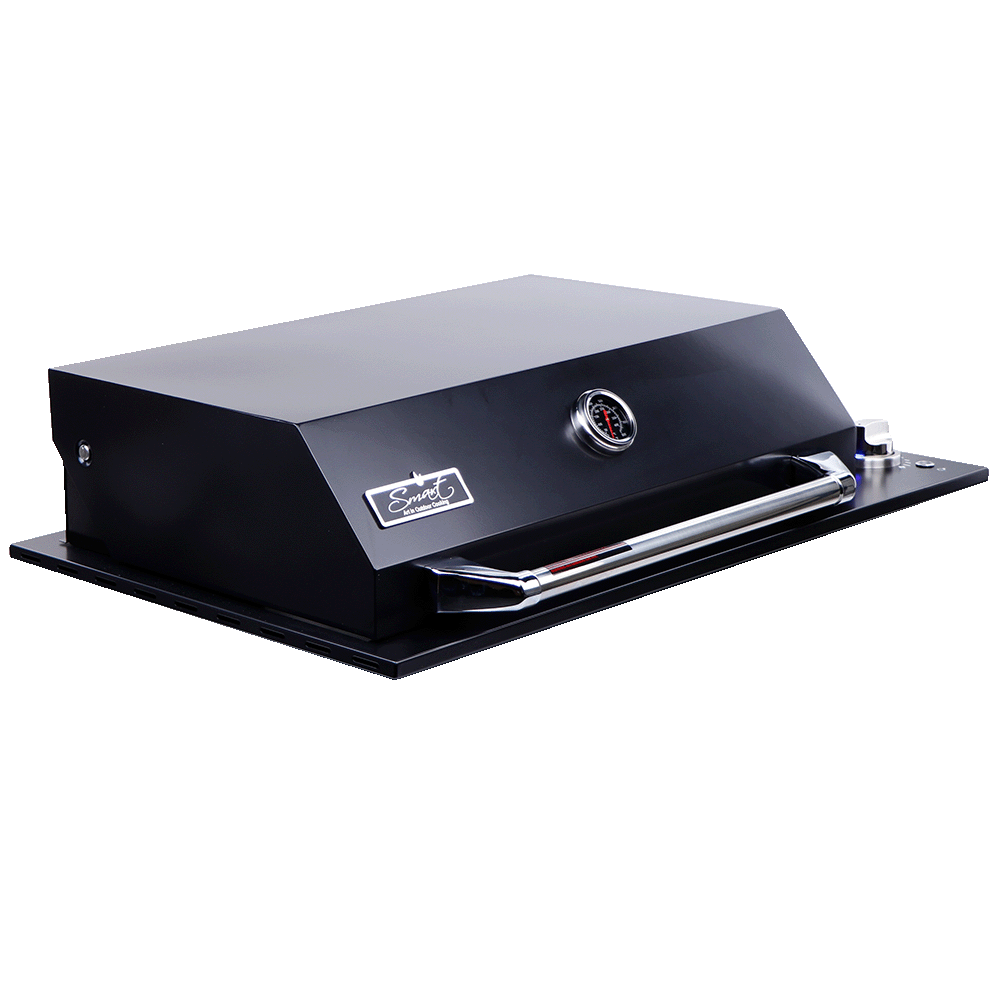

• Slimline double-skinned hood: the double layer improves insulation and heat retention with the hood closed, for better efficiency and a steadier temperature when roasting.

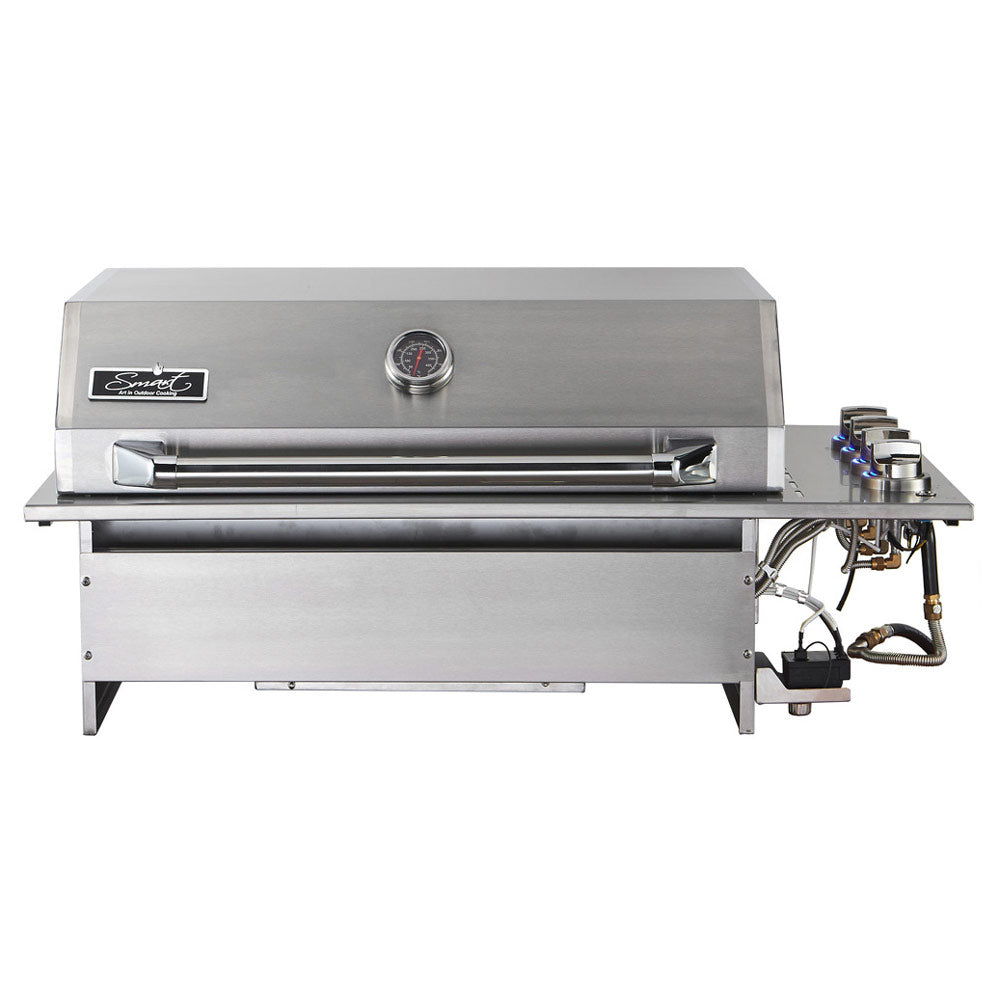

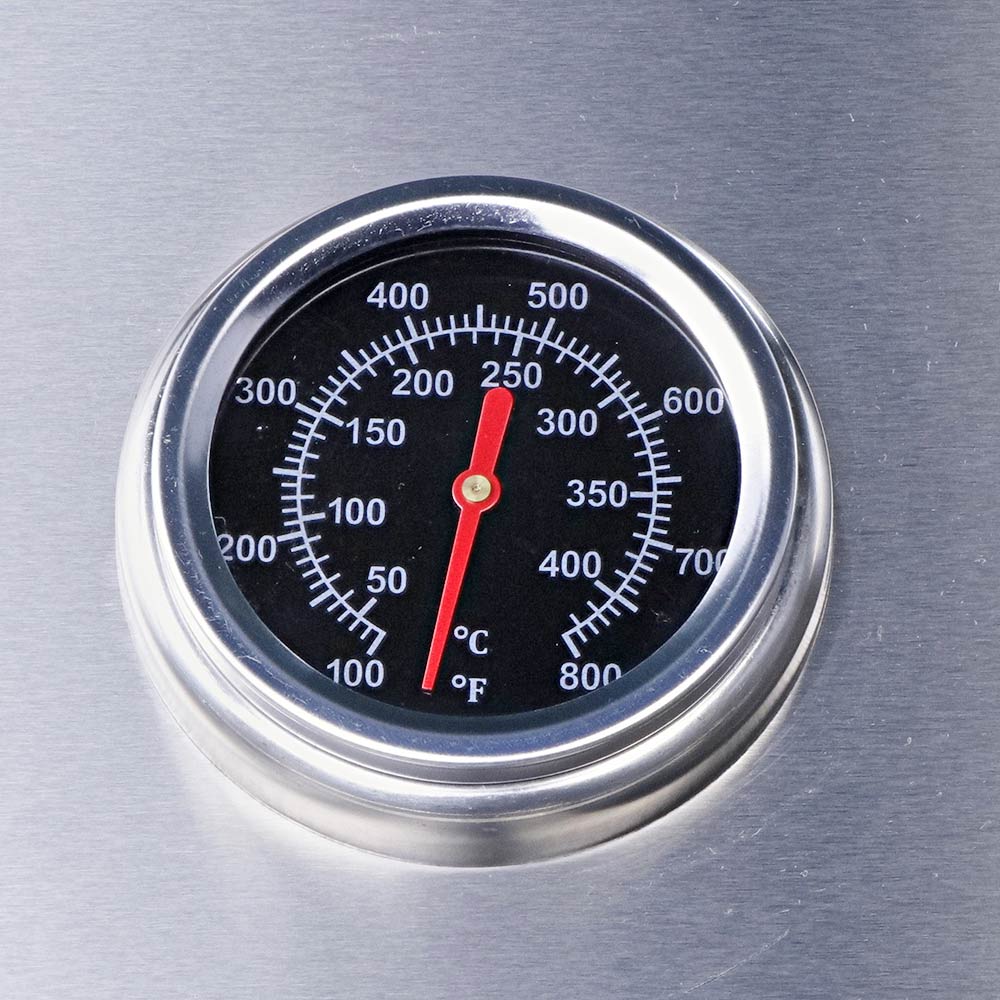

• Integrated thermostat: a thermostat built into the hood gives an accurate reading of the temperature inside the BBQ cavity when cooking with the hood closed.

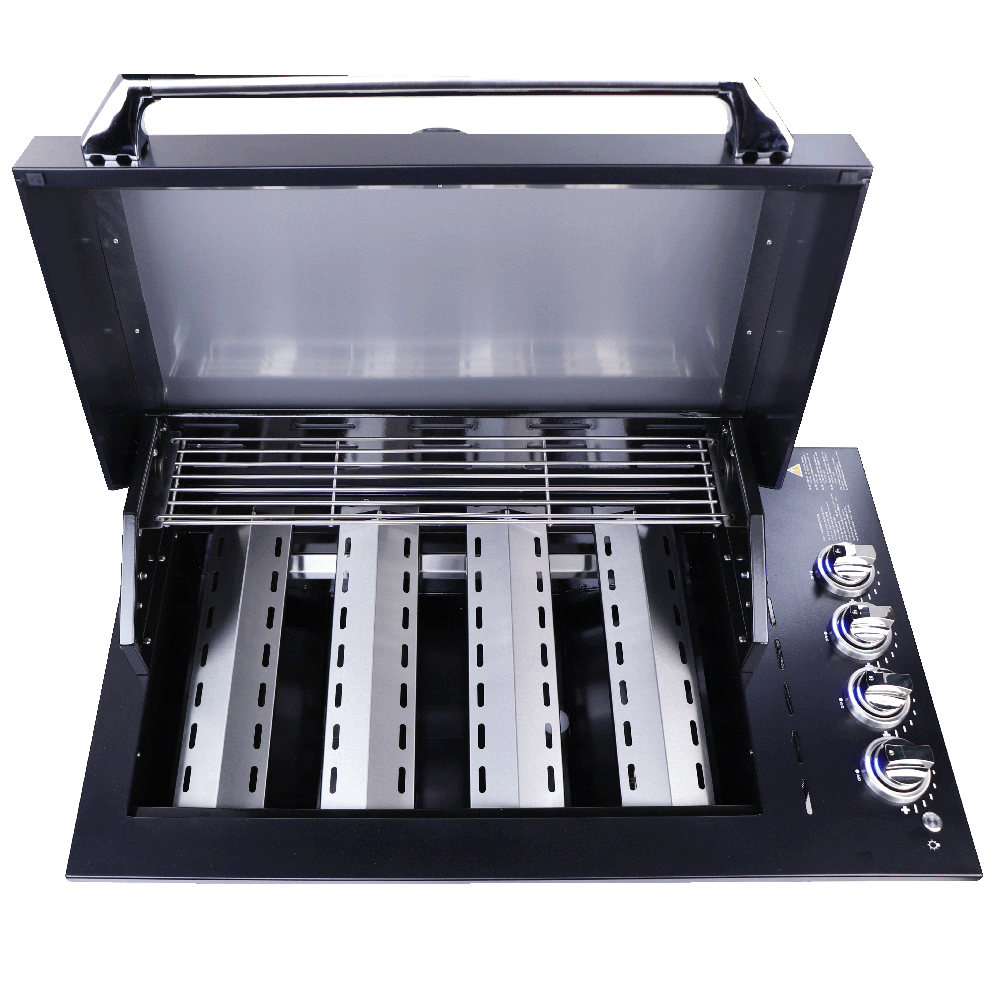

• High quality burners: 4 x 304 stainless steel tube burners with 304 stainless steel flame tamers help spread heat evenly while reducing flare-ups.
• 304 grade stainless steel: the hood, control panel and chassis are 304 stainless steel, which is very resistant to heat and salt to help avoid corrosion and decay in the harsh Australian climate.

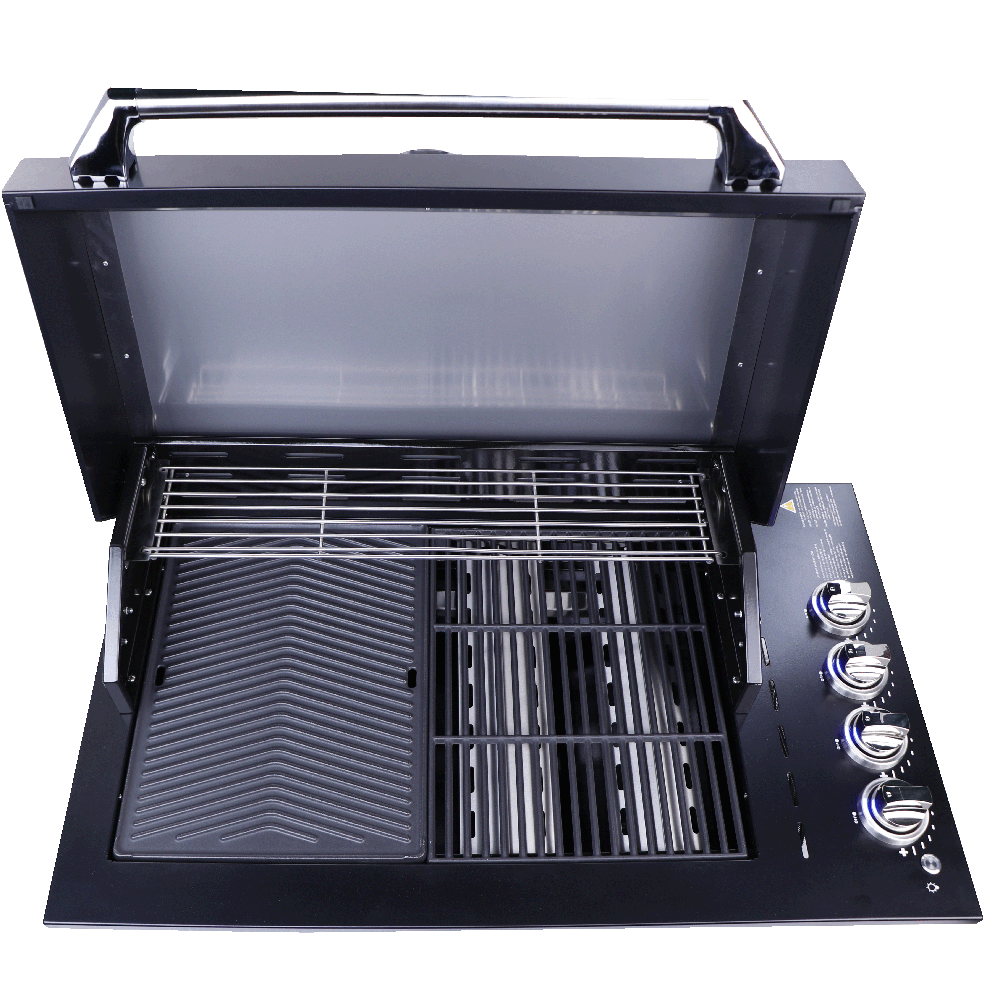

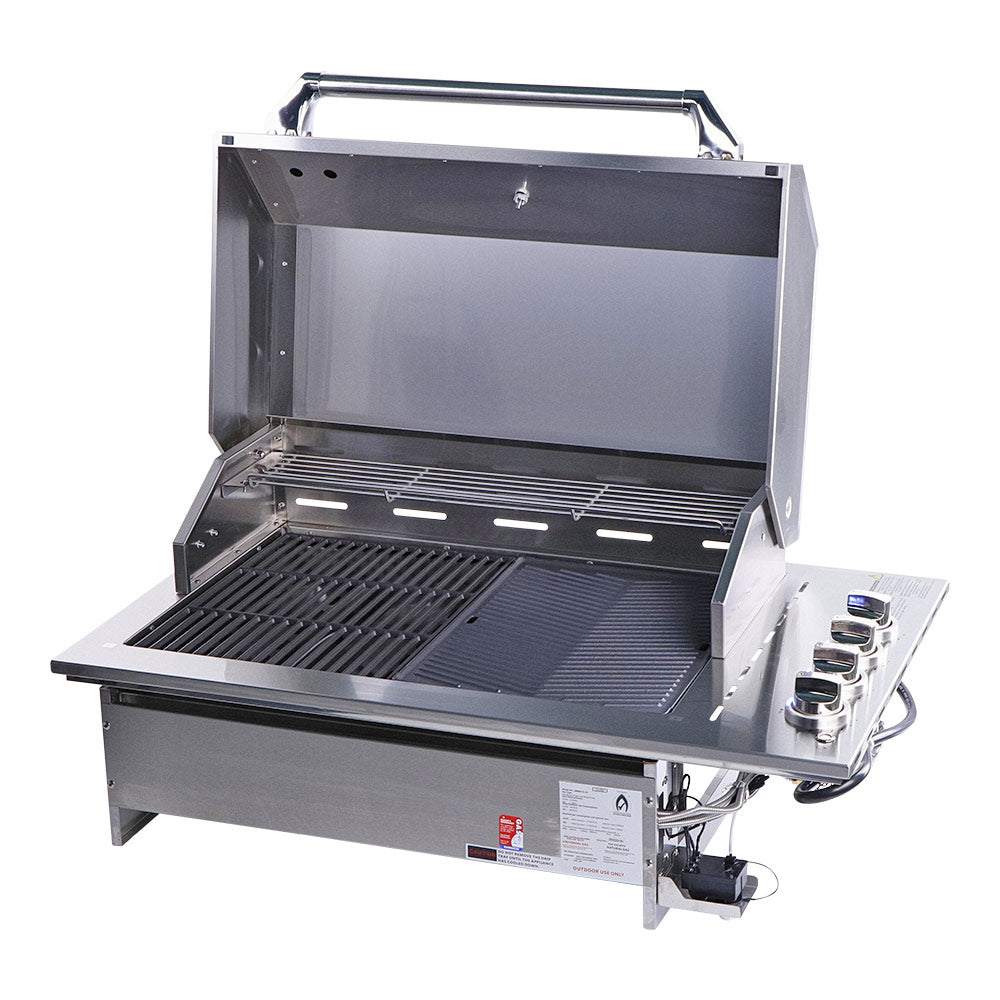

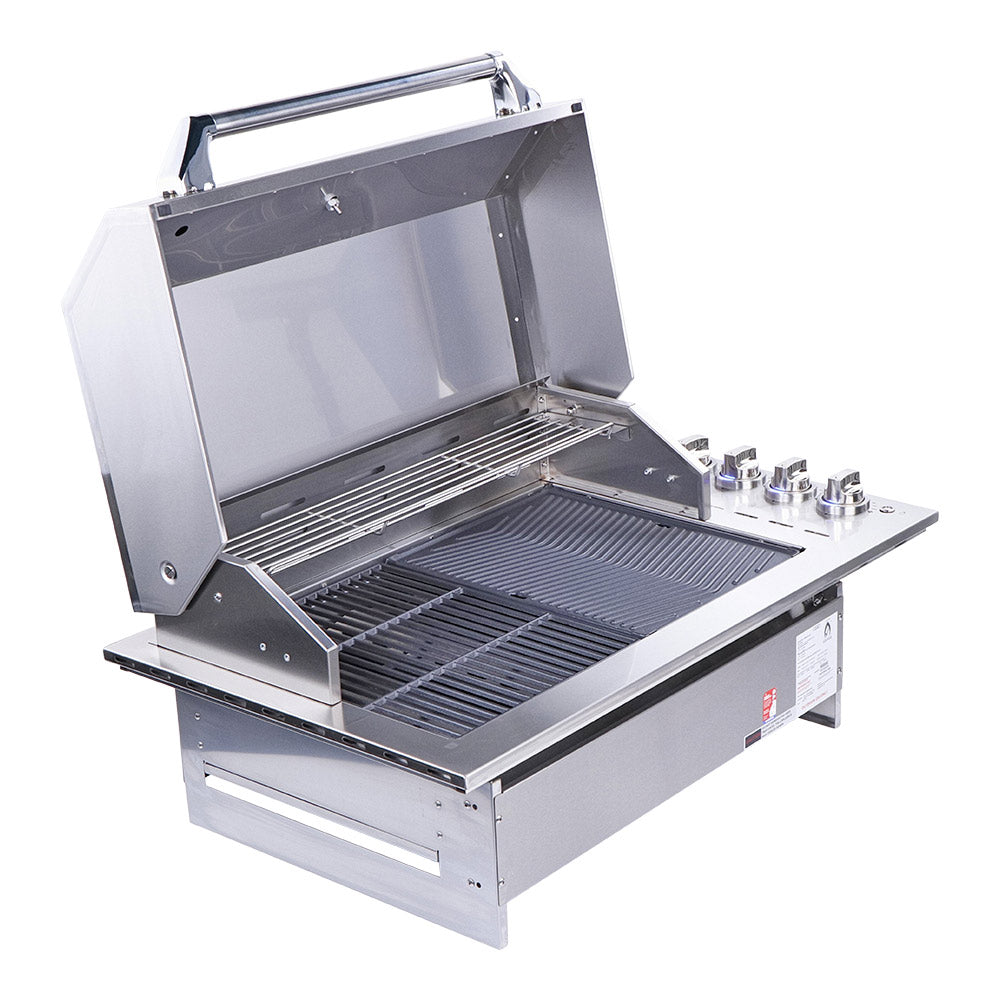

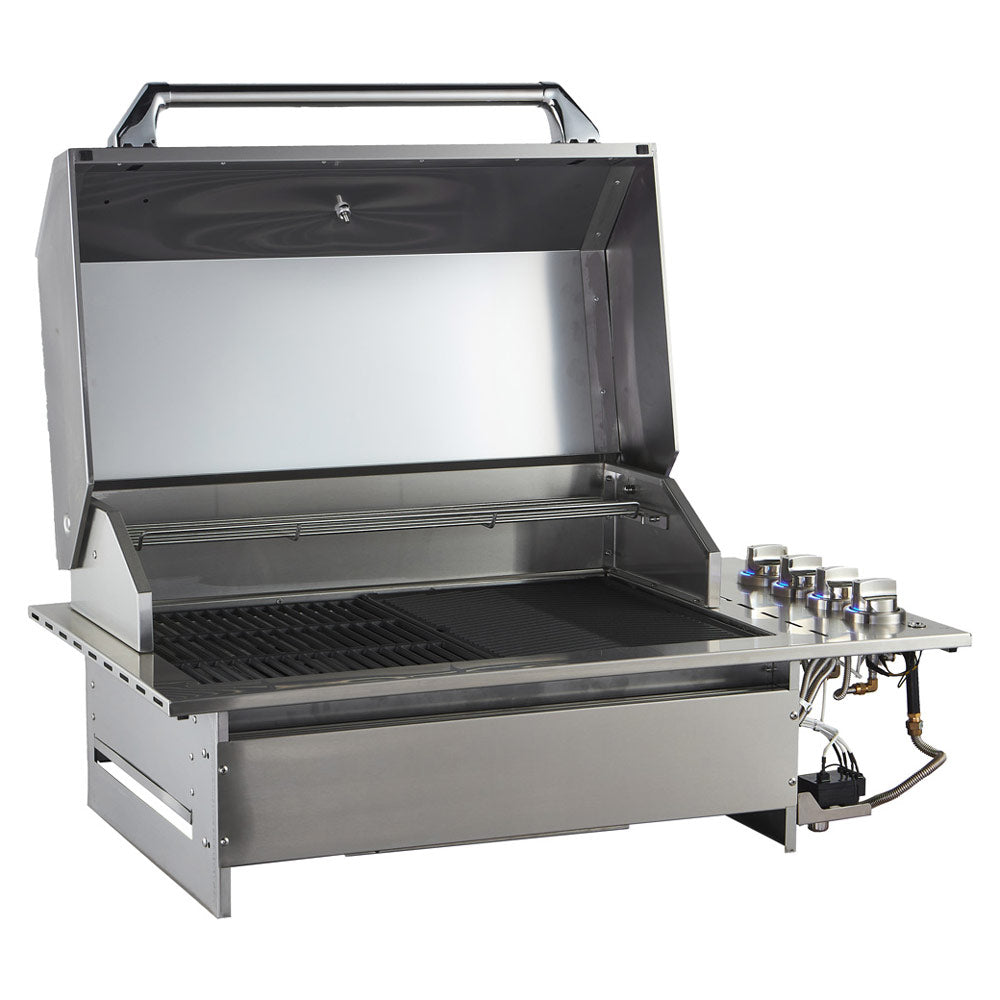

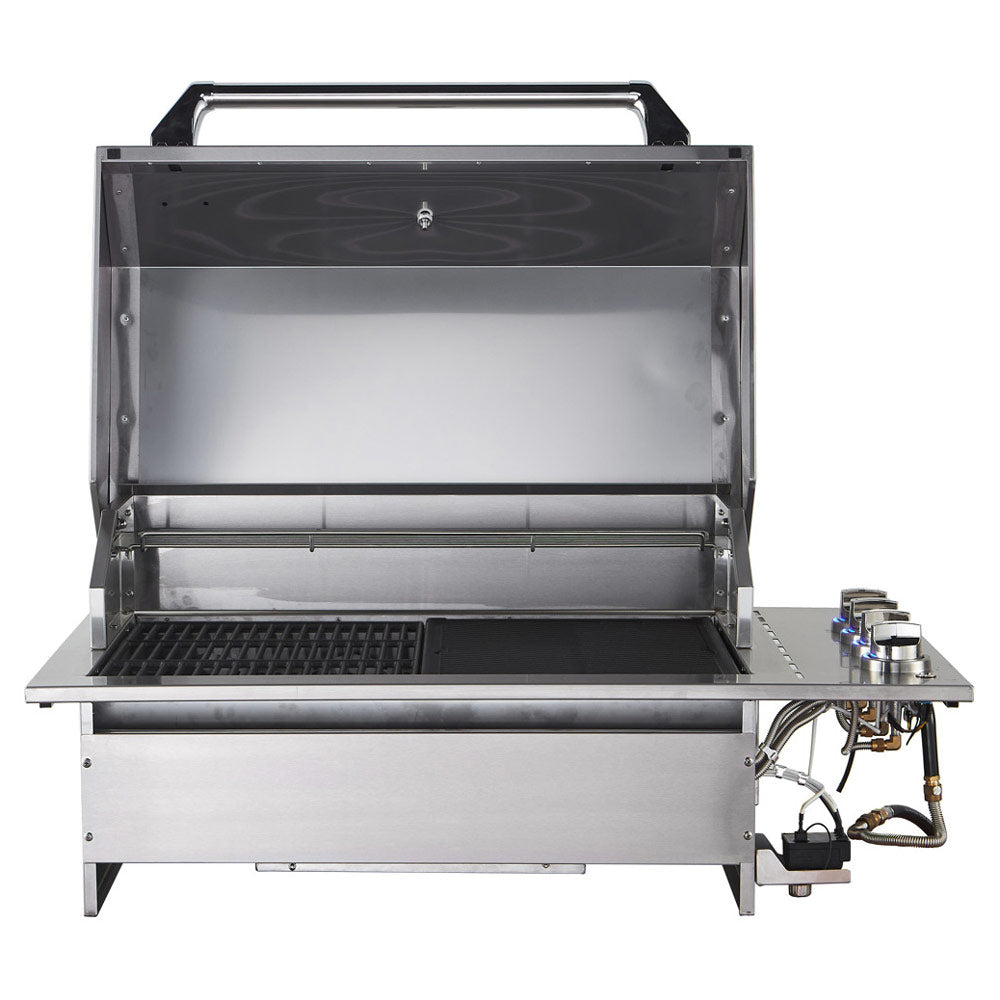

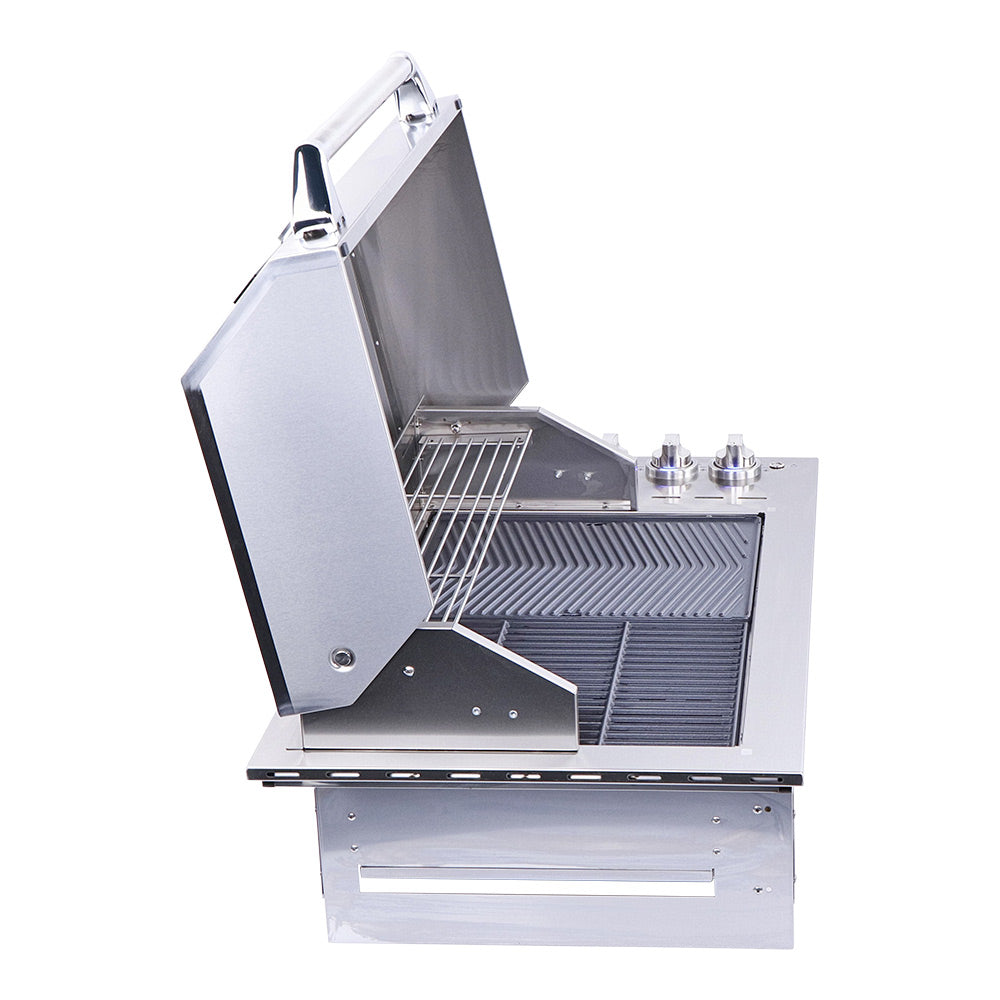

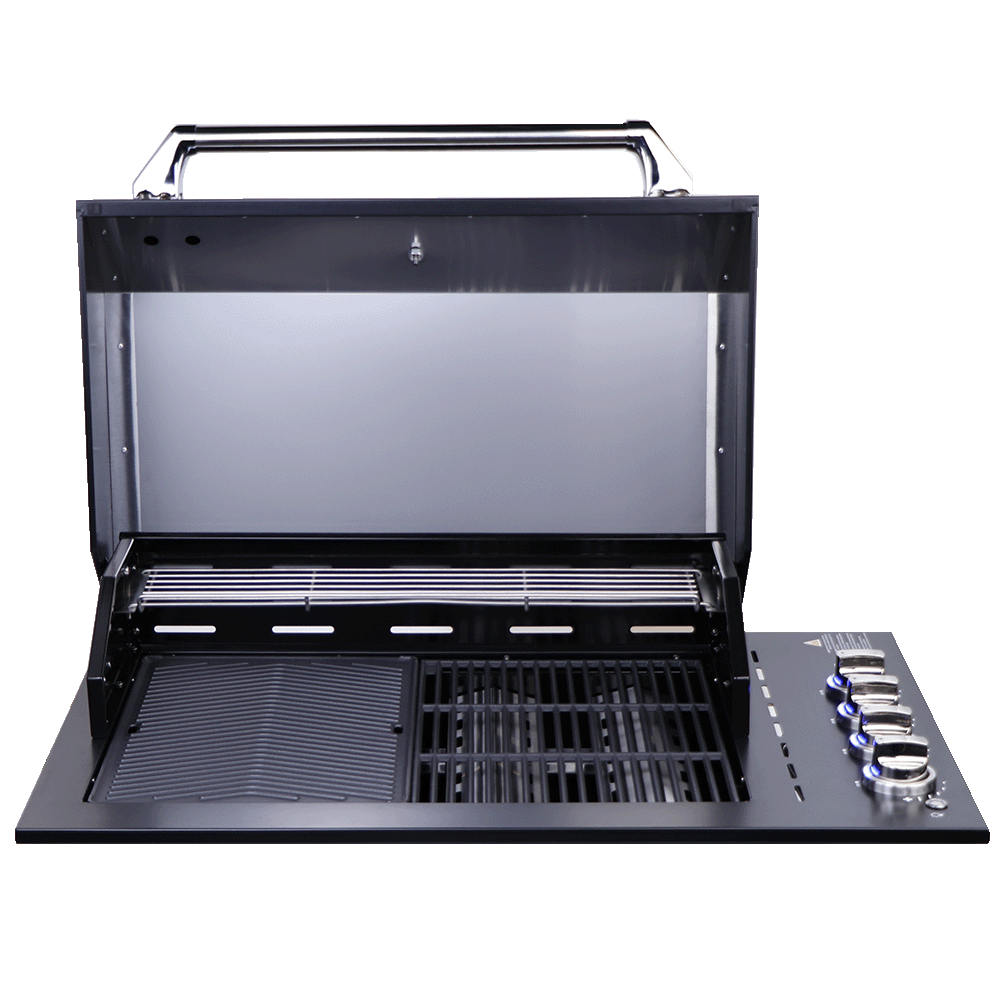

• Two cast iron grill plates: one open grill plate and one solid flat plate that reverses for a smooth or ridged finish, both 350mm x 450mm, for even heat and good heat retention when searing and grilling.
• Stainless steel warming rack: extra space inside the BBQ to keep cooked food warm.
• Comfort electronic ignition: light the burners without matches or lighters.
• Ergonomic side controls: the controls sit to the side of the BBQ to maximise the grilling surface, with power level indicators.

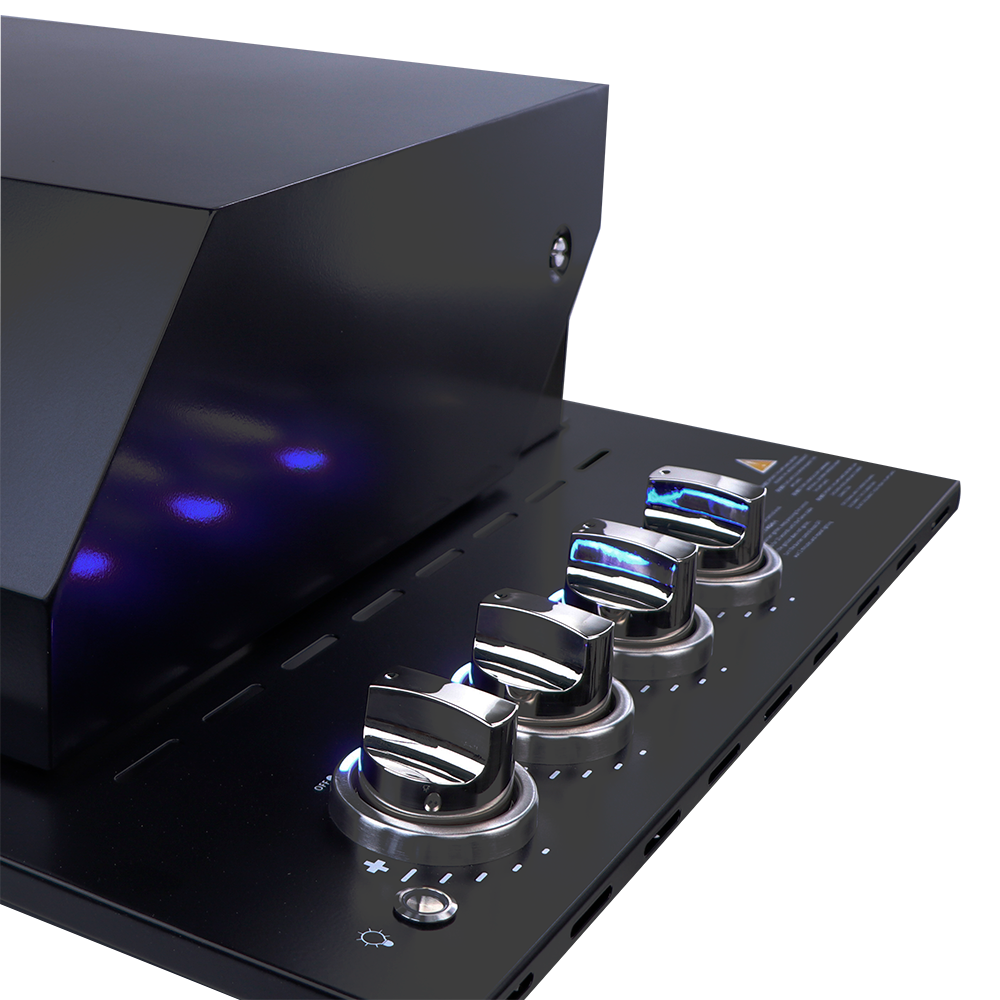

• Blue LED control lighting: each control knob has a long-lasting, energy efficient blue LED light for easy night-time cooking.
• Oil management system: fats and oils drain into a removable oil tray at the front, and the draining channels can be reached for cleaning.
• LPG ready, convertible to natural gas: supplied with LPG jets fitted and convertible to natural gas by a licensed professional using a conversion kit (sold separately).
• Indoor and outdoor certified: certified for outdoor installation (AGA 9106) and indoor installation (IAPMO GMKI0936), and suitable for enclosed alfresco areas with a range hood and optional interlock.

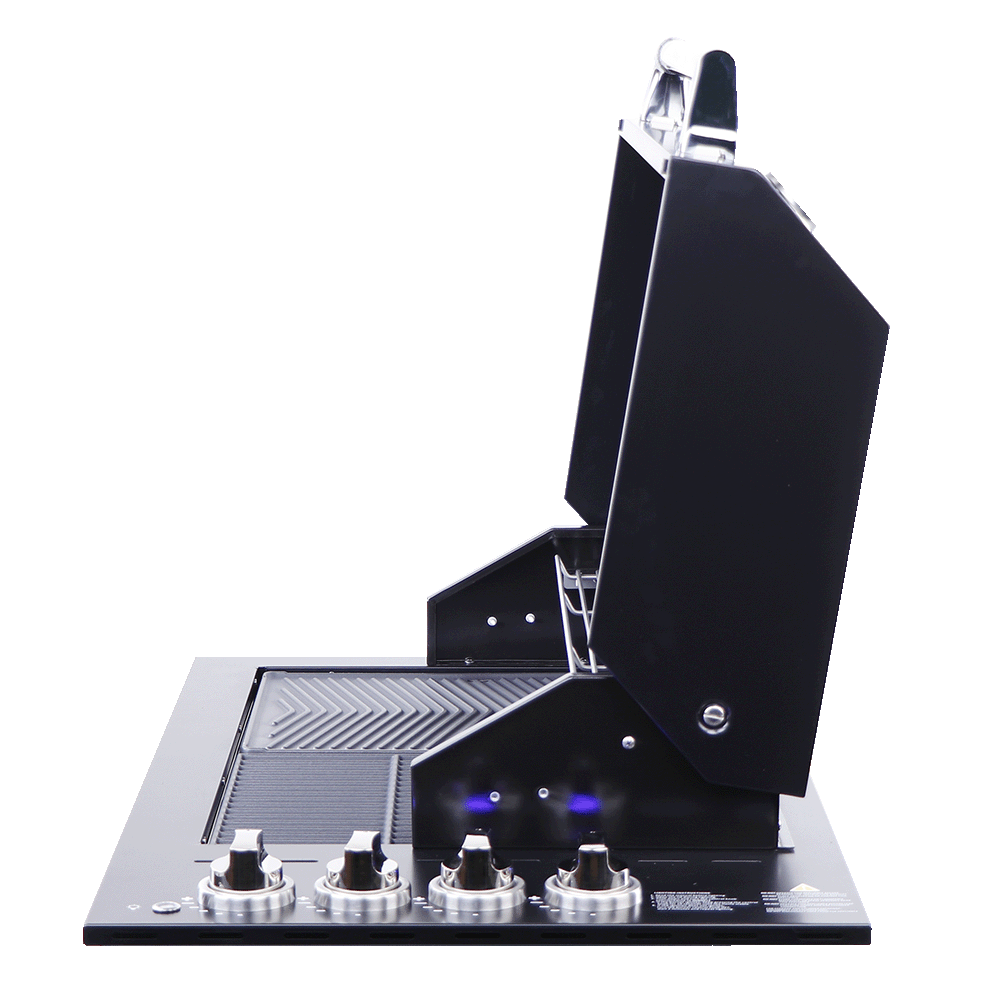

• Burner control: four side-mounted control knobs with power level indicators set each burner independently, and each knob is lit with a blue LED.
• Lighting the BBQ: open the lid and check every knob is off, then push down and turn a knob anticlockwise to HIGH. The Comfort electronic ignition lights the burner, and you hold the knob for a few seconds. Never light the burners with the lid closed.
• First use: light all the main burners and run them on HIGH for 15 minutes with the lid closed to heat clean the internal parts and dissipate odour from the finish. Some colour change in the cooking area is normal.
• Roasting with the hood closed: the double-skinned hood holds heat and the integrated thermostat shows the temperature inside the cavity. With the hood closed and all burners on, keep them on the LOW flame position.
• Open grill plate: for direct-heat grilling of steaks, sausages, chops and vegetables.
• Solid flat plate: for flat-top cooking such as eggs, onions, seafood and burgers, and it reverses for a smooth or ridged finish.
• Warming rack: moves cooked food to a spot above the heat to keep it warm while you finish the rest.
• Fuel setting: ready for LPG out of the box and convertible to natural gas by a licensed gas fitter following the user manual.
• Safety note: the BBQ does not have flame failure safety shut-off. Do not use charcoal or briquettes in the BBQ.

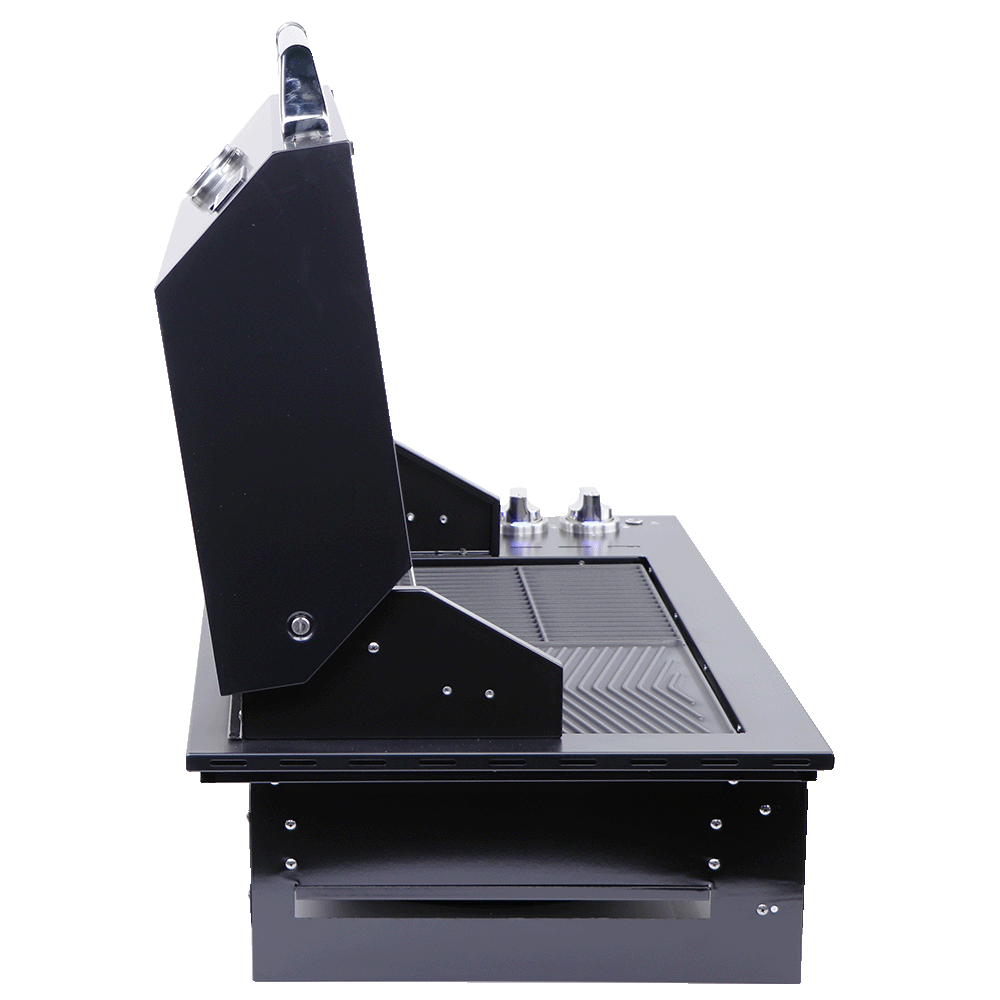

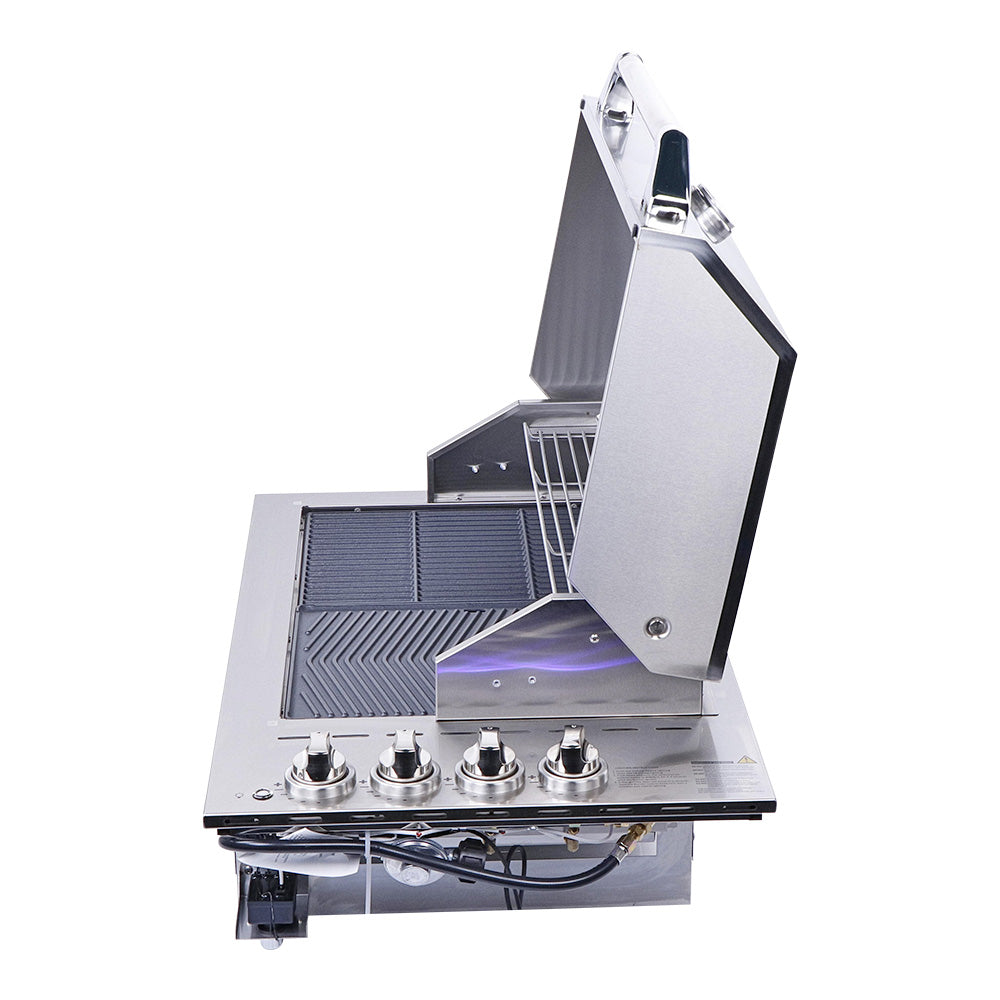

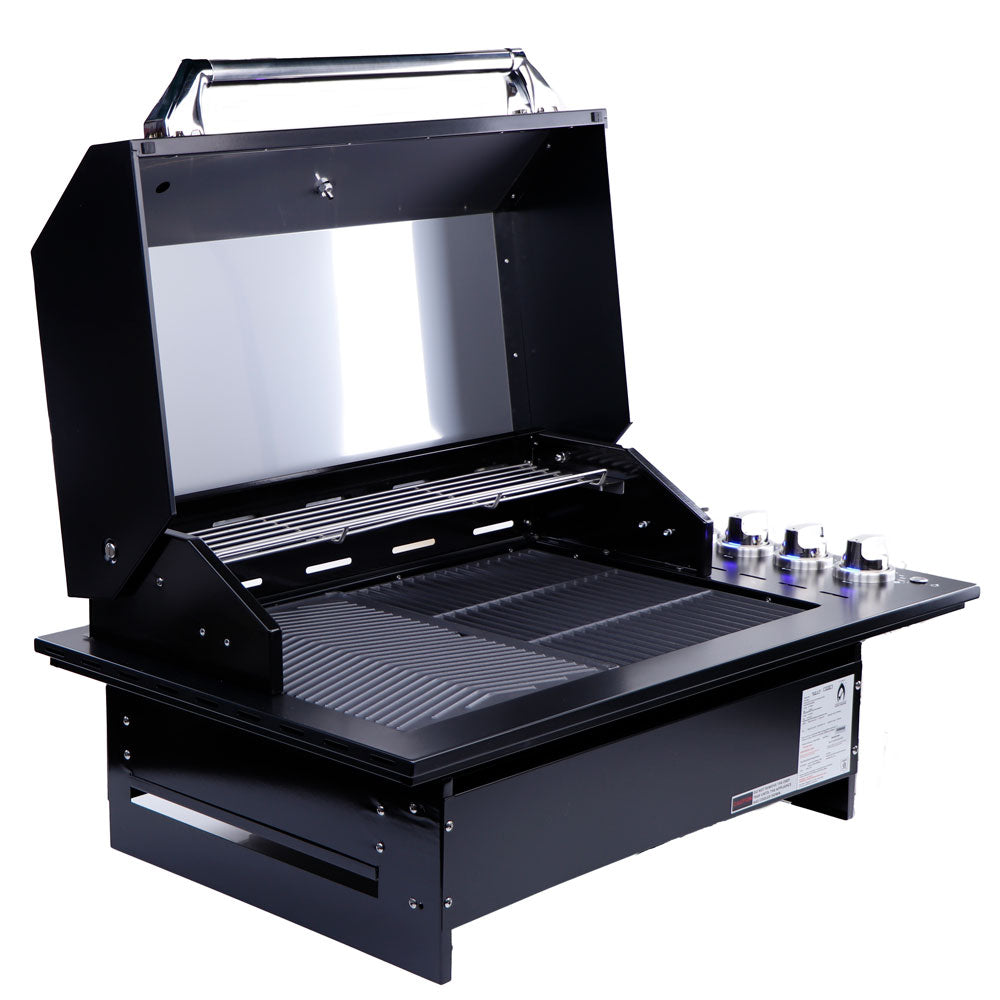

• Models: 4000DG-SL-SS (stainless steel), 4000DG-SL-BLK (black)
• AGA gas certificate number: 9106G (outdoor), IAPMO GMKI0936 (indoor)
• Fuel: LPG as supplied, convertible to natural gas with a conversion kit
• Test point pressure: LPG 2.75 kPa, natural gas 1.0 kPa
• Construction (hood, control panel and chassis): 304 grade stainless steel (black powder coated on the Black model)

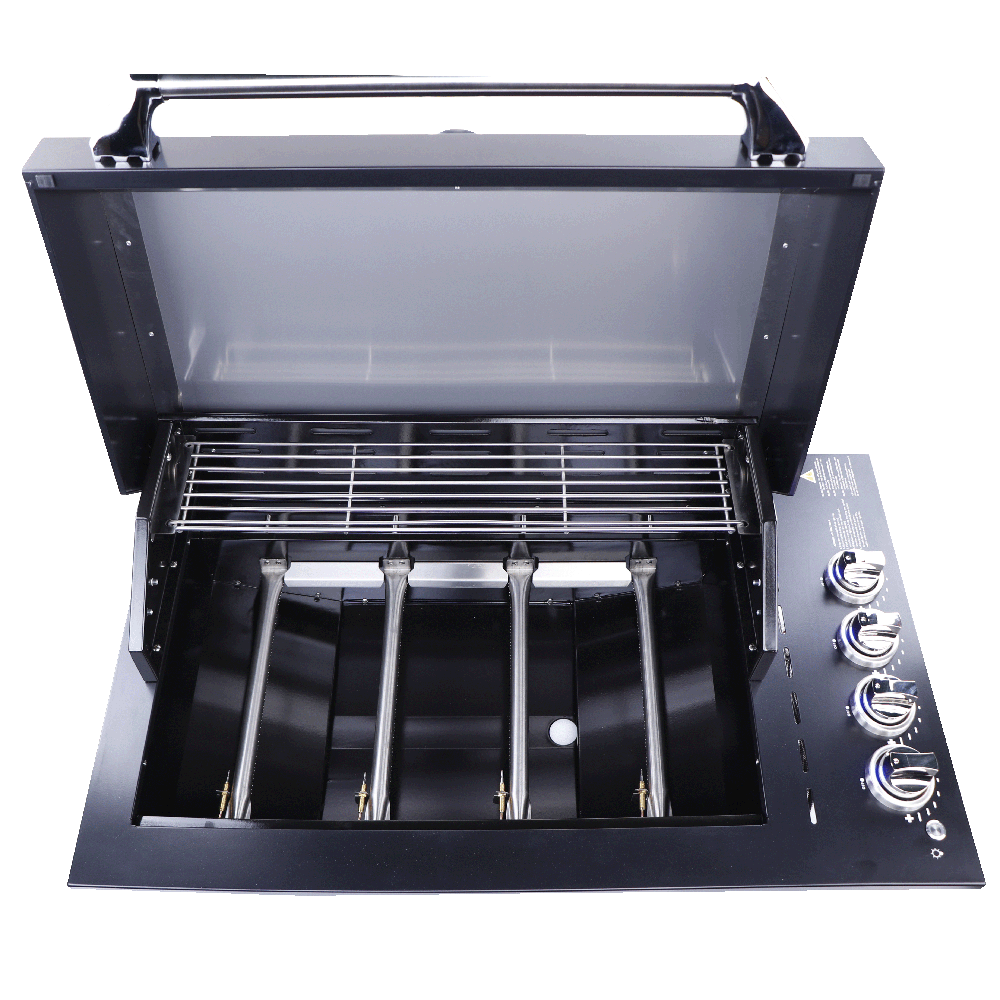

• Tube burners: 4 x 304 grade stainless steel
• Flame tamers: 304 grade stainless steel
• Double skinned hood: Yes
• Total gas consumption (LPG): 48MJ/h (12MJ/h each burner)
• Total gas consumption (natural gas): 44MJ/h (11MJ/h each burner)
• Motorised rotisserie: No
• Control lighting: Blue LED on each control knob
• Internal cavity lighting: No
• Ignition: Comfort electronic ignition
• Electrical: AC adaptor, input 230-240VAC 50Hz, output 12VAC 5000mA
• Flame failure safety shut-off: No
• Grill plates: Cast iron, 1 x open and 1 x solid flat, each 350mm x 450mm
• Total cooking area: 750mm x 450mm
• Maximum gas cylinder size: 9kg
• Installation: Drop-in, certified for outdoor and indoor installation. A range hood is required indoors and in enclosed alfresco areas, with an optional interlock system.

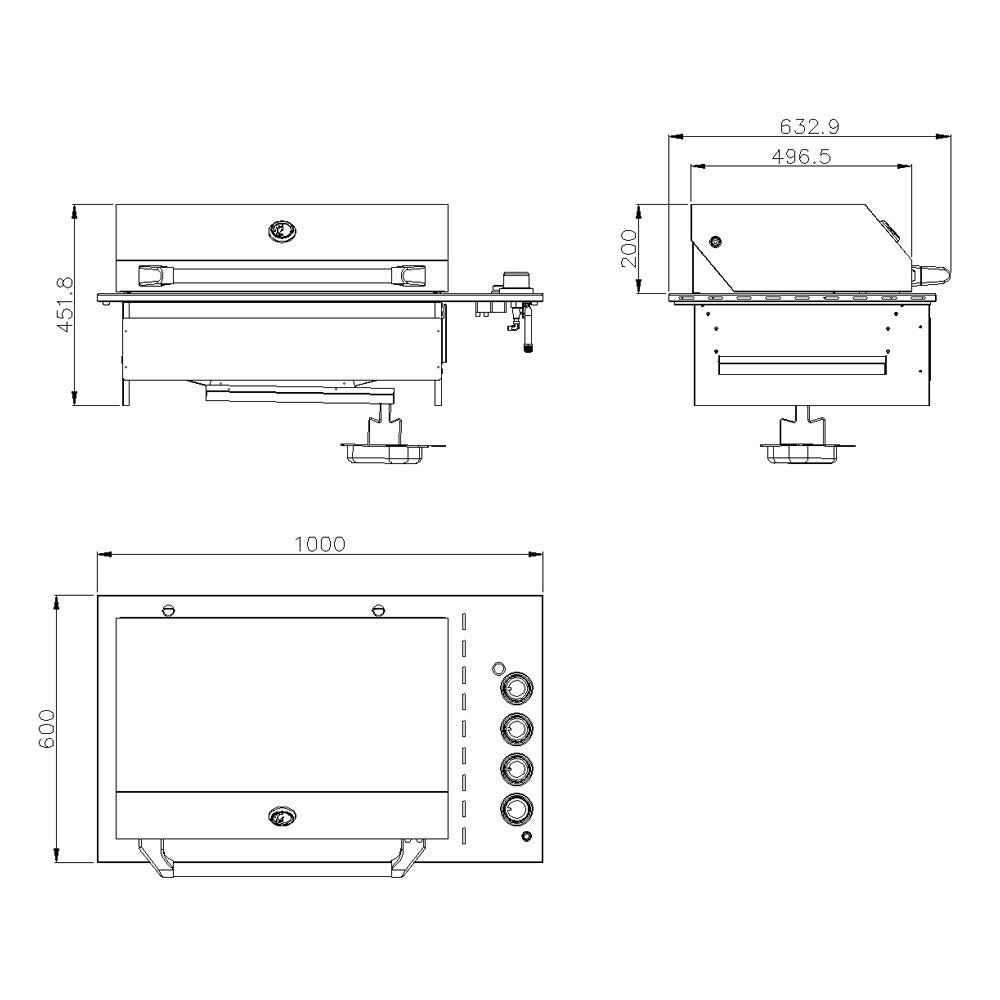

• Cut-out: cut a 980mm wide x 580mm deep opening with at least 390mm of clearance below the benchtop. Do not cut your cabinetry or benchtop until you have the BBQ on site and have measured it, as the cut-out sizes are indicative only.
• Benchtop: the counter must be at least 700mm deep and support the weight of the BBQ. A minimum thickness of 20mm is recommended. Engineered stone benchtops are permitted if they tolerate temperatures up to 120°C.
• Compartment: the installation compartment must be non-combustible (for example brick, granite, marble, Hardiplank or Villaboard on a metal or brick frame). A non-combustible barrier panel must sit 30 to 35mm below the base of the BBQ, and the front wall of the compartment needs ventilation openings that are never blocked.
• Clearances: allow 50mm at the front and 70mm at the rear. For indoor installation, keep combustible materials at least 1500mm overhead, 250mm at the sides and 200mm at the rear.
• Cabinetry access: the cabinetry must allow front access underneath the BBQ to clean and remove the oil tray.
• Gas cylinder: do not place the gas cylinder directly underneath the BBQ. If it is stored in the cabinet it needs its own divided zone, isolated by a non-combustible panel, and the maximum cylinder size is 9kg.
• Gas connection: installation and any natural gas conversion must be done by a licensed gas fitter or plumber. The supplied regulator is fitted for natural gas (set to 1.0 kPa) and a test point adaptor is used for LPG (set to 2.75 kPa). The conversion kits do not include the female bayonet fitting for wall connection, which your gas fitter or plumber must supply.
• Power: the supplied transformer connects to a 230-240V power point and must be placed well away from the BBQ. The ignition also needs 1 x AA battery, which is not included.
• Range hood: for indoor installation and enclosed alfresco areas, fit a commercial style range hood or extraction fan moving at least 2000m³ of air per hour, with the filter no closer than 1200mm to the cooking surface (1200mm minimum to 1600mm maximum if an interlock is fitted).

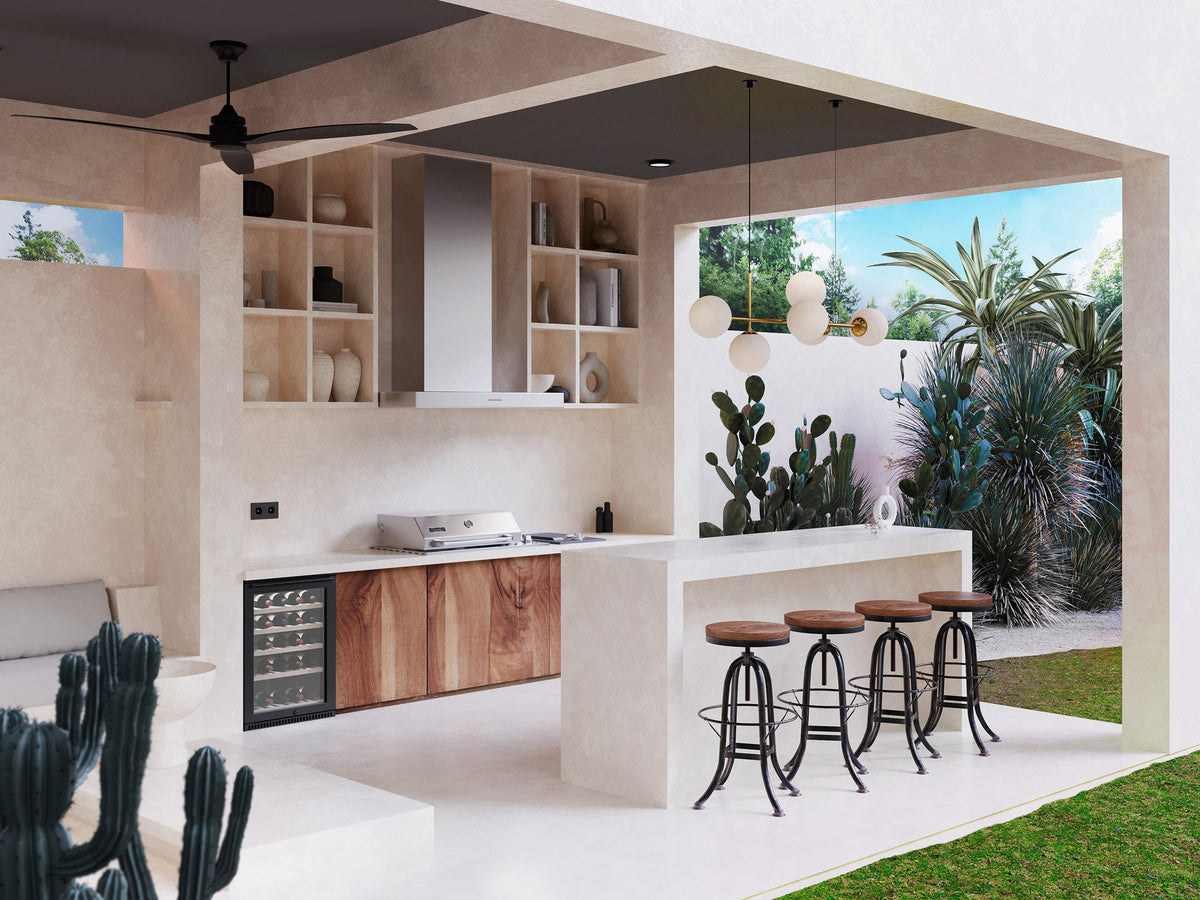

• Outdoor and alfresco areas: the BBQ is certified for both outdoor (AGA 9106) and indoor (IAPMO GMKI0936) installation. Outdoors it needs natural ventilation, and an enclosed alfresco must meet the manual's opening requirements, with an interlock recommended.
• User manual: read the user manual thoroughly before installing or using the BBQ.

Warranty coverage

Smart is a proudly Australian-owned and operated brand distributed by Arisit Pty Limited, offering a premium range of gas BBQs, electric BBQs, alfresco rangehoods, pizza ovens, and outdoor refrigeration. All Smart products are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every product.

• Built-in & freestanding gas BBQs: 3 years — Parts and labour
• Wall mounted electric BBQ: 3 years — Parts and labour
• Alfresco rangehoods: 3 years — Parts and labour
• Rangehood baffle filters: Lifetime — Against defects in materials and workmanship
• Pizza ovens: 2 years — Parts and labour
• Drinks chillers & wine fridges: 3 years — Parts and labour

Proof of purchase is required for all warranty claims. Products must be inspected for damage prior to installation. BBQ covers and other accessories are not included in the product warranty.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products or parts within the warranty period
• Parts and labour costs within the applicable warranty period
• Lifetime coverage on rangehood baffle filters against manufacturing defects

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, accidental damage, or neglect
• Normal wear and tear including rust caused by inadequate maintenance or cleaning
• BBQ covers and accessories
• Damage caused by power surges or incorrect gas or electrical supply
• Repairs or modifications carried out by unauthorised parties
• Scratches, dents, or cosmetic damage identified after installation

Conditions

• Gas BBQs must be installed by a licensed gas plumber
• Electric BBQs and rangehoods must be installed by a licensed electrician
• Flexible ducting must not be used for rangehood installation — semi-rigid or solid ducting required
• Must be used and maintained in accordance with manufacturer instructions
• Products must be inspected for damage prior to installation
• Register your product at smartbbqs.com.au/pages/product-registration
• Proof of purchase must be provided with all claims

Making a claim

Contact Smart BBQ on 03 9768 0866 or via the contact form at smartbbqs.com.au/pages/contact. For warranty claims, contact Arisit on 1300 762 219 or email arisitwarranties@arisit.com. Please have your proof of purchase and product serial number ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

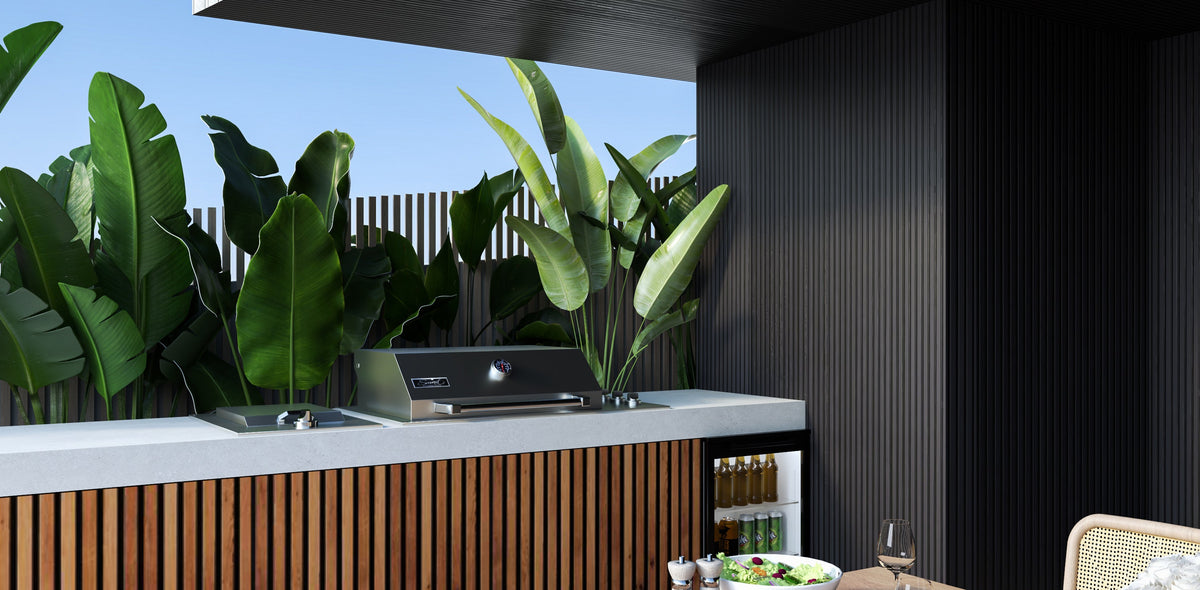

The 4000DG-SL is designed for people building an outdoor kitchen who want the BBQ to sit flush with the benchtop rather than stand above it. The slimline hood keeps the lines low, and because it is double skinned it behaves more like an oven when closed, holding a steadier temperature for roasting. The hood thermostat takes the guesswork out of those longer cooks.

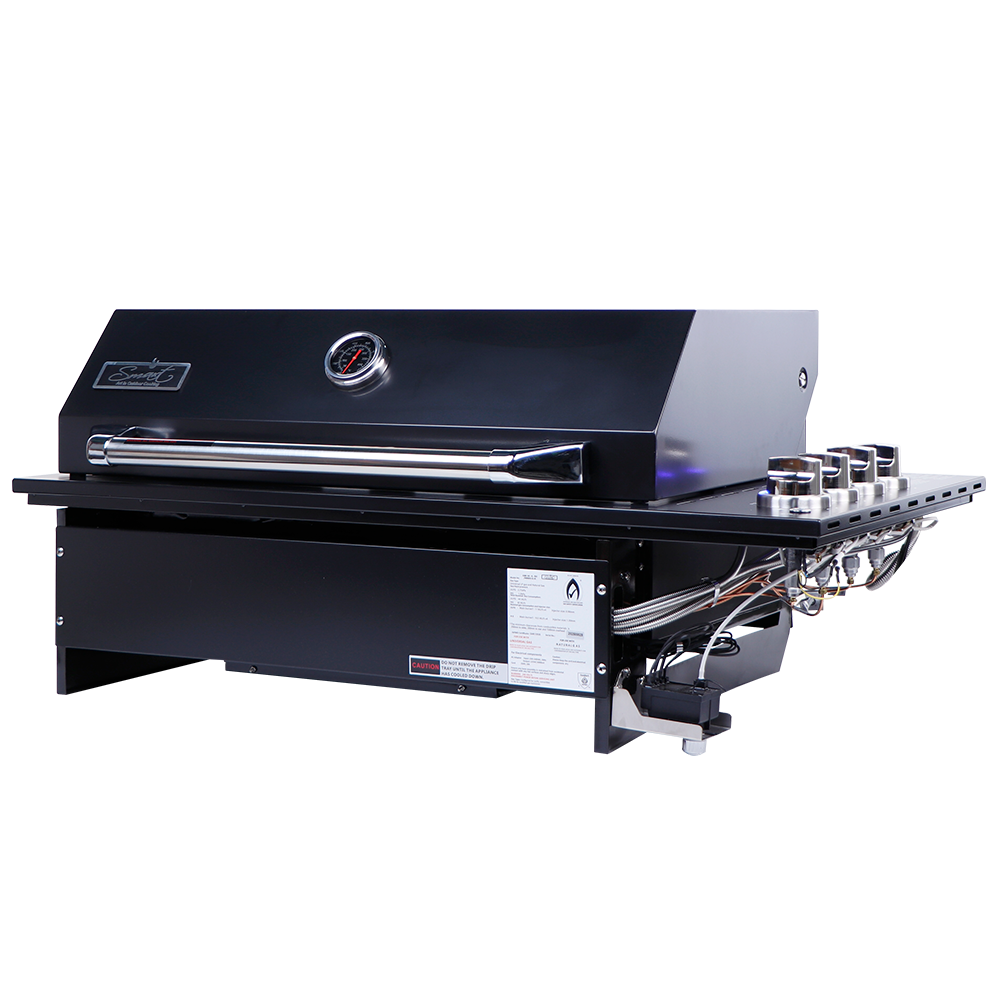

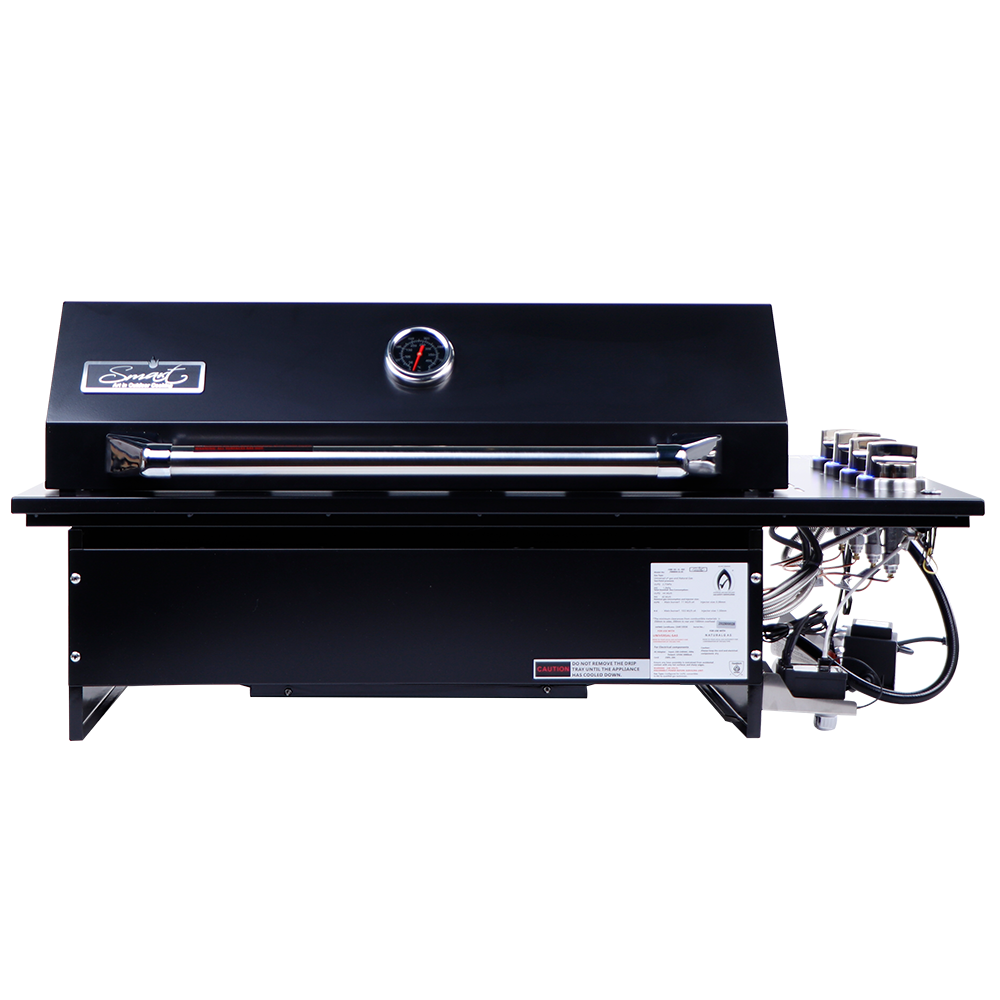

The two finishes use the same BBQ underneath: both are 304 stainless steel with the same burners, plates and controls, and the Black model adds a black powder coated finish. The same spec sheet specifications and cut-out sizes apply to both, so you can choose purely on the look of your outdoor kitchen.

Plan the gas supply early. The BBQ is set up for LPG from the factory and can be converted to natural gas, but the conversion must be done by a licensed gas fitter, and the natural gas conversion kit and a wall bayonet fitting are not included. It also pairs with a range hood and an optional interlock system when installed in an enclosed alfresco area.

• BBQ: 1 x Smart 4000DG-SL 4 burner drop-in gas BBQ with slimline hood (Stainless Steel or Black, depending on the colour selected), with 2 drop-in handles.
• Cast iron open grill plate: 1 x, 350mm x 450mm.
• Cast iron solid flat plate: 1 x, 350mm x 450mm, reversible smooth or ridged.
• Flame diffusers: 4 x stainless steel flame diffusers.
• Warming rack: 1 x stainless steel warming rack.
• Oil tray and holder: 1 x removable oil tray with holder.
• Gas regulator: 1 x LPG gas regulator.
• Transformer and cable: 1 x power adaptor with cable for the ignition and lighting.

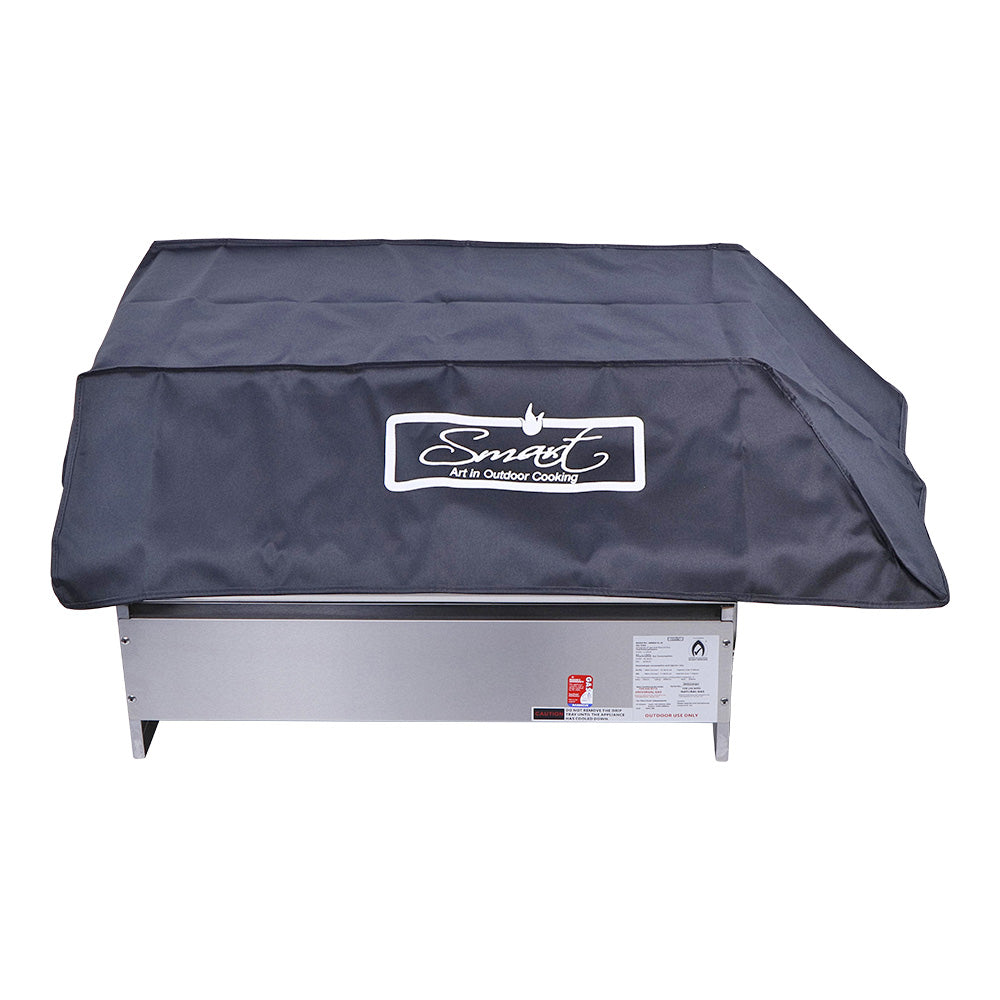

• Cover: 1 x weather-proof cover.

• 4000DG-SL-SS PRODUCT SPECIFICATION SHEET (PDF)
• 4000DG-SL-BLK PRODUCT SPECIFICATION SHEET (PDF)
• SMART DROP-IN BBQ USER MANUAL (PDF)
