Smart CAPIL BBQ Interlock System For Enclosed Alfresco Gas BBQs

• Rangehood link: connects the rangehood extraction to the BBQ gas supply through an electronic gas valve.
• Automatic gas isolation: isolates the gas supply if the mechanical ventilation system fails.
• Lights only when extracting: stops the BBQ being lit until the extractor reaches optimum flow.
• Emergency stop: the control box includes an emergency stop button.
• Status indicators: power and gas valve indicator lights on the control box.
• Simple power: runs from a standard 10 amp GPO.

• Product code: CAPIL
• Barcode: 9351116006754
• Type: Rangehood to gas BBQ interlock system
• Power supply: standard 10 amp GPO for the main power box
• Gas types: natural gas and plumbed LPG (not suitable for portable gas bottles)
• Compatible BBQs: Smart 401WB, Smart 601WB, Smart 4000DG-SL
• Rangehood requirement: high powered rangehood, minimum 2,000 m3/h extraction
• Rangehood height: 1,200 mm minimum to 1,600 mm maximum from the cooking surface to the underside of the rangehood
• Installation: by a licensed gas fitter or plumber

Warranty coverage

Smart is a proudly Australian-owned and operated brand distributed by Arisit Pty Limited, offering a premium range of gas BBQs, electric BBQs, alfresco rangehoods, pizza ovens, and outdoor refrigeration. All Smart products are backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance of every product.

Proof of purchase is required for all warranty claims. Products must be inspected for damage prior to installation. BBQ covers and other accessories are not included in the product warranty.

What's not covered

• BBQ covers and accessories

Making a claim

Contact Smart BBQ on 03 9768 0866 or via the contact form at smartbbqs.com.au/pages/contact. For warranty claims, contact Arisit on 1300 762 219 or email arisitwarranties@arisit.com.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

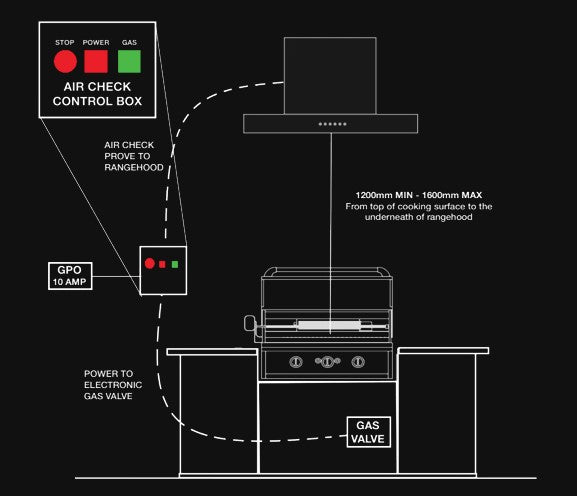

Smart's gas BBQs are certified for installation in an enclosed alfresco, which is an area with a roof and three walls that still has 25% natural ventilation. For these spaces Smart recommends a rangehood to clear smoke and fumes, and an interlock as a further level of safety. The interlock ties the two together, so the BBQ cannot be lit until the extractor is moving enough air.

The system only works with a high powered rangehood. Smart's alfresco checklist calls for at least 2,000 m3 of air per hour and suggests a twin motor rangehood to reach that flow, such as the Smart SMARH120. The rangehood sits 1,200 mm to 1,600 mm above the cooking surface. It suits natural gas and plumbed LPG, but not portable gas bottles.

It is made for Smart's gas BBQs, the 401WB, 601WB and 4000DG-SL. The WM700EW is electric and the PW01 is wood fired, so neither needs it. The system must be installed by a licensed gas fitter or plumber, and needs a standard 10 amp GPO nearby for the main power box. Accessories sit outside the manufacturer's product warranty.

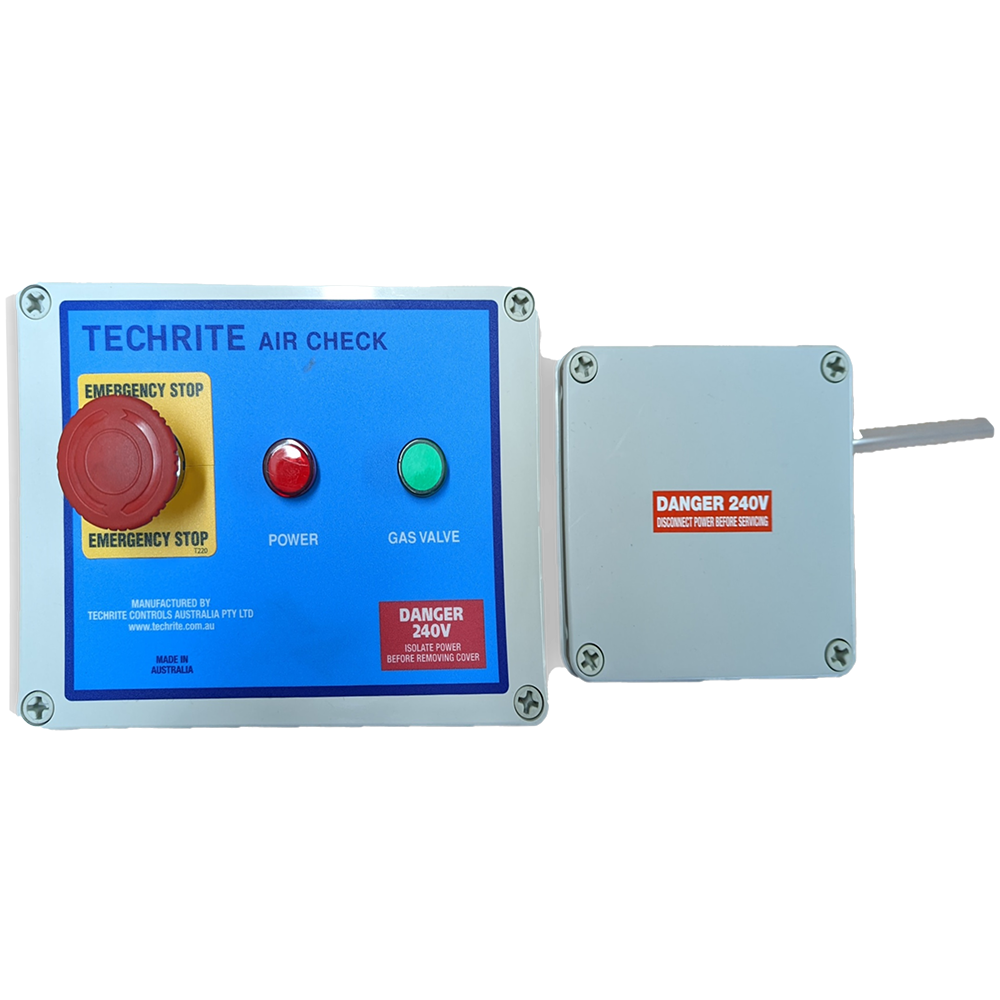

• Interlock system: 1 x Smart CAPIL BBQ Interlock System, with an Air Check control box (emergency stop, power and gas valve indicator lights) and air sensing unit as pictured.
